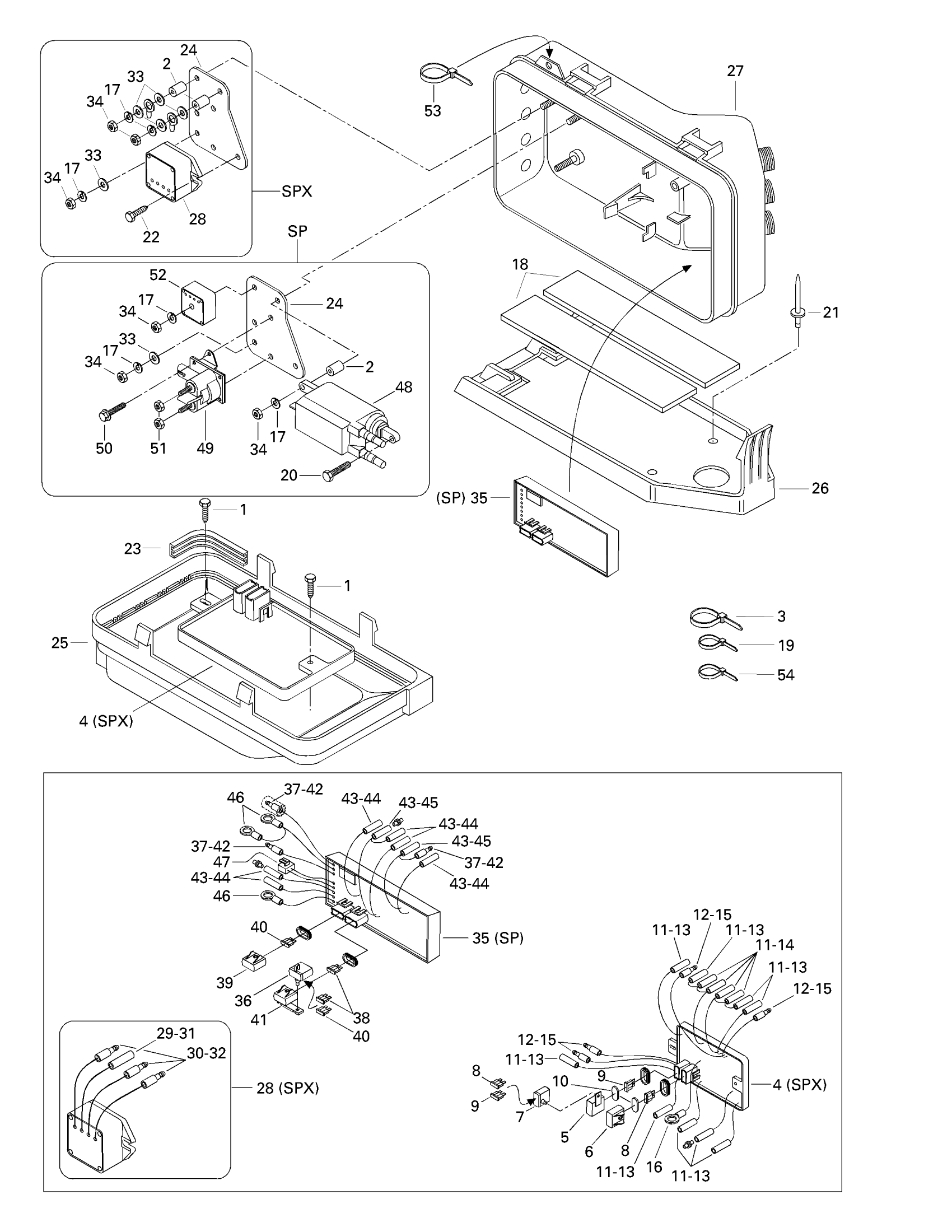

Sea-doo SP, 5879, 1997 Electrical Box Diagram

#

Description
Price

1

Hex. Screw M6.3 x 16

211000012

Unavailable

2

SPACER - Call your local BRP dealership

278000235

Unavailable

Spacer

278000644

Unavailable

3

Tie Wrap 142 mm

293750002

$1.25

4

Electronic Module Ass'y | Includes 4 - 16. SPX 5661/5834.

278000981

Unavailable

5

Fuse Holder Cap

278001326

$7.69

6

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

7

Fuse Holder

278000379

Unavailable

8

Fuse, 5 Amperes | CE

278000344

$3.28

9

Fuse, 15 Amperes

278000343

$3.28

10

Cushion

278000805

$3.28

11

Female Terminal | DS 650 X

278001009

$3.19

12

Male Terminal

278000230

$4.39

13

Insulated Sheath

278001007

$3.58

14

Insulated Sheath

278000770

$7.90

15

Insulated Sheath

278001008

$3.28

16

Open Barrel

278000992

$2.21

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Self Tapping Screw M6.3 x 25

215462550

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.56

22

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

23

Gasket

278000181

Unavailable

24

Mounting Plate

278000615

Unavailable

25

Electric Box Cover

278001082

Unavailable

26

Electric Box Support

278001119

Unavailable

27

Electric Box Base

278001085

Unavailable

28

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

29

Female Terminal | DS 650 X

278001009

$3.19

30

Male Terminal

278000230

$4.39

31

Insulated Sheath

278001007

$3.58

32

Insulated Sheath

278001008

$3.28

33

Stainless Flat Washer M6

234061600

$0.33

34

Hex. Nut M6

232061600

$1.15

35

Electronic Module Ass'y | Includes 35 - 47. SP 5879.

278000964

Unavailable

36

Fuse Holder

278000379

Unavailable

37

Insulation Sheath

278000231

$5.08

38

Fuse, 5 Amperes | CE

278000344

$3.28

39

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

40

Fuse, 15 Amperes

278000343

$3.28

41

Fuse Holder Cap

278001326

$7.69

42

Male Terminal

278000230

$4.39

43

Female Terminal | DS 650 X

278001009

$3.19

44

Insulated Sheath

278001007

$3.58

45

Insulated Sheath

278000770

$7.90

46

Open Barrel

278000992

$2.21

47

Female Terminal

278001114

$3.19

48

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

49

Starter Relay

278003012

$42.49

50

Hex. Flange Screw M6 X 10

210261040

$1.48

51

Hex. Elastic Stop Nut M6

232561600

$1.15

52

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

53

Tie-Rap 173 mm

293750009

$1.04

54

Tie Wrap 368 mm

293750008

$1.04
