09- Seat And Engine Cover

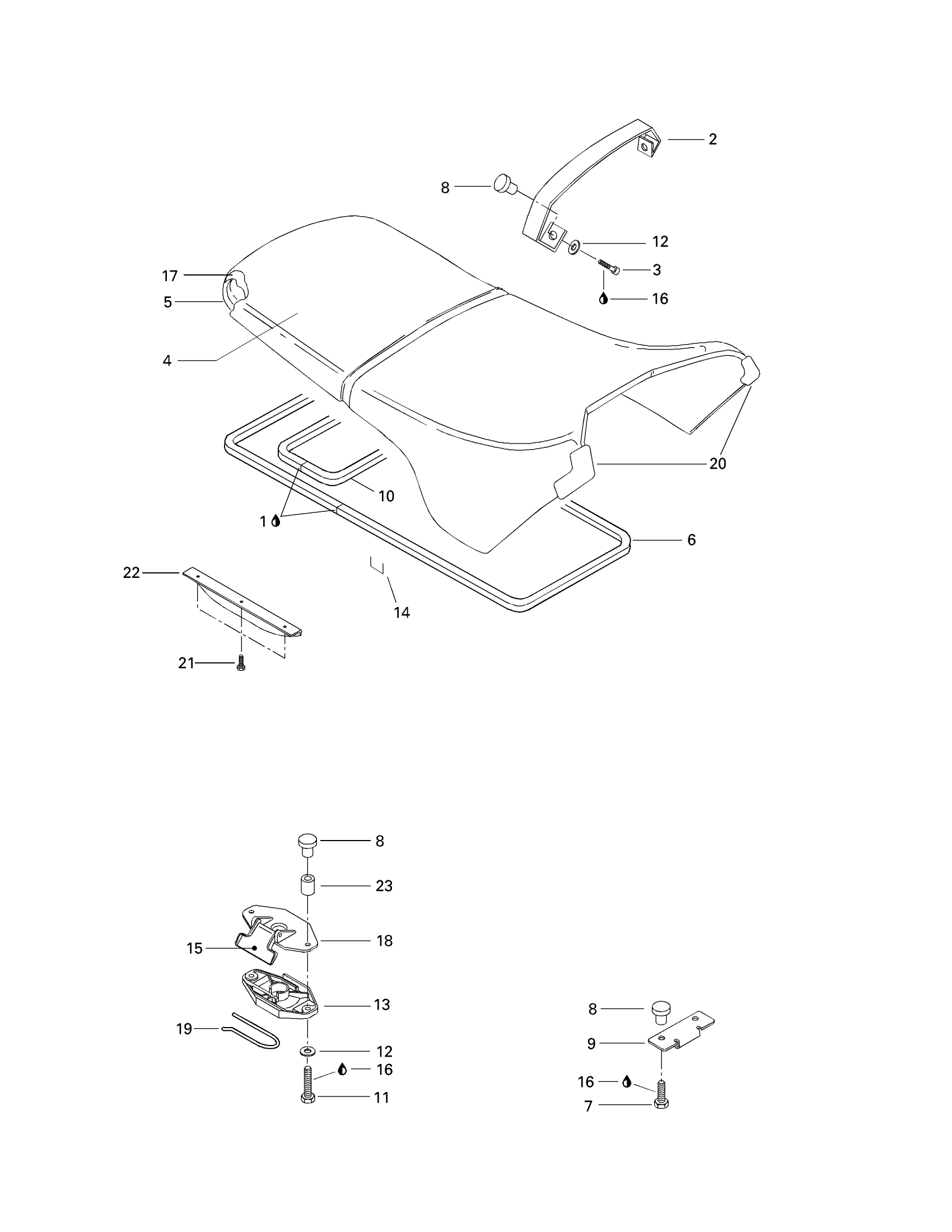

Sea-doo SP, 5879, 1997 09- Seat And Engine Cover Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Seat Strap (Blue Violet) | SP 5879.
269000120
Unavailable
Seat Strap (Yellow)
269000191
Unavailable
3
Socket Screw Button Head M6 X 10 | DS 650
250000436
$2.11
4
Seat Cover (Blue Violet) | SP 5879.
269000116
Unavailable
Seat Cover (Yellow)
269000445
Unavailable
5
Seat Base Ass'y (Incl. 6,10) | SP 5879.
295500169
Unavailable
Seat Base Ass'y (Incl. 6,10) | SPX 5661/5834.
295500366
Unavailable
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
Hex. Screw M6 x 12
210000011
Unavailable
8
Nut Welded, M6
293100003
$9.12
9
Base Keeper
291000174
$19.99
10
Was 293200017 Neoprene Seal
219704365
$149.99
11
Screw Hex. M6 X 35, Scotch Grip
207363560
$1.89
12
Stainless Flat Washer M6
234061600
$0.33
13
Latch Ass'y
269700109
$24.99
14
Staple
293730005
Unavailable
15
Latch Ass'y
269700109
$24.99
16
Loctite 243, 10 ml
293800060
$21.49
17
Seat Foam
269000078
Unavailable
18
Latch Ass'y
269700109
$24.99
19
Latch Spring
269700017
$9.19
20
Corner Seat RH (Blue Violet) | SP 5879.
269000070
Unavailable
Corner Seat RH (Yellow)
269000174
Unavailable
Corner Seat LH (Blue Violet) | SP 5879.
269000130
Unavailable
Corner Seat LH (Yellow)
269000175
Unavailable
21
Screw (For Plastic)
211000034
Unavailable
22
Protect Plate | SP 5879.
269000092
Unavailable
Protection Plate
269000173
Unavailable
23
SPACER - Call your local BRP dealership
291000532
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
