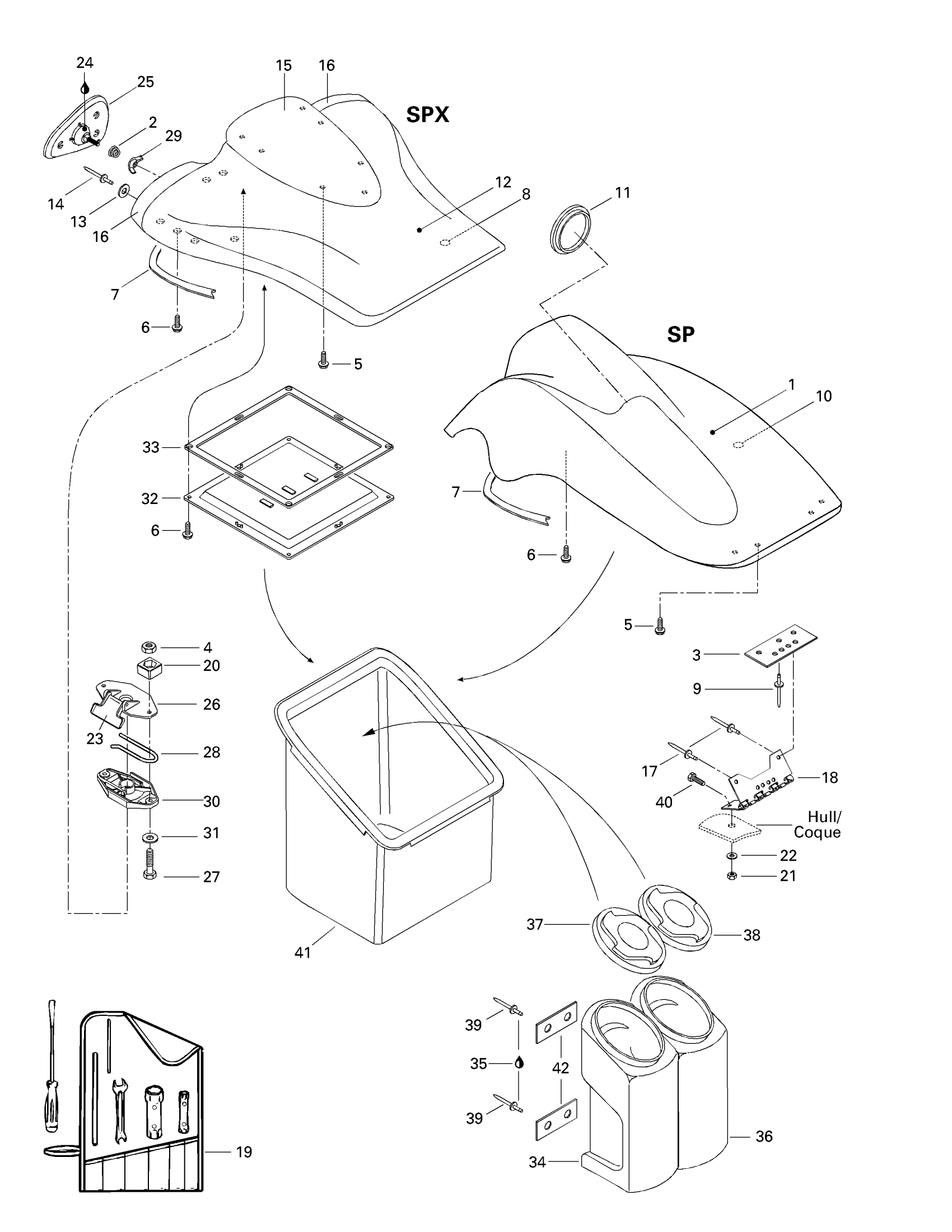

Sea-doo SP, 5879, 1997 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover (Upper) | SP 5879.

269500095

Unavailable

2

Mirror Spring

269500082

Unavailable

3

Retainer Plate

269500107

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Screw K40 X 10

241140060

$1.48

6

Hex. Flange Screw K40 X 16

241141660

$1.48

7

Seal Tray 1000Mm Long

219704368

$13.99

8

LOWER STORAGE COVER - Call your local BRP dealership

269500227

Unavailable

9

Pop Rivet 3/16"

293150039

$1.49

10

Storage Cover (Lower) | SP 5879.

269500133

Unavailable

11

Gauge Cap | GTS 5818.

269700011

Unavailable

12

Storage Cover (Upper)

269500362

Unavailable

13

Flat Washer, Emhart

213200016

$0.72

14

Rivet (3/16) | SPX 5661/5834.

295150039

Unavailable

15

DEFLECTOR (YELLOW) - Call your local BRP dealership

269500171

Unavailable

16

RH Mirror Housing

269500172

Unavailable

LH Mirror Housing

269500173

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Stainless Hinge

269500112

Unavailable

19

Tool Kit

295000066

Unavailable

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

21

Hex. Elastic Nut M5 | X

232551600

$1.15

22

Flat Washer M5, Stainless

234051600

$0.77

23

Latch Ass'y

269700109

$24.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

RH Mirror | Includes 3 to 4

269500055

Unavailable

LH Mirror | Includes 3 to 4

269500056

Unavailable

26

Latch Ass'y

269700109

$24.99

27

Hex. Screw M6 X 35

207163560

$1.49

Hex. Screw M6 X 25

207162560

$1.47

28

Latch Spring

269700017

$9.19

29

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

30

Latch Ass'y

269700109

$24.99

31

Stainless Flat Washer M6

234061600

$0.33

32

ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30

269500241

Unavailable

33

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

37

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

38

Storage Housing Cap

269500237

Unavailable

39

Rivet

293150017

Unavailable

40

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

Hex. Screw M5 X 20

207152060

$1.47

41

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

42

GASKET - Call your local BRP dealership

293250037

Unavailable
