- SP, 5879, 1997
07- Steering System

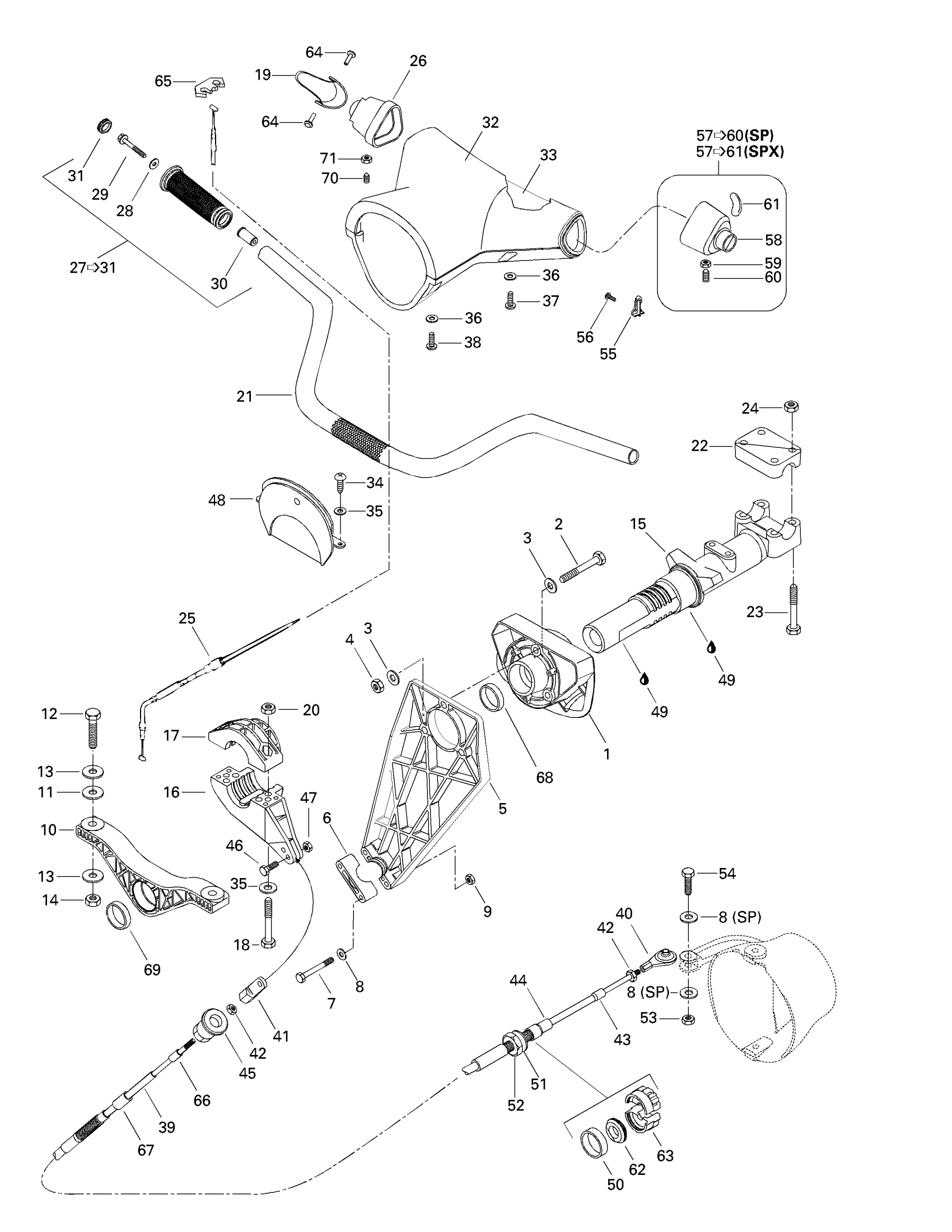

Sea-doo SP, 5879, 1997 07- Steering System Diagram
#
1
Rear Support | Includes 1 - 2.
277000106
Unavailable
2
Hex. Screw M8 x 65
215686560
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Hex. Elastic Nut M8
232581600
$1.48
5
Cable Support
277000161
Unavailable
6
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
7
Hex. Screw M6 X 50
207065060
$2.22
8
Stainless Flat Washer M6
234061600
$0.33
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Front Support | Includes 10 - 11.
277000291
Unavailable
11
Plastic Washer
277000100
Unavailable
12
Hex. Screw M8 X 40
207084060
$2.22
13
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Hex. Elastic Nut M8
232581600
$1.48
15
Steering Stem
277000375400
Unavailable
16
Steering Stem Arm
277000165
Unavailable
17
THRUST ARM - Call your local BRP dealership
277000510
Unavailable
18
Hex. Screw M6 X 30
207163060
$1.48
19
Throttle Handle
277000214
Unavailable
20
Hex. Elastic Stop Nut M6
232561600
$1.15
21
Handle bar
277000305
Unavailable
22
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
23
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
24
Hex. Elastic Nut M8
232581600
$1.48
25
Throttle Cable | SP 5879.
277000252
Unavailable
Throttle Cable
277000468
Unavailable
26
Throttle Handle Housing
277000285
Unavailable
27
Handle Grip Kit (Black) This part replaces 295500112.
295500110
$41.49
Handle Grip Kit (Black) This part replaces 295500112.
295500110
$41.49
28
Flat Washer M6, Stainless
234062600
$0.77
29
PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)
243164560
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Black, Cap
277000203
$9.39
Black, Cap
277000203
$9.39
32
Steering Cover (B. Violet) | SP 5879.
277000257
Unavailable
Steering Cover (Yellow)
277000333
Unavailable
33
Foam (Top)
277000187
Unavailable
34
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
35
Flat Washer M6, Stainless
234062600
$0.77
36
Flat Washer M5, Stainless
234051600
$0.77
37
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
38
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
39
STEERING CABLE - Call your local BRP dealership
277000289
Unavailable
40
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
41
Rotule
277000174
Unavailable
42
Hex. Nut
212100005
$1.35
43
Small Boot
277000038
Unavailable
44
LARGE BOOT - Call your local BRP dealership
277000039
Unavailable
45
KNOB ADJUSTER - Call your local BRP dealership
277000167
Unavailable
46
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
47
Hex. Elastic Stop Nut M6
232561600
$1.15
48
Plate (Violet) | SP 5879.
277000258
Unavailable
Plate (Yellow)
277000334
Unavailable
49
Synthetic Grease, 400 G
293550010
Unavailable
50
Retaining Ring
211100010
Unavailable
51
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
52
Hex. Jam Nut 1/2-20
211100011
Unavailable
53
Hex. Elastic Stop Nut M6
232561600
$1.15
54
Hex. Screw M6 X 40
207064060
$1.69
Hex. Screw M6 X 30
207063060
$1.89
55
Retainer Plate
277000219
Unavailable
56
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
57
LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 35 - 38.
277000036
Unavailable
57
LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.
277000498
Unavailable
58
LH HANDLE HOUSING - Call your local BRP dealership | GTI 5641.
277000379
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
59
Hex. Elastic Stop Nut M6
232561600
$1.15
60
Set Screw M6 x 12
211000039
Unavailable
61
VTS KNOB - Call your local BRP dealership
277000497
Unavailable
62
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
63
Half-Ring
277000168
Unavailable
64
PIN - Call your local BRP dealership
277000381
Unavailable
65
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
66
SMALL BOOT - Call your local BRP dealership
277000278
Unavailable
67
Large Boot
277000277
Unavailable
68
Spherical Cushion
293900008
Unavailable
69
Spherical Cushion
293900009
Unavailable
70
Set Screw M6 x 12
211000039
Unavailable
71
Hex. Elastic Stop Nut M6
232561600
$1.15
