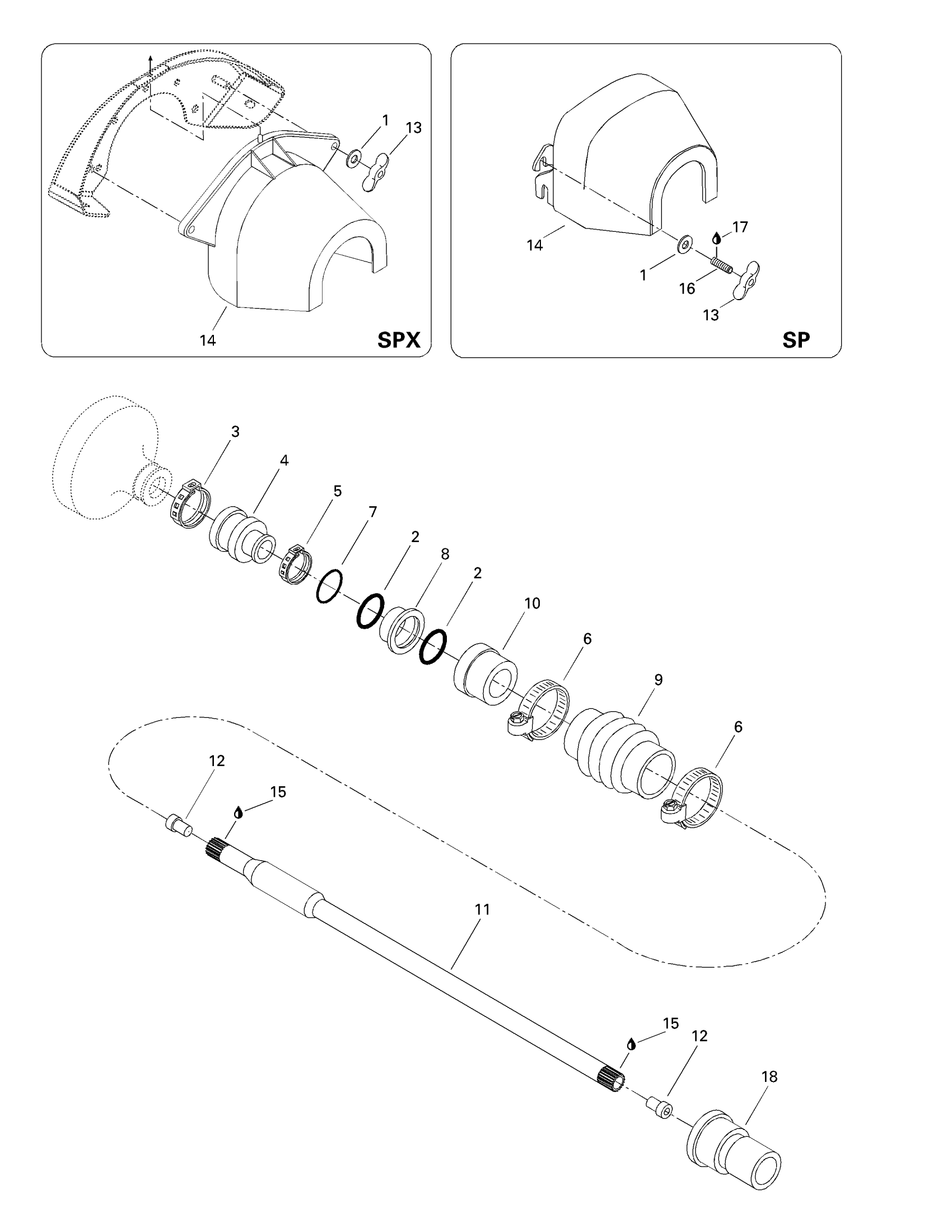

Sea-doo SP, 5879, 1997 05- Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.43

2

O-Ring

293300032

$6.03

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Tridon Clamp

293650035

$7.29

7

O-Ring

293300036

$11.60

8

Support Ring

272000064

$66.49

9

BELLOWS - Call your local BRP dealership

272000184

$27.99

10

Carbon Ring

272000770

$45.99

11

Drive Shaft

272000073

Unavailable

Drive Shaft

272000096

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

Flywheel Guard

272000122

Unavailable

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

16

Stud M8 x 15

211300013

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
