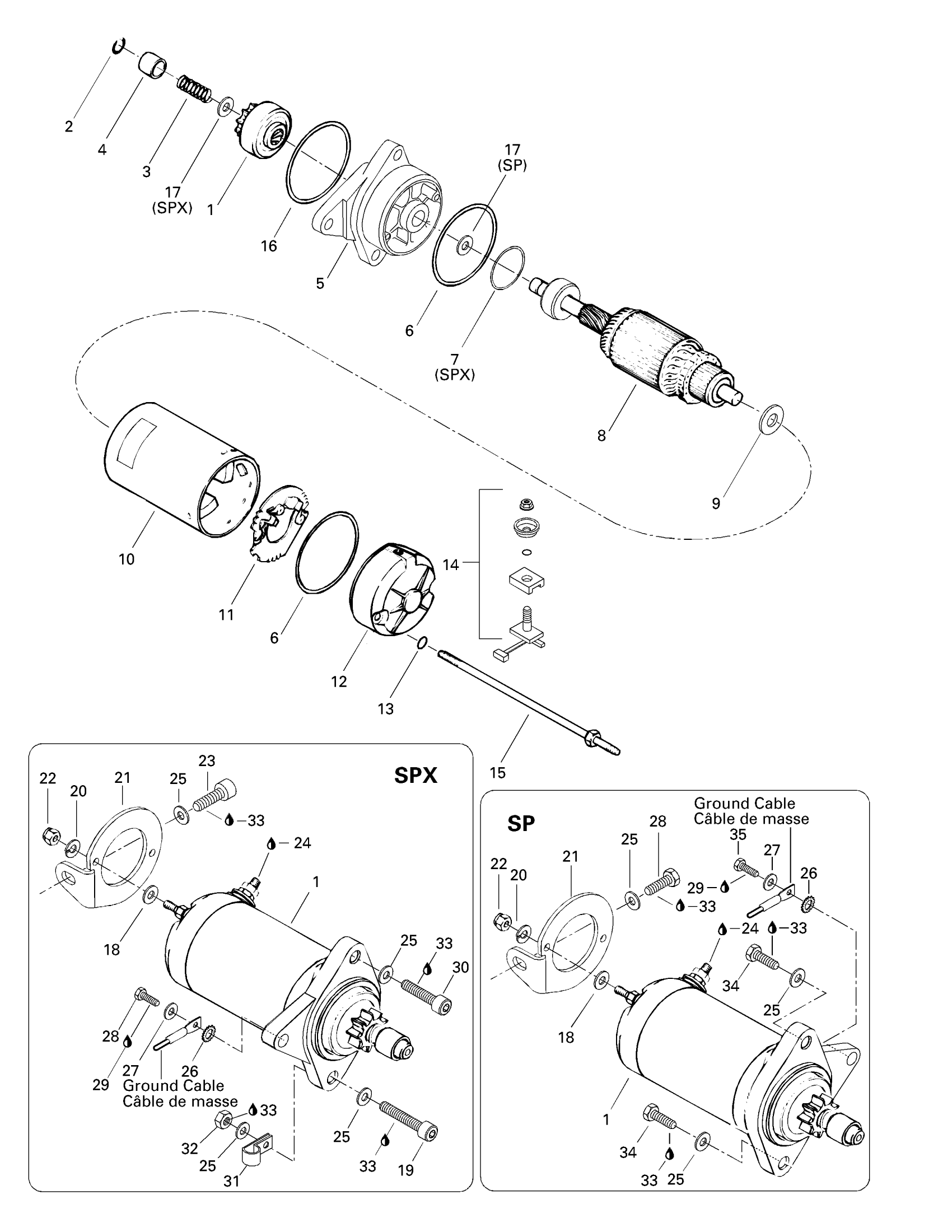

Sea-doo SP, 5879, 1997 04- Starter Diagram

#

Description
Price

1

Starter Ass'y, Black | Includes 1 - 16. This part replaces 278001300.

278001935

$234.49

Starter Ass'y | Includes 1 - 17.

278001301

$234.49

1

Starter Clutch Ass'y

295500089

Unavailable

STARTER CLUTCH ASS'Y - Call your local BRP dealership

278001106

Unavailable

2

CIRCLIP - Call your local BRP dealership

278000048

Unavailable

3

SPRING - Call your local BRP dealership

278000168

Unavailable

4

Stopper Bushing

278000254

Unavailable

5

Housing Ass'y

278000697

Unavailable

Housing Ass'y

278001107

Unavailable

6

O-Ring

278000695

$14.24

7

O-Ring Kit This part replaces 278000696.

415129342

$14.24

8

Armature

278000699

Unavailable

Armature

278001108

Unavailable

9

THRUST WASHER - Call your local BRP dealership

278000056

Unavailable

10

Yoke Ass'y

278000057

Unavailable

YOKE ASS'Y - Call your local BRP dealership

278001109

Unavailable

11

Brush Holder

278001296

$40.99

Brush Holder

278001296

$40.99

12

Commutator End Frame

278000251

Unavailable

Rear Cover

278001111

Unavailable

13

O-RING - Call your local BRP dealership

278000060

Unavailable

14

Brush Starter Kit

278001297

$19.49

Brush Starter Kit

278001112

Unavailable

15

RETAINER STUD - Call your local BRP dealership

278000170

Unavailable

16

O-RING - Call your local BRP dealership

278000694

Unavailable

17

Flat Washer

278000054

Unavailable

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

18

Flat Washer M5, Stainless

234051600

$0.77

19

Socket Screw M8 X 30

205083060

$2.96

20

Helical Lock Washer M5

234151601

$1.15

21

Starter Support

270000080

Unavailable

Starter Support

270000120

Unavailable

22

Hex. Nut M5

232051600

$1.15

23

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Stainless, Flat Washer 8 mm

234081600

$0.55

26

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

27

Flat Washer M8, Stainless

234080600

$1.48

28

Hex. Screw M8 x 16

215681660

Unavailable

29

Loctite 271, 10 ml

293800005

$26.99

30

Socket Head Screw M8 X 45

205084560

$3.59

31

Clip

293850018

Unavailable

32

Hex. Nut M8

232081600

$1.47

33

Loctite 243, 10 ml

293800060

$21.49

34

Hex. Screw M8 X 30

207183060

$1.58

35

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable
