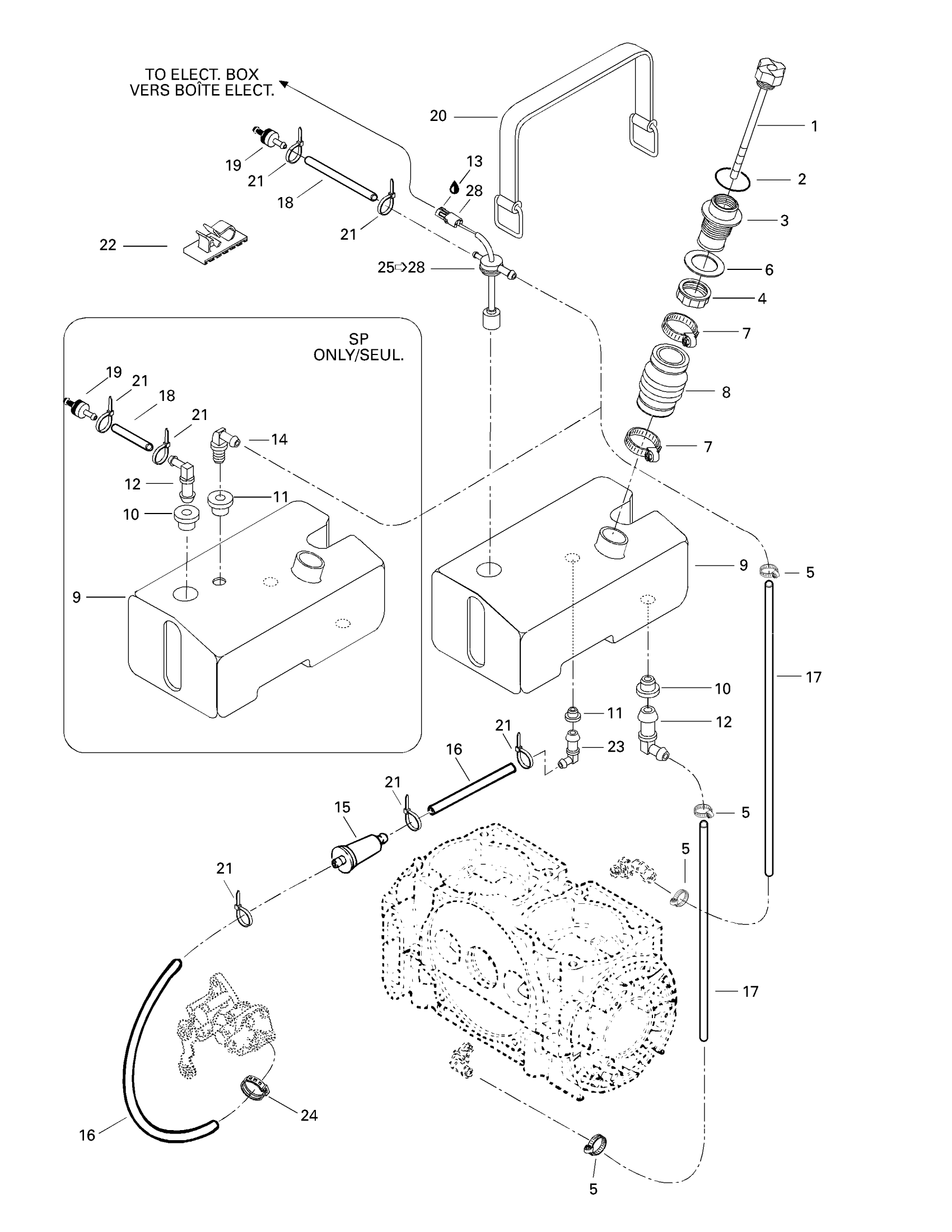

Sea-doo SP, 5879, 1997 Oil Injection System Diagram

#

Description
Price

1

Oil Cap Ass'y | Includes 1 - 2.

275000081

Unavailable

2

O-RING - Call your local BRP dealership

293250025

Unavailable

3

Filler Neck

275000212

Unavailable

4

Nut-Neck Oil Filler

211100013

Unavailable

5

Tridon Gear Clamp

293650170

$1.99

6

Gasket

293250016

Unavailable

7

Tridon Clamp

293650035

$7.29

8

Filler Neck Hose

275000070

Unavailable

9

Oil Tank | SP 5879.

275000015

Unavailable

Oil Tank

275000123

Unavailable

10

Grommet | Europe

707800347

$10.49

11

Grommet

709200285

$9.69

12

Elbow Fitting

414523600

$4.86

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Male Connector

414580700

$4.12

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

17

Was 275500008 Hose 12 mm

219704356

$20.49

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve This part replaces 275500087.

275501246

$10.99

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

23

Elbow Fitting 90 Deg

414650200

Unavailable

24

Oetiker Clamp

293650042

$3.09

25

Oil Level Sensor

278000478

Unavailable

26

Wire Seal

278000218

$4.39

27

Male Terminal | XT Models

278000222

$3.19

28

Female Housing, 2 Circuits

278000217

$9.59

29

Grommet

204470104

Unavailable
