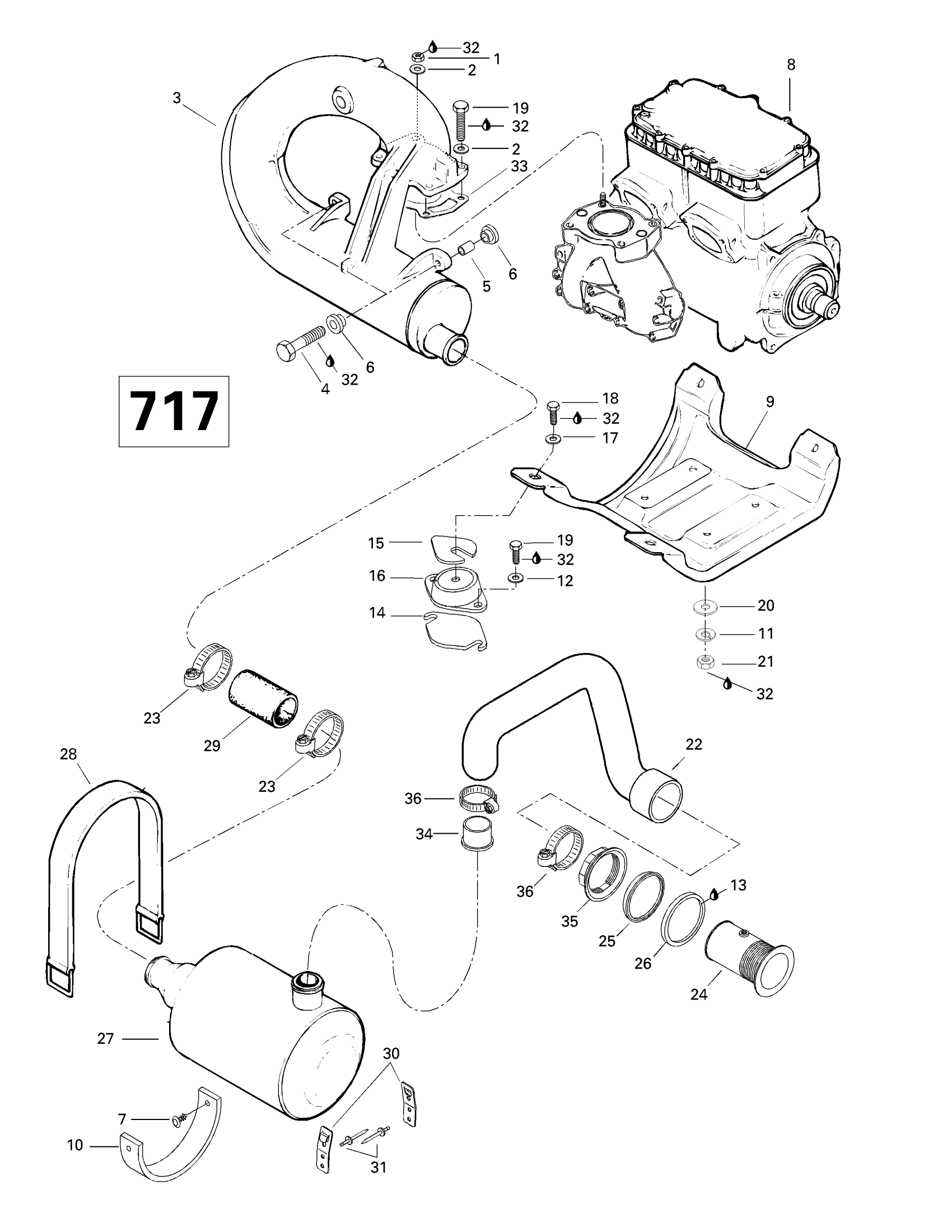

Sea-doo SP, 5879, 1997 Engine Support And Muffler (717) Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y | SP 5879.

274000374

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000114

$8.85

6

Rubber Bushing

293830031

Unavailable

7

Black, Dart

293730006

$0.99

8

Rotax Engine 717 (White) | SP 5879.

270000273

Unavailable

9

Engine Support

270000147

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Silicone Sealant 51388, 300 ml

296000309

$36.99

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Hose Formed | SP 5879.

274000228

Unavailable

23

Tridon Clamp

293650036

$7.49

24

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

25

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

26

GASKET - Call your local BRP dealership

293250041

Unavailable

27

Muffler

274000491

Unavailable

28

Retainer Strap

293850097

$11.64

29

EXHAUST HOSE - Call your local BRP dealership

274000032

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

34

Hose Adaptor

274000383

Unavailable

35

Nut 72 mm

274000224

$16.34

36

Tridon Clamp

293650064

$8.29
