10- Electrical System SP, SPI

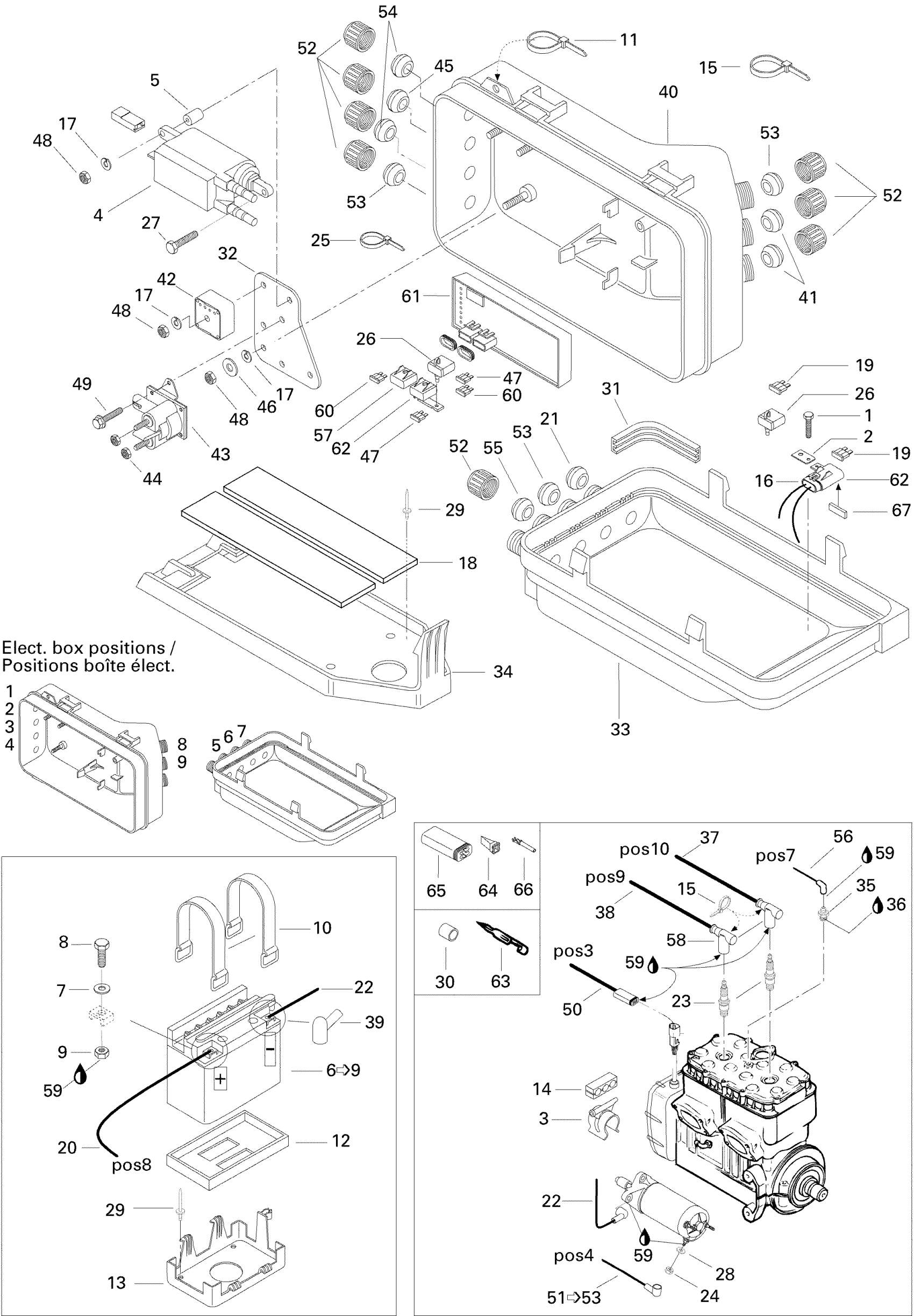

Sea-doo SP, 5876, 1996 10- Electrical System SP, SPI Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
IGNITION COIL - Call your local BRP dealership
278000586
Unavailable
5
SPACER - Call your local BRP dealership
278000235
Unavailable
6
Battery 19A | Includes 5 to 8
278001756
$153.36
7
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
8
Hex. Screw M6 X 16
207161644
$0.74
9
Hex. Nut M6
232061414
$0.53
10
Retainer Strap
293850097
$11.64
11
Tie-Rap 173 mm
293750009
$1.04
12
Battery Lower Pad
278000776
Unavailable
13
Battery Support
278000476
Unavailable
14
3 WIRE SUPPORT - Call your local BRP dealership
278000245
Unavailable
15
Tie Wrap 142 mm
293750002
$1.25
16
Not Available As Spare Parts
XXX
Unavailable
17
Lock Washer Helical M6
234161601
$1.15
18
Rubber Strip
293830012
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Battery Cable (Red)
278000514
Unavailable
21
Grommet, 1 Circuit, Blue
293720030
Unavailable
22
Battery Ground Cable
278000681
Unavailable
23
Spark Plug NGK BR7ES | SP 5879.
219703118
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Tie Wrap 94 mm | 4X4
293750001
$1.03
26
Fuse Holder
278000379
Unavailable
27
Self Tapping Screw M6.3 x 25
215462550
Unavailable
28
Stainless Flat Washer M6
234061600
$0.33
29
Avdel Rivet 3/16"
293150037
$0.56
30
Insulation Sheath
278000231
$5.08
31
Gasket
278000181
Unavailable
32
Mounting Plate
278000615
Unavailable
33
Electric Box Cover
278000786
Unavailable
34
Box Support
278000780
Unavailable
35
Temperature Sensor
278000194
Unavailable
36
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
37
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
38
Spark Plug Wire 530 (MAG)
278000322
Unavailable
39
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
40
Electric Box Base
278000781
Unavailable
41
Grommet
278000682
Unavailable
42
RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.
278000123
Unavailable
43
Starter Relay
278003012
$42.49
44
Hex. Elastic Stop Nut M6
232561600
$1.15
45
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership
293720025
Unavailable
46
Stainless Flat Washer M6
234061600
$0.33
47
Fuse, 5 Amperes | CE
278000344
$3.28
48
Hex. Nut M6
232061600
$1.15
49
Hex. Flange Screw M6 X 10
210261040
$1.48
50
Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)
278000472
Unavailable
51
Starter Cable (Red) | Includes 51 - 53.
278000192
Unavailable
52
Electric Wire Cap
278000100
Unavailable
53
GROMMET - Call your local BRP dealership
278000098
Unavailable
54
Grommet, 4 Circuit, Red
570026800
Unavailable
55
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
278000193
Unavailable
56
Temperature Harness Ass'y | (Incl. It. 1,52,64,65)
278000489
Unavailable
57
FUSE CAP - Call your local BRP dealership
278000378
Unavailable
58
SPARK PLUG CAP - Call your local BRP dealership
278000237
$16.99
59
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
60
Fuse, 15 Amperes
278000343
$3.28
61
Electronic Module Ass'y | Includes 26,30,47,57,60,62,63
278001135
Unavailable
62
Fuse Holder Cap
278001326
$7.69
63
Male Terminal
278000230
$4.39
64
Male Lock, 4 Circuits | CE
278000738
$3.09
65
Male Connector, 4 Circuits | CE
278000739
$19.49
66
Female Terminal
278000632
$2.09
67
Not Available As Spare Parts
XXX
Unavailable
