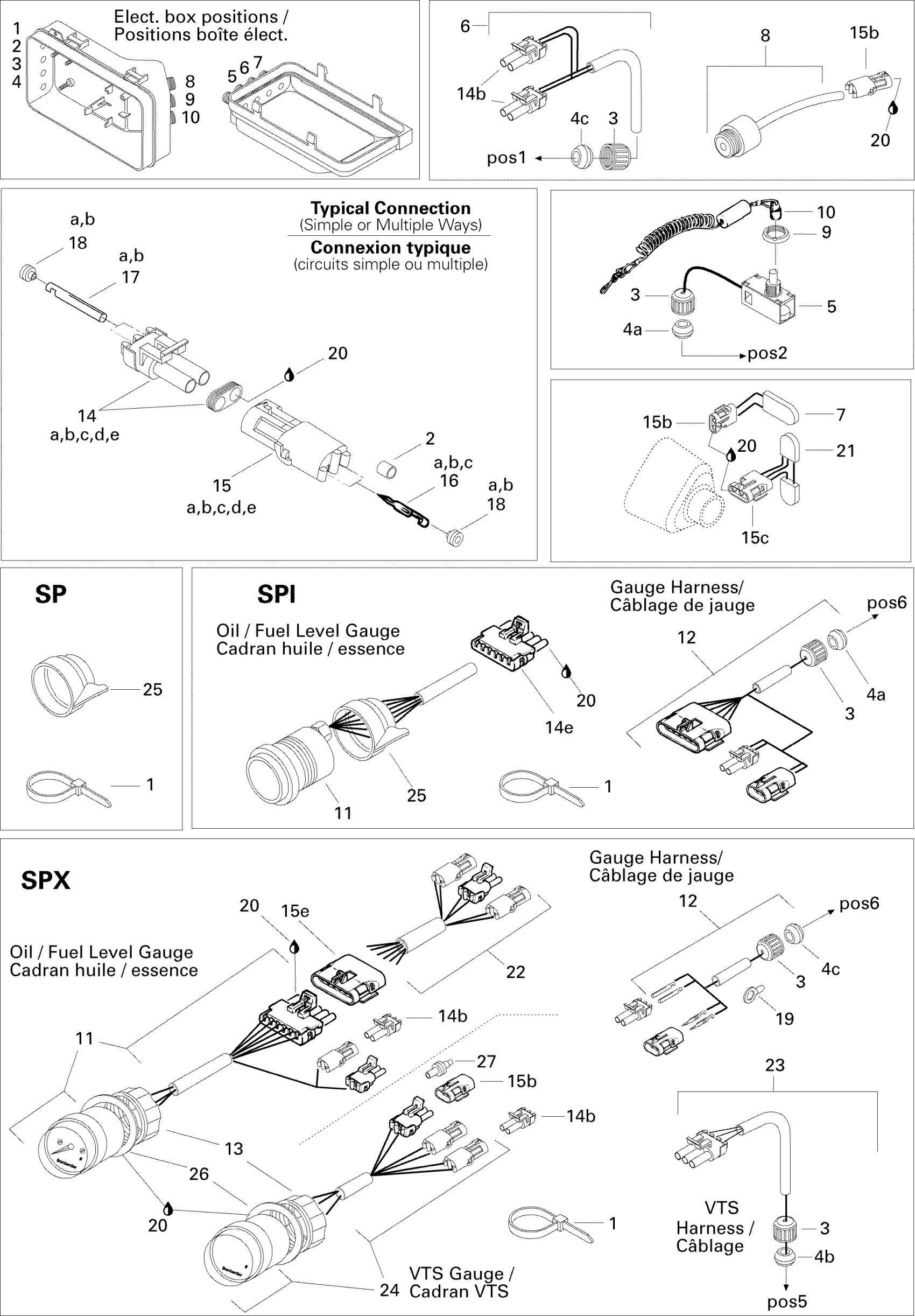

Sea-doo SP, 5876, 1996 Electrical Accessories SP Diagram

#

Description
Price

1

Tie Wrap 142 mm

293750002

$1.25

2

Insulation Sheath

278000231

$5.08

3

Electric Wire Cap

278000100

Unavailable

4a

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

4b

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

4c

Grommet, 4 Circuit, Red

570026800

Unavailable

5

Safety Switch | Includes 41 - 43.

278000552

$149.99

6

Buzzer-On/Off Switch Harness | Includes 1 - 8.

278000420

Unavailable

7

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

8

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

9

Safety Switch Nut

278000099

Unavailable

10

Safety Lanyard

278001431

$47.49

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14a

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

14b

Male Connector, 2 Circuits

278000220

$15.49

14c

Male Housing, 3 Circuits

278000273

$9.59

14d

Male Housing, 4 Circuits

278000395

$15.99

14e

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

15a

Female Housing, 1 Circuit

278000161

$9.59

15b

Female Housing, 2 Circuits

278000217

$9.59

15c

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

15d

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

15e

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

16a

Male Terminal

409004300

$5.61

16b

Male Terminal | XT Models

278000222

$3.19

16c

Male Terminal

278000230

$4.39

17a

Female Terminal

409007300

$0.45

17b

Female Terminal

278000223

$3.19

18a

Wire Seal

278000218

$4.39

18b

Wire Seal

278001065

$7.69

19

Ring Terminal

278000300

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable
