Description

Price

1

Seat Ass'y (Marine Green) | Includes 1 to 22

269000278

Unavailable

2

Seat Strap (Marine Green)

269000288

Unavailable

3

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

4

Seat Cover (Marine Green)

269000287

Unavailable

5

Seat Base Ass'y (Incl. 6,10) | SP 5879.

295500169

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Hex. Screw M6 x 12

210000011

Unavailable

8

Nut Welded, M6

293100003

$9.12

9

Base Keeper

291000174

$19.99

10

Was 293200017 Neoprene Seal

219704365

$149.99

11

Hex. Screw M6 X 35

207163560

$1.49

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

SPACER - Call your local BRP dealership

291000532

Unavailable

15

Latch Ass'y

269700109

$24.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Seat Foam

269000078

Unavailable

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Corner Seat RH (Marine Green)

269000283

Unavailable

20

Corner Seat LH (Marine Green)

269000284

Unavailable

21

Screw (For Plastic)

211000034

Unavailable

22

Protect Plate | SP 5879.

269000092

Unavailable

23

Staple

293730005

Unavailable

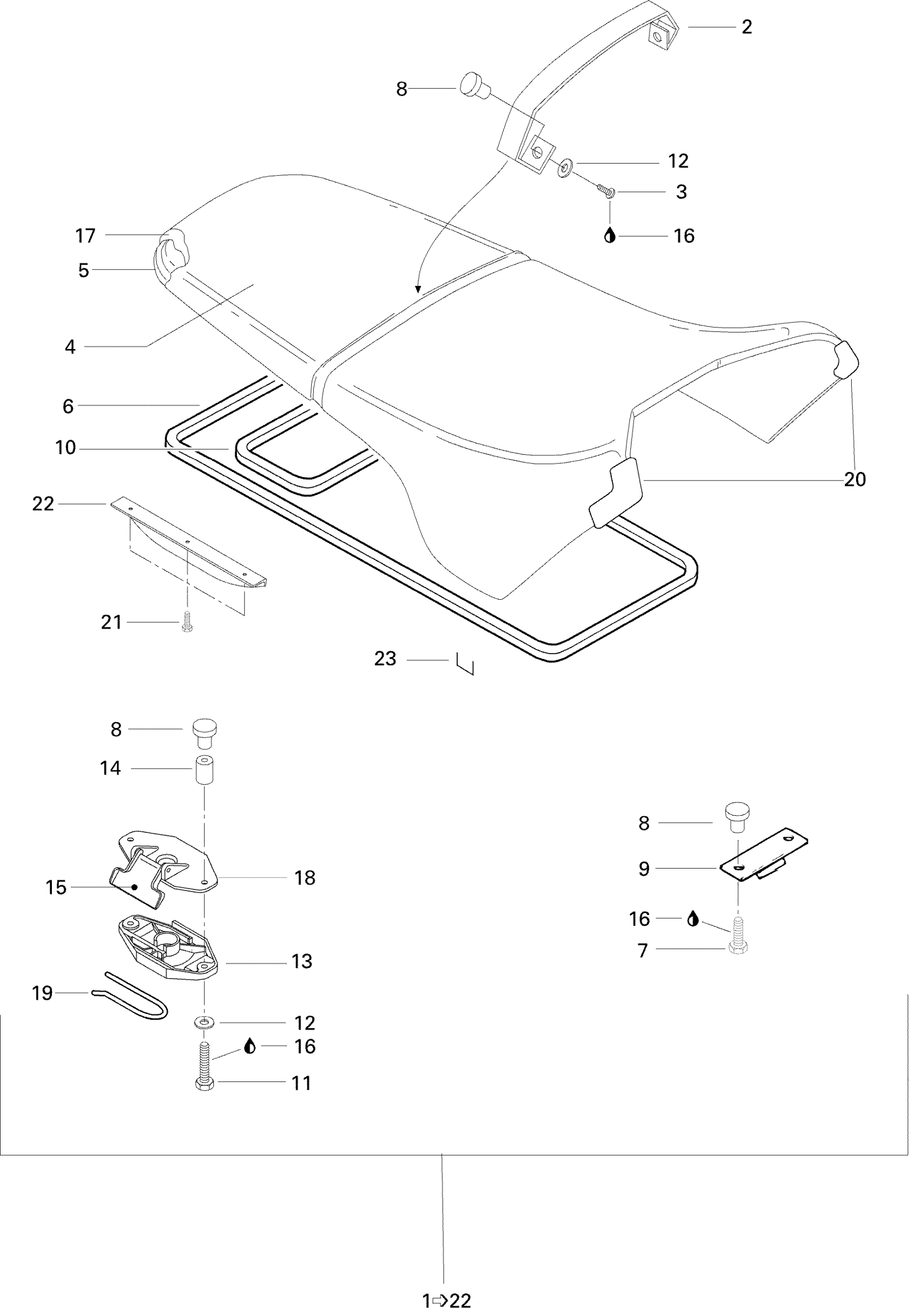

Sea-doo SP, 5876, 1996 09- Seat SP, SPX Diagram

Seat Ass'y (Marine Green) | Includes 1 to 22

Seat Strap (Marine Green)

Socket Screw Button Head M6 X 10 | DS 650

Seat Cover (Marine Green)

Seat Base Ass'y (Incl. 6,10) | SP 5879.

Was 293200017 Neoprene Seal

Hex. Screw M6 x 12

Nut Welded, M6

Base Keeper

Was 293200017 Neoprene Seal

Hex. Screw M6 X 35

Stainless Flat Washer M6

Latch Ass'y

SPACER - Call your local BRP dealership

Latch Ass'y

Loctite 243, 10 ml

Seat Foam

Latch Ass'y

Latch Spring

Corner Seat RH (Marine Green)

Corner Seat LH (Marine Green)

Screw (For Plastic)

Protect Plate | SP 5879.

Staple
