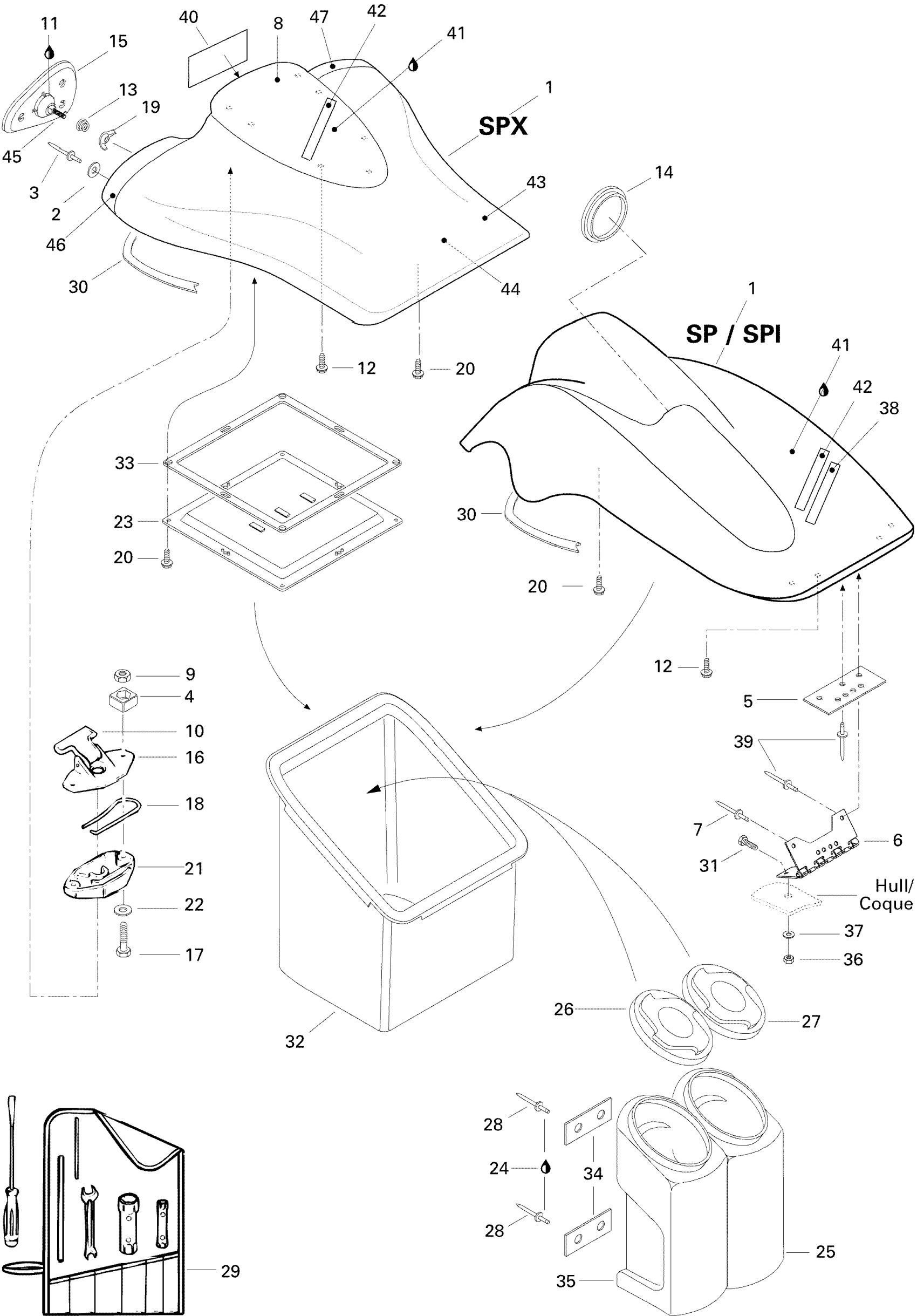

Sea-doo SP, 5876, 1996 Front Storage Compartment SP Diagram

#

Description
Price

1

Storage Cover Kit (Marine Green) | Includes 4,5,6,7,9,12,20,30,38,39,42,43,44

295500343

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

5

Retainer Plate

269500107

Unavailable

6

Stainless Hinge

269500112

Unavailable

7

Pop Rivet 3/16"

293150039

$1.49

8

Not Available As Spare Parts

XXX

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Latch Ass'y

269700109

$24.99

11

Not Available As Spare Parts

XXX

Unavailable

12

Screw K40 X 10

241140060

$1.48

13

Not Available As Spare Parts

XXX

Unavailable

14

GAUGE CAP (GREEN) - Call your local BRP dealership

293000044

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Latch Ass'y

269700109

$24.99

17

Hex. Screw M6 X 25

207162560

$1.47

18

Latch Spring

269700017

$9.19

19

Not Available As Spare Parts

XXX

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.48

21

Latch Ass'y

269700109

$24.99

22

Stainless Flat Washer M6

234061600

$0.33

23

Not Available As Spare Parts

XXX

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99

25

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

26

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

27

Storage Housing Cap

269500237

Unavailable

28

Rivet

293150017

Unavailable

29

Tool Kit

295000066

Unavailable

30

Seal Tray 1000Mm Long

219704368

$13.99

31

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

32

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

33

Not Available As Spare Parts

XXX

Unavailable

34

GASKET - Call your local BRP dealership

293250037

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

Hex. Elastic Nut M5 | X

232551600

$1.15

37

Flat Washer M5, Stainless

234051600

$0.77

38

«SEA–DOO» Decal

219900225

Unavailable

39

Pop Rivet 3/16"

293150039

$1.49

40

Not Available As Spare Parts

XXX

Unavailable

41

Primer

293530036

Unavailable

42

Decal SP

219900392

Unavailable

43

Upper Cover Storage

269500219

Unavailable

44

Lower Cover Storage

269500220

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable
