09- Body, Rear View SP

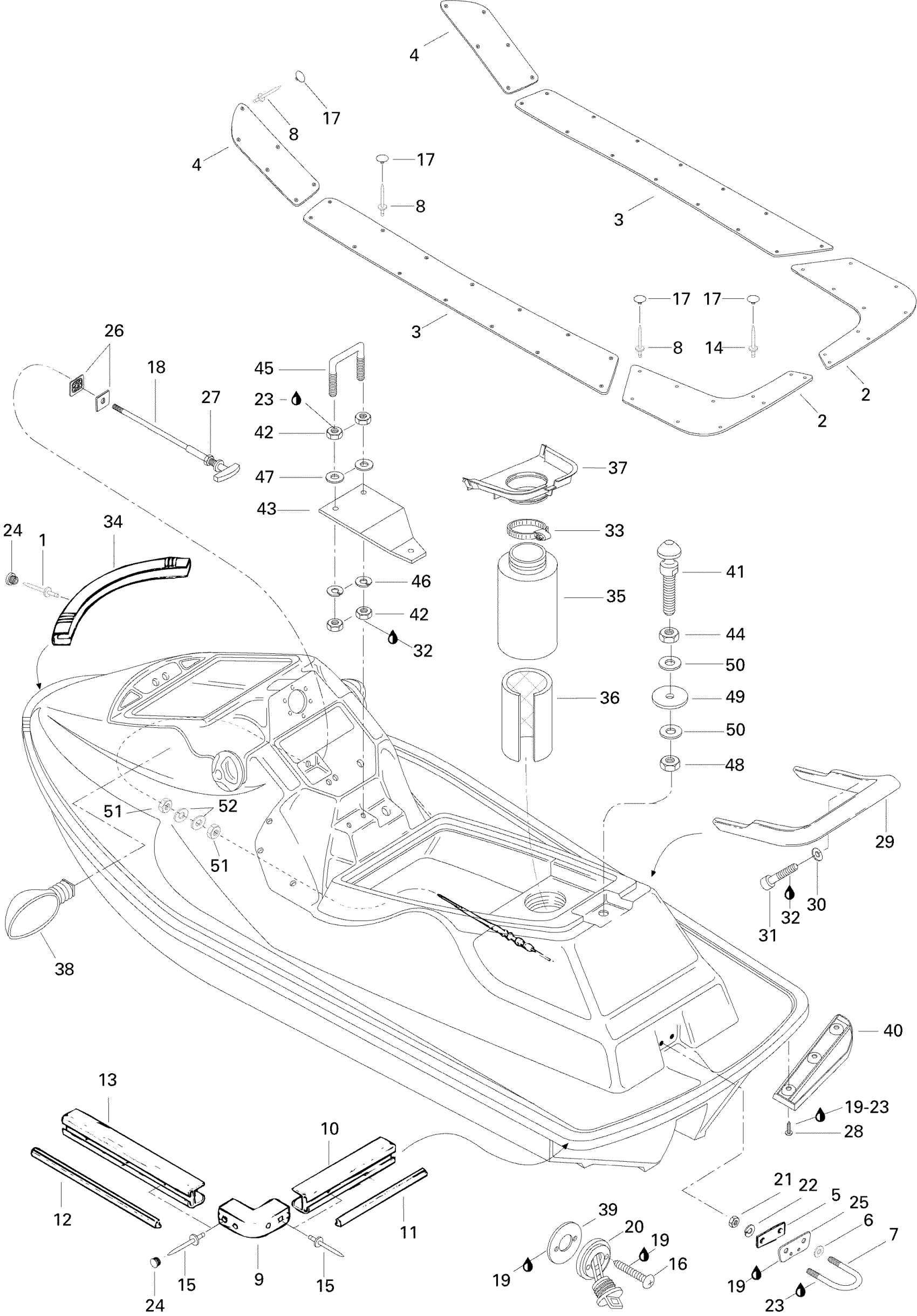

Sea-doo SP, 5876, 1996 09- Body, Rear View SP Diagram
#
1
Pop Rivet 3/16"
293150013
$1.37
2
RH Rear Carpet (Violet) | SP 5879.
291000594
Unavailable
2
LH Rear Carpet (Violet) | SP 5879.
291000595
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
6
Flat Washer M8.5 x 18
293050001
$3.07
7
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
8
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
9
BUMPER CORNER (VIOLET) - Call your local BRP dealership
291000394
Unavailable
10
Rear Bumper (Violet) | SP 5879.
291000419
Unavailable
11
REAR BUMPER TRIM (VIOLET) - Call your local BRP dealership | SP 5879.
291000585
Unavailable
12
SIDE BUMPER TRIM (VIOLET) - Call your local BRP dealership | SP 5879.
291000583
Unavailable
13
Side Bumper (Violet) | SP 5879.
291000417
Unavailable
14
Rivet 1/8"
293150016
$0.40
15
Pop Rivet 3/16"
293150014
$1.09
16
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
17
Black, Snap Cap
293000014
$1.09
18
Choke Cable | Includes 51 to 54
277000077
Unavailable
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
Drain Plug
292000187
$14.49
21
Hex. Nut M8
232081600
$1.47
22
Lock Washer 8 mm, Stainless
234181601
$0.55
23
Loctite 271, 10 ml
293800005
$26.99
24
Bumper Plug, Black
291000339
$2.99
25
Finition Plate (Violet) | SP 5879.
291000137
Unavailable
26
Choke Plate
291000457
Unavailable
27
Hex. Nut
211100007
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
Tridon Clamp
293650054
$9.49
34
Nose Bumper (Violet) | SP 5879.
291000393
Unavailable
35
Tube Vent Rear
291000376
Unavailable
36
Sound Damping
291000400
Unavailable
37
Hose Support
291000377
Unavailable
38
LH Mirror (96, 97 SP)
295500333
Unavailable
38
RH Mirror (96, 97 SP)
295500380
Unavailable
39
GASKET - Call your local BRP dealership
293250030
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
42
Hex. Nut M6
232061600
$1.15
43
Fuel Filter Support
275500113
Unavailable
44
Hex. Jam Nut M10
232100600
$2.22
45
SEAT HOOK - Call your local BRP dealership
291000468
Unavailable
46
Lock Washer Helical M6
234161601
$1.15
47
Flat Washer M6, Stainless
234062600
$0.77
48
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
49
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
50
Flat Washer 10 mm, Stainless
234002600
$2.22
51
Hex. Nut M6
232160600
$1.15
52
Stainless Flat Washer M6
234061600
$0.33
