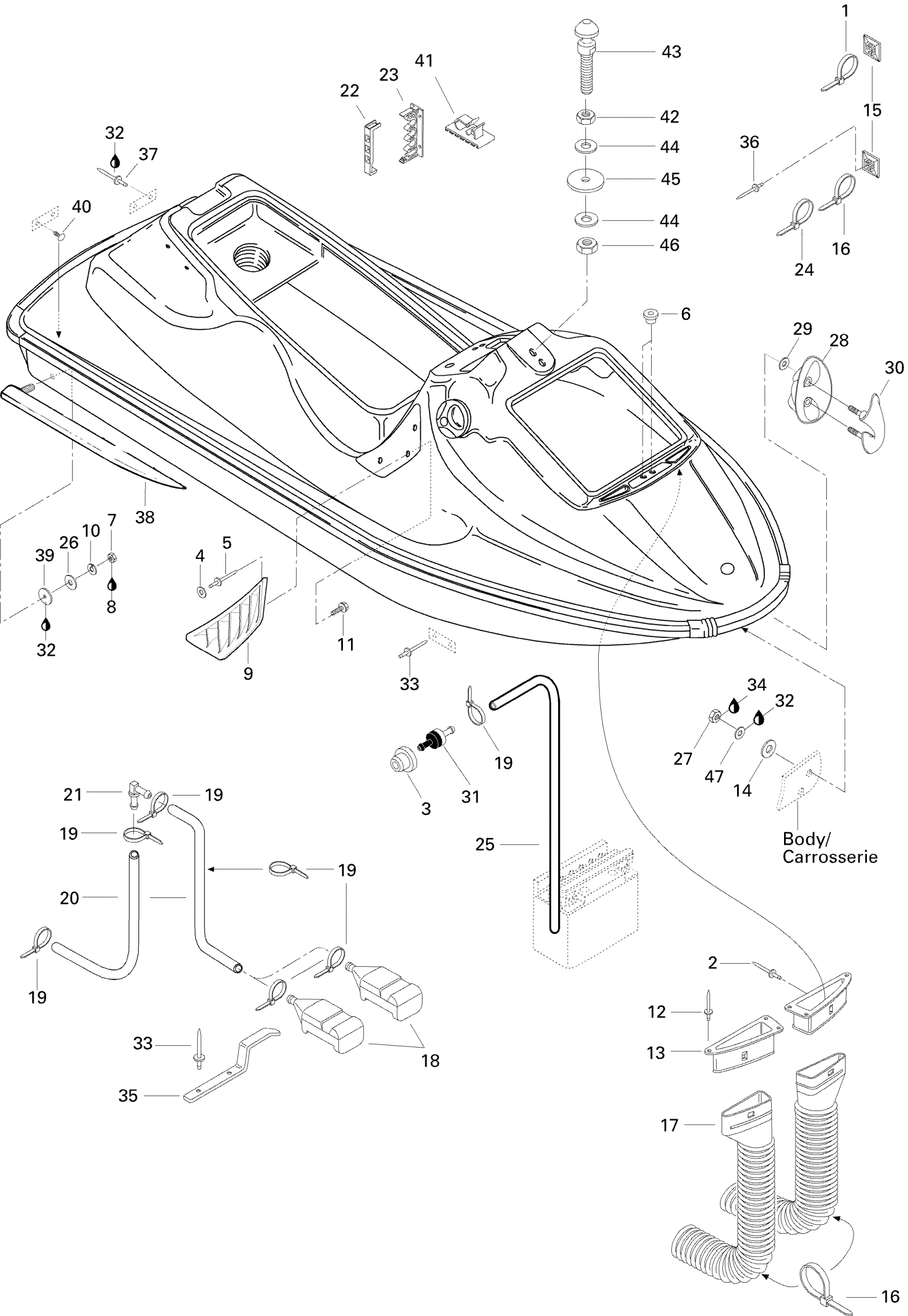

Sea-doo SP, 5876, 1996 09- Body, Front View SP Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

3

Grommet

293720029

$1.59

4

Flat Washer 4 mm, Stainless

234042600

$1.15

5

Pop Rivet 1/8

293150041

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Hex. Nut M6

232061600

$1.15

8

Loctite 243, 10 ml

293800060

$21.49

9

RH Intake Grill (Violet)

291000592

Unavailable

9

LH Intake Grill (Violet)

291000593

Unavailable

10

Lock Washer Helical M6

234161601

$1.15

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Rivet 1/8

293150019

Unavailable

13

RH Adapter Vent

291000380

Unavailable

13

LH Adapter Vent

291000381

Unavailable

14

Rubber Washer

293830037

$2.68

15

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

16

Tie Wrap 368 mm

293750008

$1.04

17

LH Tube Vent

291000382

Unavailable

17

RH Tube Vent

291000383

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Tie Mount Top

293750012

Unavailable

23

Tie Mount

293750013

Unavailable

24

Tie Wrap 142 mm

293750002

$1.25

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (White)

292000258

Unavailable

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Eye-Bow (White)

292000257

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

Loctite 271, 10 ml

293800005

$26.99

35

Spring Clip

292000272

Unavailable

36

Rivet 1/8"

293150016

$0.40

37

Pop Rivet 1/8''

293150033

Unavailable

38

RH Sponson (Violet) | SP 5879.

292000199

Unavailable

38

LH SPONSON (VIOLET) - Call your local BRP dealership | SP 5879.

292000200

Unavailable

39

GASKET - Call your local BRP dealership

293250026

Unavailable

40

Black, Dart

293730006

$0.99

41

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$2.43
