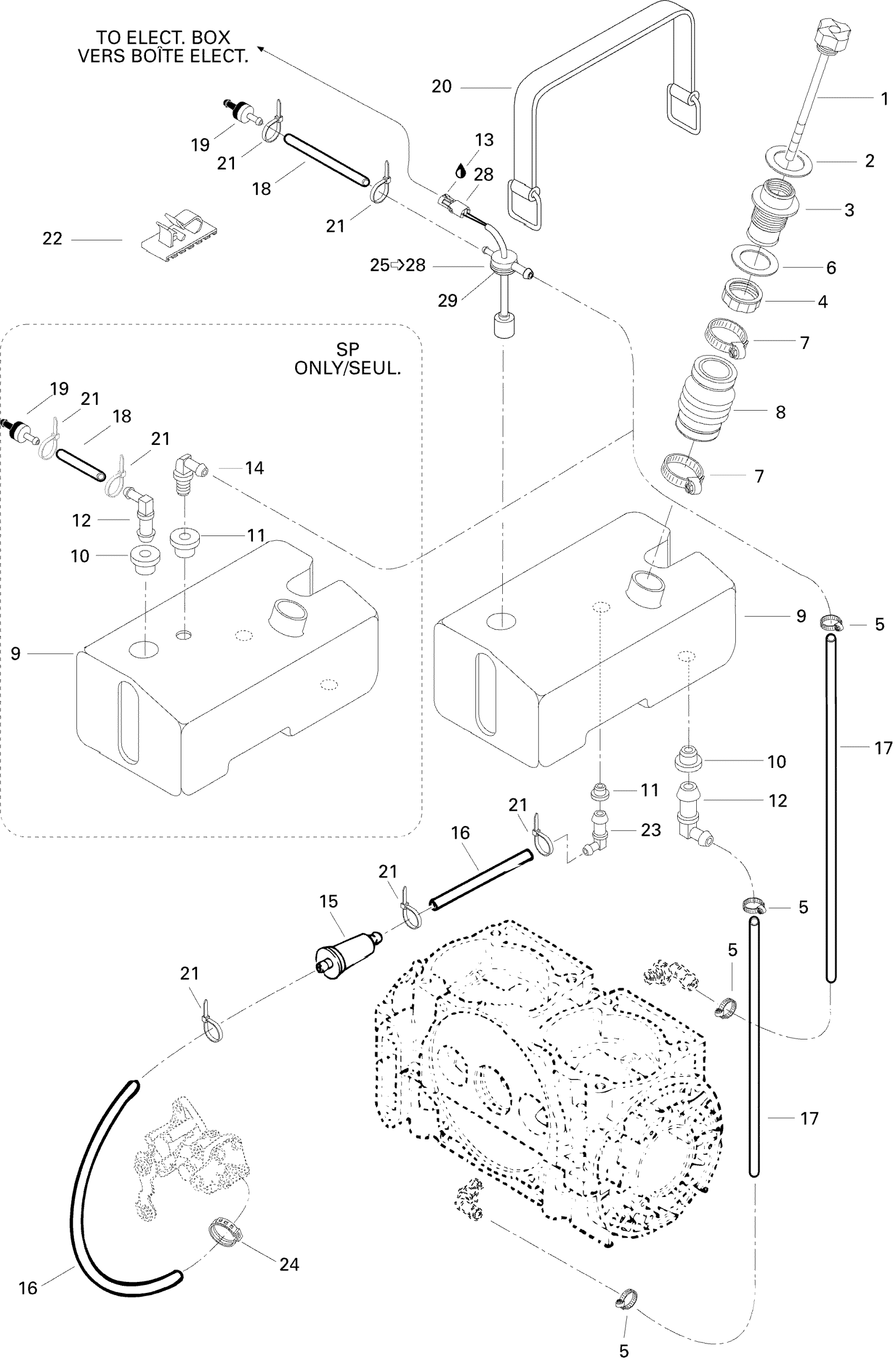

Sea-doo SP, 5876, 1996 Oil Injection System SP Diagram

#

Description
Price

1

Oil Cap Ass'y | Includes 1 - 2.

275000081

Unavailable

2

O-RING - Call your local BRP dealership

293250025

Unavailable

3

Filler Neck | GTI 5641.

275000064

Unavailable

4

Nut-Neck Oil Filler

211100013

Unavailable

5

Tridon Gear Clamp

293650170

$1.99

6

Gasket

293250016

Unavailable

7

Tridon Clamp

293650035

$7.29

8

Filler Neck Hose

275000070

Unavailable

9

Oil Tank | SP 5879.

275000015

Unavailable

10

Grommet | Europe

707800347

$10.49

11

Grommet

709200285

$9.69

12

Elbow Fitting

414523600

$4.86

13

Not Available As Spare Parts

XXX

Unavailable

14

Male Connector

414580700

$4.12

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

17

Was 275500008 Hose 12 mm

219704356

$20.49

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve This part replaces 275500087.

275501246

$10.99

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

23

Elbow Fitting 90°

293710003

Unavailable

24

Oetiker Clamp

293650042

$3.09

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable
