02- Oil Injection Pump SP, SPI

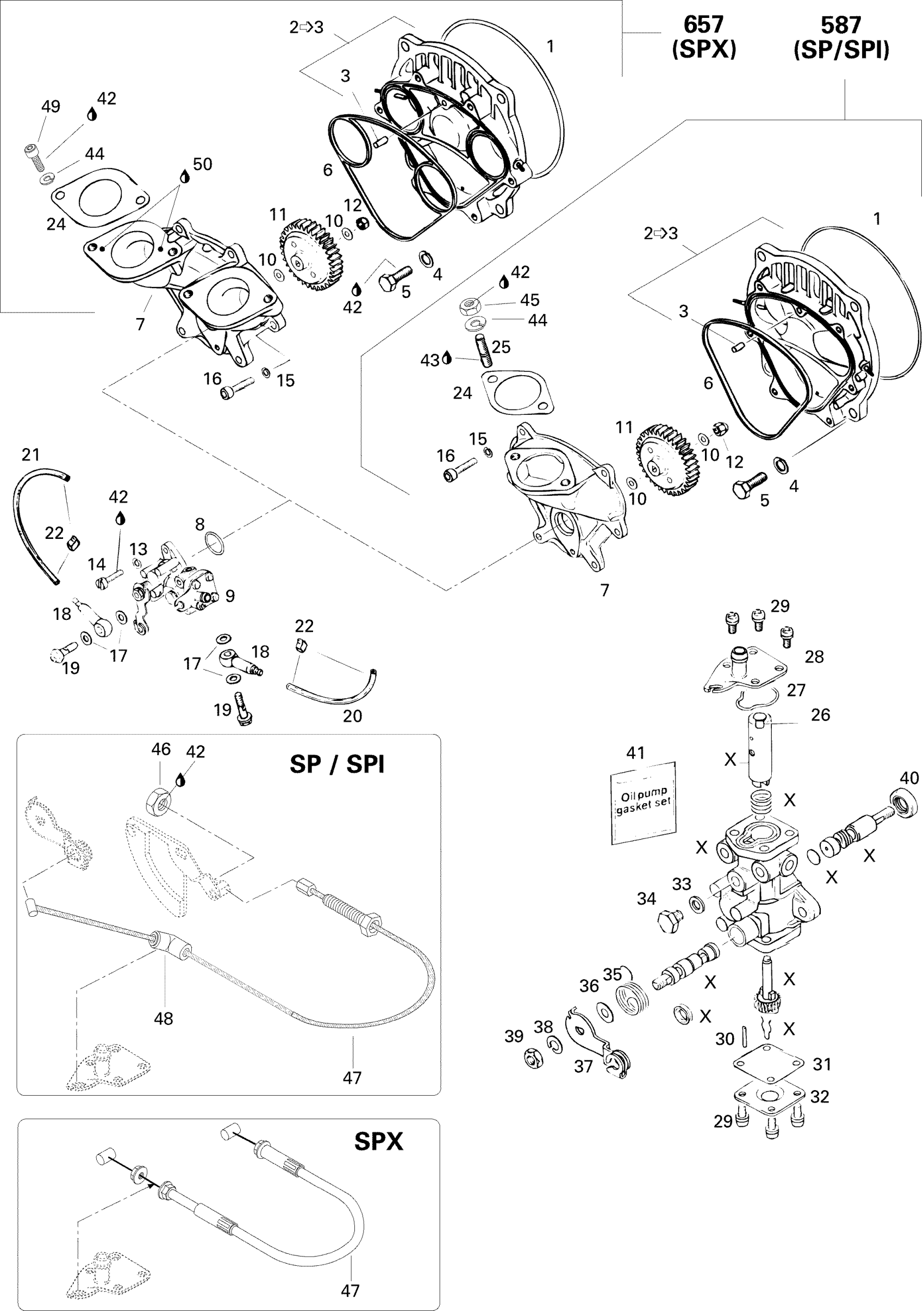

Sea-doo SP, 5876, 1996 02- Oil Injection Pump SP, SPI Diagram
#
1
O-RING - Call your local BRP dealership
293300023
Unavailable
2
Rotary Valve Cover (Simple Intake) | Includes 2 to 3
290810500
Unavailable
3
Drive Pin 5 X 10
420929650
$1.68
4
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
5
Hex. Screw M8 X 20
207182044
$0.74
6
Rubber Ring
290850160
Unavailable
7
Oil Pump Flange
290911173
Unavailable
8
O-RING - Call your local BRP dealership
293300018
Unavailable
9
OIL PUMP ASS'Y - Call your local BRP dealership | (Incl. It. 26-40) SP 5879.
275000085
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 41 Teeth
290935945
Unavailable
12
Elastic Stop Nut M6
232561414
$0.55
13
Lock Washer
290845389
Unavailable
14
Cylindrical Slotted Screw M5 x 16
215951660
Unavailable
15
Lock Washer 6 mm
290845381
Unavailable
16
Socket Head Screw M6 X 20
205062060
$2.32
17
Sealing Washer
404146600
$2.97
18
Valve Ass’Y
420956010
$17.53
19
Valve Bolt M6 x 16
290241830
Unavailable
20
Oil Hose 1500Mm Long
219704404
$17.26
21
Oil Hose 1500Mm Long
219704404
$17.26
22
Clamp 3.5 mm
290853843
Unavailable
24
Gasket
290850373
Unavailable
25
Stud M8 x 19 | SP 5879.
290940173
Unavailable
26
Retainer
290256085
Unavailable
27
O-RING - Call your local BRP dealership
293300019
Unavailable
28
Pump Upper Plate
290956340
Unavailable
29
Screw with Lock Washer 4 mm
290241975
Unavailable
30
Stop Pin
290929900
Unavailable
31
Gasket
290850200
Unavailable
32
Pump Lower Plate
290956031
Unavailable
33
Gasket
290227505
Unavailable
34
Hex. Screw M6 x 8
290841583
Unavailable
35
Spring
290838114
Unavailable
36
Washer 6.2 mm
290227665
Unavailable
37
Lever Control
290848162
Unavailable
38
Lock Washer 6 mm
290845381
Unavailable
39
Hex. Nut M6
290242623
Unavailable
40
Oil Seal
293200038
Unavailable
41
OIL PUMP GASKET SET - Call your local BRP dealership
290995045
Unavailable
42
Loctite 243, 10 ml
293800060
$21.49
43
Sealant Loctite 648
219703000
$45.99
44
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
45
Hex. Nut M8
232081600
$1.47
46
Hex. Nut M6
232160600
$1.15
47
Injection Cable
270000163
Unavailable
48
CABLE GUIDE - Call your local BRP dealership
270000187
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Engine Gasket Set (Not Shown)
290993878
Unavailable
52
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290993877
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
