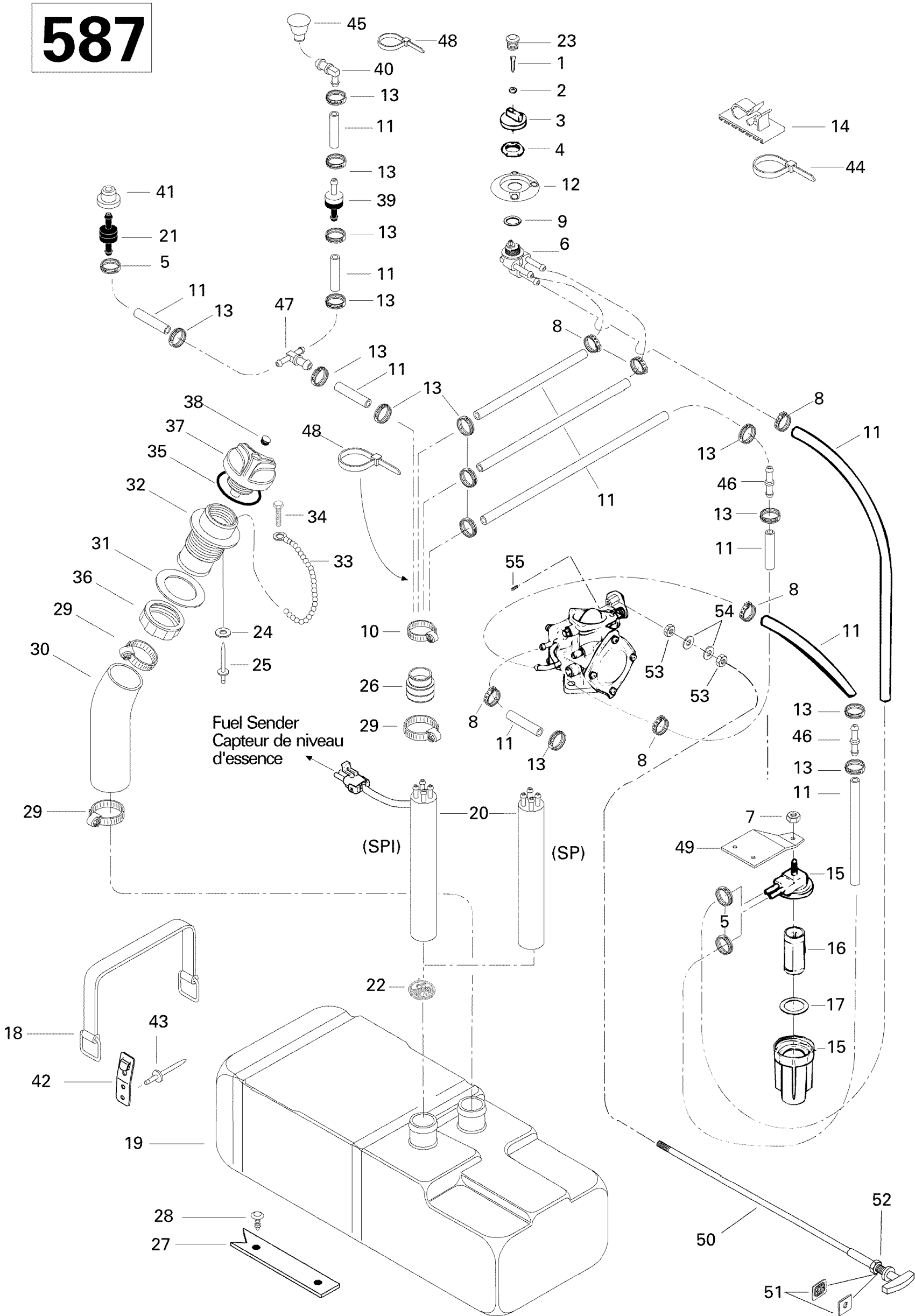

Sea-doo SP, 5876, 1996 Fuel System SP Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.55

3

Fuel Valve Knob (Blue Violet)

275500188

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Clamp Caillau

293650062

Unavailable

6

Fuel Valve

275500098

$43.99

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Oetiker Clamp

293650042

$3.09

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650035

$7.29

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Plate-Valve (Violet)

275500189

Unavailable

13

CAILLAU CLIC CLAMP - Call your local BRP dealership

293650063

Unavailable

14

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

Strap

293850023

Unavailable

19

FUEL TANK - Call your local BRP dealership

275500109

Unavailable

20

Baffle Ass'y (Incl. 13, 22) | SP 5879.

275500296

Unavailable

21

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

22

Fuel Filter

275500249

Unavailable

23

Plug-Bumper (B. Violet)

275500190

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.55

25

Pop Rivet 1/8"

390407900

$1.49

26

Tube Adapter

275500111

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

$0.99

29

Tridon Clamp

293650023

$13.49

30

Filler Hose Neck

275500110

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

Chain

275500168

Unavailable

34

Screw K40 X 10

241140060

$1.48

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve This part replaces 275500087.

275501246

$10.99

40

Male Connector

414580700

$4.12

41

Grommet

293720029

$1.59

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.56

44

Tie Wrap 142 mm

293750002

$1.25

45

Rubber Washer

293830011

Unavailable

46

Straight Fitting

293710039

$7.59

47

T-Fitting | Europe

293710024

$14.75

48

Tie-Rap 180 mm

414115200

$0.11

49

Fuel Filter Support

275500113

Unavailable

50

Choke Cable

277000120

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut

211100007

Unavailable

53

Hex. Nut M6

232160600

$1.15

54

Stainless Flat Washer M6

234061600

$0.33

55

Allen Screw M4 x 6

210100014

Unavailable
