02- Carburetor SP

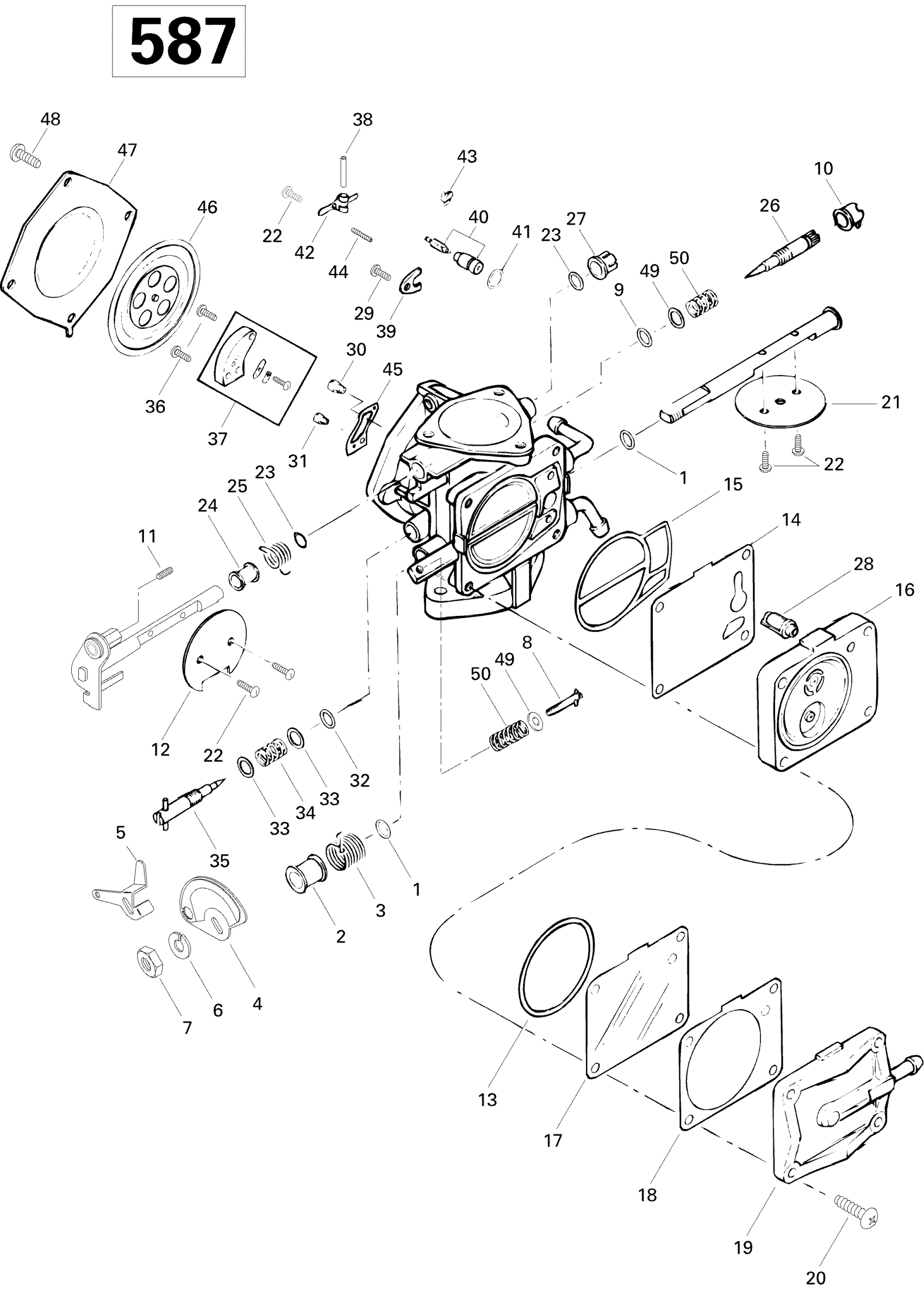

Sea-doo SP, 5876, 1996 02- Carburetor SP Diagram
#
1
Carburetor Ass'y (BN38-34-92) | EXPLORER 5824 MAG.
270500203
Unavailable
1
Sealing Ring
270500065
Unavailable
2
RING - Call your local BRP dealership
270500192
Unavailable
3
Spring
270500191
Unavailable
4
Throttle Lever Ass'y | SP 5879.
270500061
Unavailable
5
Throttle Lever | SP 5879.
270500172
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500012
Unavailable
8
Screw Ass'y
270500137
Unavailable
9
O-RING - Call your local BRP dealership
270500144
Unavailable
10
Cap
270500154
Unavailable
11
Allen Screw M4 x 6
210100014
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
O-RING - Call your local BRP dealership
270500102
Unavailable
14
GASKET - Call your local BRP dealership
270500103
Unavailable
15
O-Ring
270500104
Unavailable
16
Body Pump Ass'y
270500105
Unavailable
17
DIAPHRAGM - Call your local BRP dealership
270500106
Unavailable
18
Gasket
270500146
Unavailable
19
PUMP COVER - Call your local BRP dealership
270500108
Unavailable
20
SCREW - Call your local BRP dealership
270500143
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Sealing Ring
270500064
Unavailable
24
Ring
270500110
Unavailable
25
Spring | SP 5879.
270500147
Unavailable
26
Adjuster Screw
270500113
Unavailable
27
Ring
270500114
Unavailable
28
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
29
Screw And Spring Washer
270500155
Unavailable
30
MAIN JET 142.5 - Call your local BRP dealership | CHALLENGER 1800 5679 MAG.
270500209
Unavailable
31
Pilot Jet 65
270500117
Unavailable
32
O-RING - Call your local BRP dealership
270500119
Unavailable
33
Washer
270500018
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
36
SCREW - Call your local BRP dealership
270500123
Unavailable
37
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
38
Pin
270500038
Unavailable
39
PLATE - Call your local BRP dealership
270500125
Unavailable
40
Needle Valve 2.0
270500208
$31.99
41
O-RING - Call your local BRP dealership
270500127
Unavailable
42
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
43
CLIP - Call your local BRP dealership
270500129
Unavailable
44
Spring
270500130
Unavailable
45
GASKET - Call your local BRP dealership
270500131
Unavailable
46
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
47
COVER - Call your local BRP dealership
270500133
Unavailable
48
Screw | EXPLORER 5824 PTO.
270500190
Unavailable
49
Washer
270500136
Unavailable
50
SPRING - Call your local BRP dealership
270500091
Unavailable
