01- Cylinder And Exhaust Manifold 587

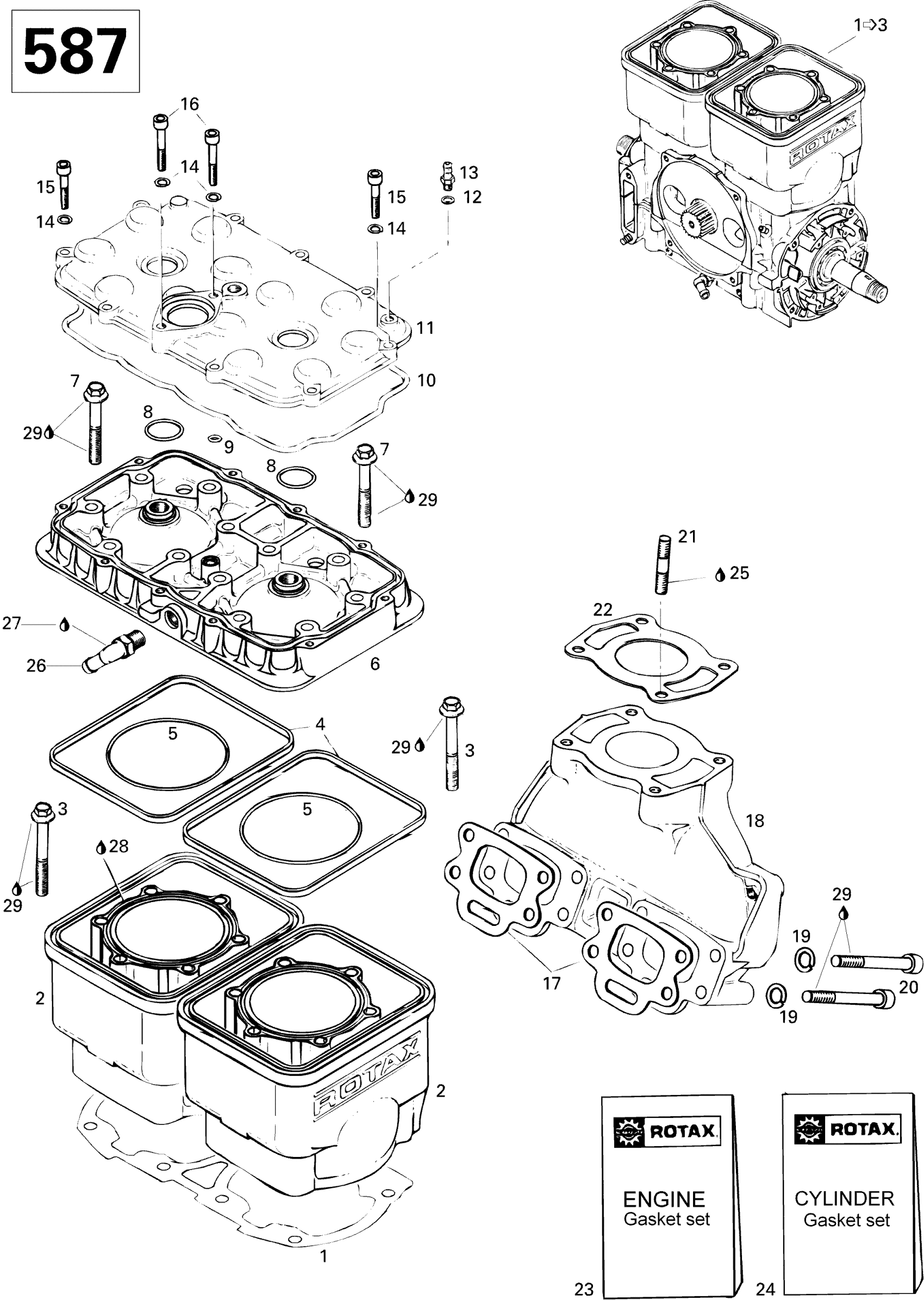

Sea-doo SP, 5876, 1996 01- Cylinder And Exhaust Manifold 587 Diagram
#
Description
Price
1
Short Block Ass‘y | Includes 1 to 20 Except 2,4,5
290881444
Unavailable
1
Cylinder Gasket 0.5 mm
290931161
Unavailable
2
Cylinder with Sleeve (White)
290913376
Unavailable
3
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
4
RUBBER RING - Call your local BRP dealership This part replaces 290850040.
420850040
Unavailable
5
O-Ring This part replaces 420850540.
293300026
$3.39
6
Head Cylinder (White)
290913352
Unavailable
7
Hex. Flange Screw M8 x 55
290240328
Unavailable
8
O-Ring
420430782
$5.39
9
O-Ring
290430200
Unavailable
10
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
11
Cylinder Head Cover (White)
290913362
Unavailable
12
Sealing Ring
290830890
Unavailable
13
Hose Fitting 6 mm
290940557
Unavailable
14
Lock Washer 6 mm
290845381
Unavailable
15
Socket Head Screw M6 X 25
205062560
$1.69
16
Socket Head Screw M6 X 35
205063560
$2.22
17
Gasket
290850635
Unavailable
18
Exhaust Manifold (White)
290978348
Unavailable
19
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
20
Allen Screw M8 x 75
290841833
Unavailable
21
Stud M8 x 26
420941014
$14.22
22
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
23
Engine Gasket Set (Not Shown)
290993878
Unavailable
24
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290993877
Unavailable
25
Loctite 648, 5 gr.
293899788
Unavailable
26
Elbow Fitting 90° | Without Catalyst
293700023
$20.99
27
Was 293800013 Loctite 56765
219704454
$65.99
28
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
29
Dow Corning 111, 150 g
413707000
$59.99
30
Gasket (Not Shown)
290830906
Unavailable
