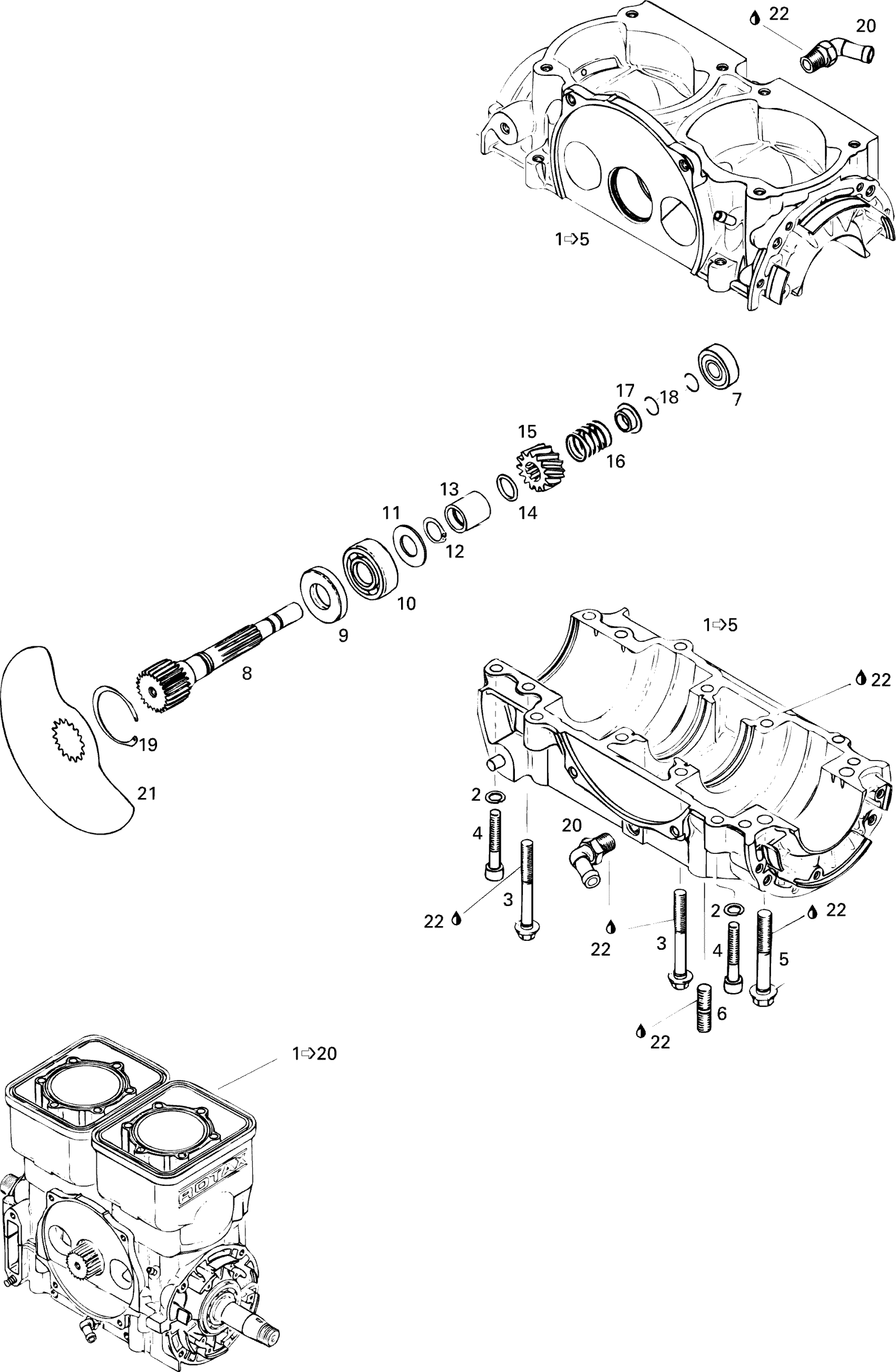

Sea-doo SP, 5876, 1996 Crankcase And Rotary Valve (587) Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 20 Except 2,4,5

290881444

Unavailable

1

Crankcase Ass'y «587» (White) | Includes 1 to 5

290887226

Unavailable

2

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

3

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

4

Socket Head Screw M8 X 45

205084560

$3.59

5

Flange Screw M10 x 73,5

290941333

Unavailable

6

STUD M10 X 25, PTO - Call your local BRP dealership

290940798

Unavailable

7

Ball Bearing

420932797

$19.99

8

ROTARY VALVE SHAFT - Call your local BRP dealership

290837251

Unavailable

9

OIL SEAL - Call your local BRP dealership

290930580

Unavailable

10

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

11

Shim

290227439

Unavailable

12

SNAP RING - Call your local BRP dealership

420845450

Unavailable

13

Distance Sleeve

290847282

Unavailable

14

O-Ring

293300024

$8.57

15

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

16

Spring

290938810

Unavailable

17

Spring Seat

290827430

Unavailable

18

Circlip

290845160

Unavailable

19

Lock Ring

420945880

$4.44

20

Angular Tube

420922242

$14.83

21

Rotary Valve (147°)

290924508

Unavailable

22

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

23

Engine Gasket Set (Not Shown)

290993878

Unavailable
