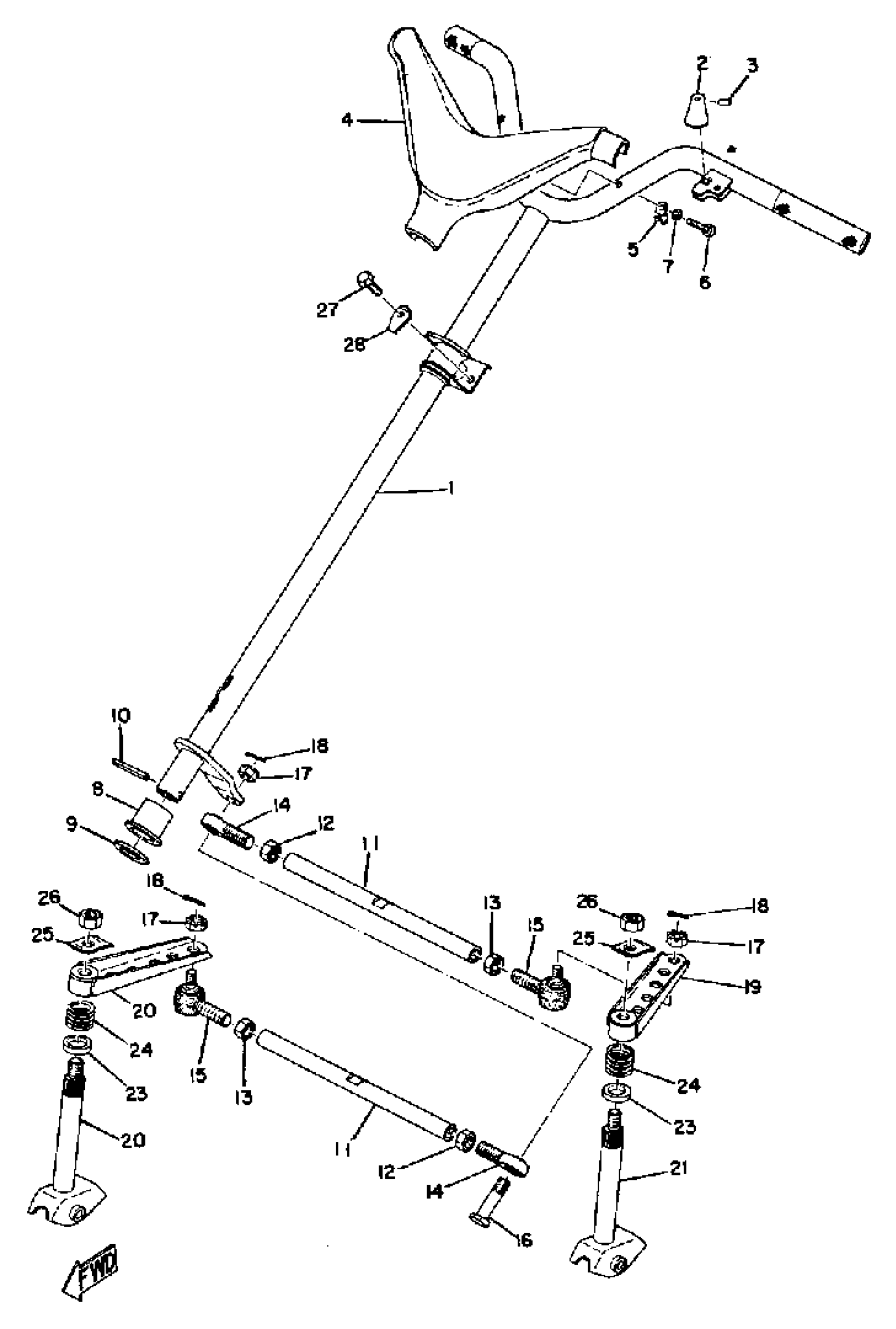

Yamaha SM292F 1974 STEERING Diagram

#

Description
Price

1

STRG COLUMN ASSEMBLY

867-23810-00-00

Unavailable

2

LEVER, LOCK

(803-83965-00-00)

Unavailable

3

PIN, SPEC''L SHAPE

(90249-04022-00)

Unavailable

4

PAD, STEERING

(863-23815-01-00)

Unavailable

5

CLAMP

(90462-08003-00)

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

BEARING, STRG LOWER

(853-23875-00-00)

Unavailable

9

BEARING, STEERING

(841-23812-01-00)

Unavailable

10

PIN, SPRING

91609-60045-00

Unavailable

11

ROD, STEERING RELAY

(826-23821-00-00)

Unavailable

12

NUT, HEXAGON SMALL

95317-12700-00

$8.49

13

NUT (821-23834-00)

90170-12054-00

$8.49

14

JOINT, UNIVERSAL 1

861-23841-00-00

Unavailable

15

JOINT, UNIVERSAL 2

(821-23845-90-00)

Unavailable

16

BOLT

(90109-10222-00)

Unavailable

17

NUT, SLOTTED

95306-10900-00

Unavailable

18

PIN, COTTER(6L5)

91490-25030-00

Unavailable

19

ARM, OUTSIDE 1

(841-23851-01-00)

Unavailable

20

ARM, OUTSIDE 2

841-23852-01-00

Unavailable

21

COLUMN, SKI 1

853-23853-01-00

Unavailable

22

COLUMN, SKI 2

853-23854-01-00

Unavailable

23

SPACER

90560-20037-00

Unavailable

24

SPRING, COMPRESSION

90501-35154-00

Unavailable

25

WASHER, LOCK

90215-12037-00

Unavailable

26

NUT(3DM)

95304-12600-00

Unavailable

27

BOLT(3DM)

97024-06020-00

Unavailable

28

WASHER, LOCK

(90215-06038-00)

Unavailable
