1974 Yamaha SM292F Speedometer Unit Diagram

← All diagrams

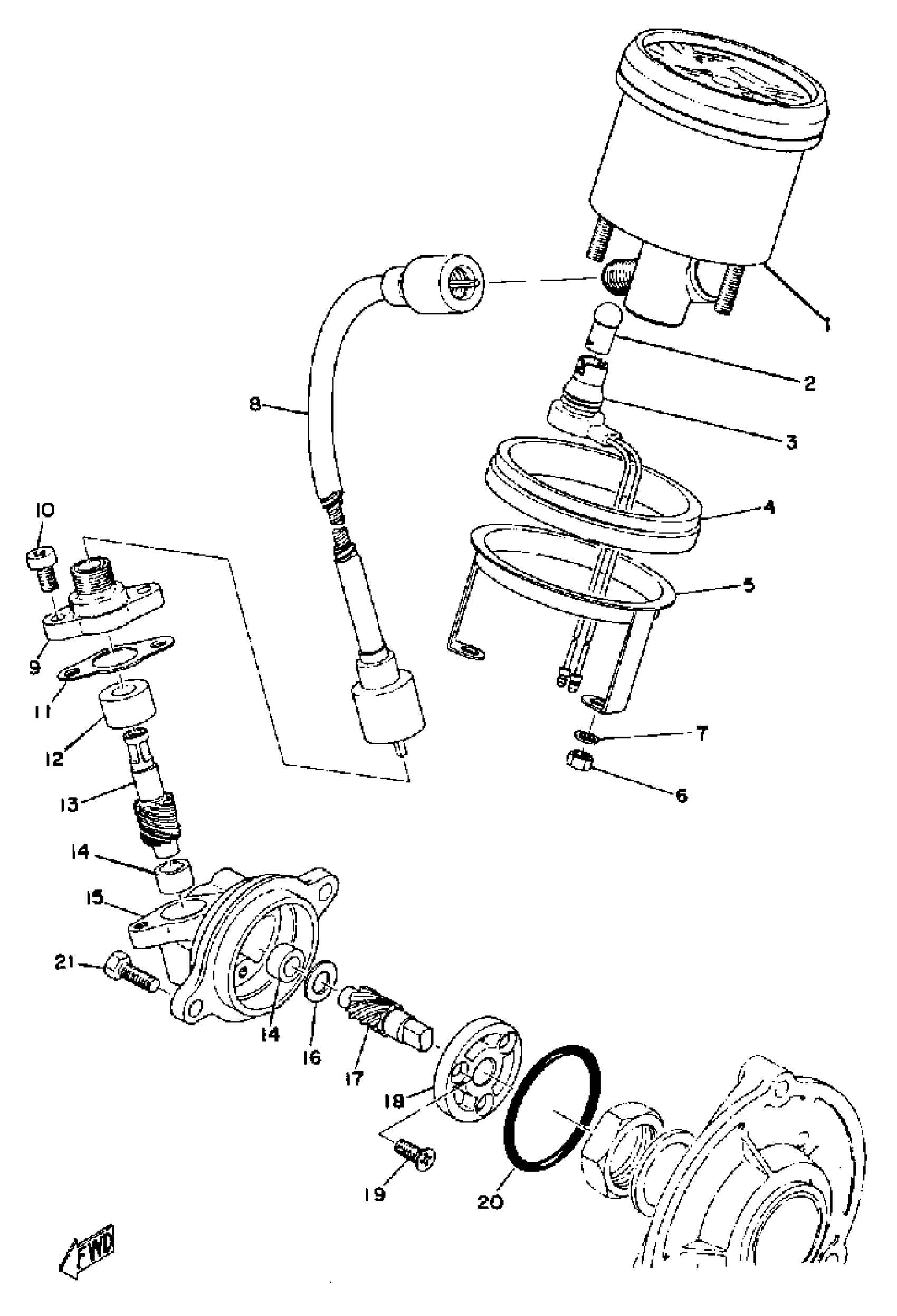

Find the part on the Speedometer Unit diagram for your 1974 Yamaha SM292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SM292F Speedometer Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(863-83510-41-00)

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

. DAMPER

861-83523-40-00

1
Out of stock

5

PLATE, FITTING

863-83514-40-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SPEEDOMETER CABLE

839-83550-01-00

1
Out of stock

9

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

10

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

11

GASKET

810-47727-11-00

1
Out of stock

12

BUSH, SOLID

90380-08005-00

1
Out of stock

13

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

14

BUSH, SOLID

(90380-08002-00)

1
Out of stock

15

HOUSING

8E6-47711-10-00

1
Out of stock

16

SHIM

810-47717-10-00

1
Out of stock

17

GEAR, DRIVE

810-47731-11-00

1
Out of stock

18

JOURNAL

853-47712-10-00

1
Out of stock

19

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

20

O-RING

93210-43141-00

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
