1974 Yamaha SM292F Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1974 Yamaha SM292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

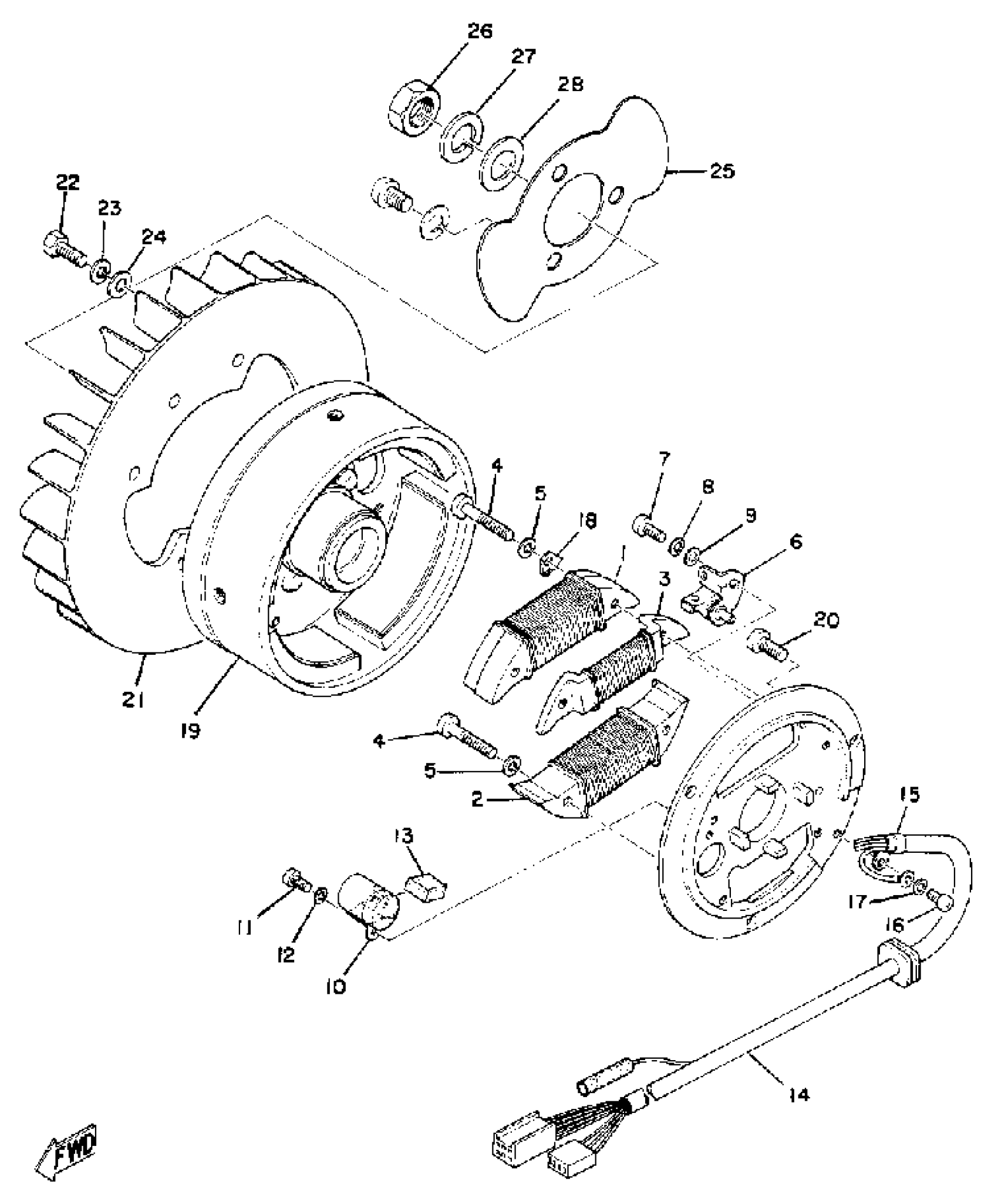

1974 Yamaha SM292F Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. COIL, SOURCE

839-81312-20-00

1
Out of stock

1

FLYWHL MAGNETO ASSEMBLY

(860-81300-20-00)

1
Out of stock

2

COIL, LIGHTING 1

(839-81313-20-00)

1
Out of stock

3

COIL, LIGHTING 2

(839-81314-20-00)

1
Out of stock

4

. SCREW, PAN HEAD

802-81345-20-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1
Out of stock

7

SCREW, PAN HEAD

110-81346-21-00

1
Out of stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1
Out of stock

10

. CONDENSER 1

802-81325-90-00

1
Out of stock

11

SCREW, PAN HEAD

110-81346-21-00

1
Out of stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

13

. LUBRICATOR

116-81331-20-00

1
Out of stock

14

LEAD WIRE ASSEMBLY

(839-81315-21-00)

1
Out of stock

15

CLAMP, LEAD

104-81328-20-00

—
Out of stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

18

PLATE, TIMING

(812-81332-20-00)

1
Out of stock

19

ROTOR ASSEMBLY

(860-81350-20-00)

1
Out of stock

20

SCREW, PAN

98507-06014-00

—
Out of stock

21

FAN

(812-12611-00-00)

1
Out of stock

22

BOLT

90101-06127-00

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1
Out of stock

24

WASHER, PLATE

90201-06M08-00

1
Out of stock

25

COVER, HOLE

(812-81362-00-00)

1
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER(JN5)

92907-16100-00

—
Out of stock

28

WASHER, PLATE (32N)

90201-163G6-00

—
Out of stock
