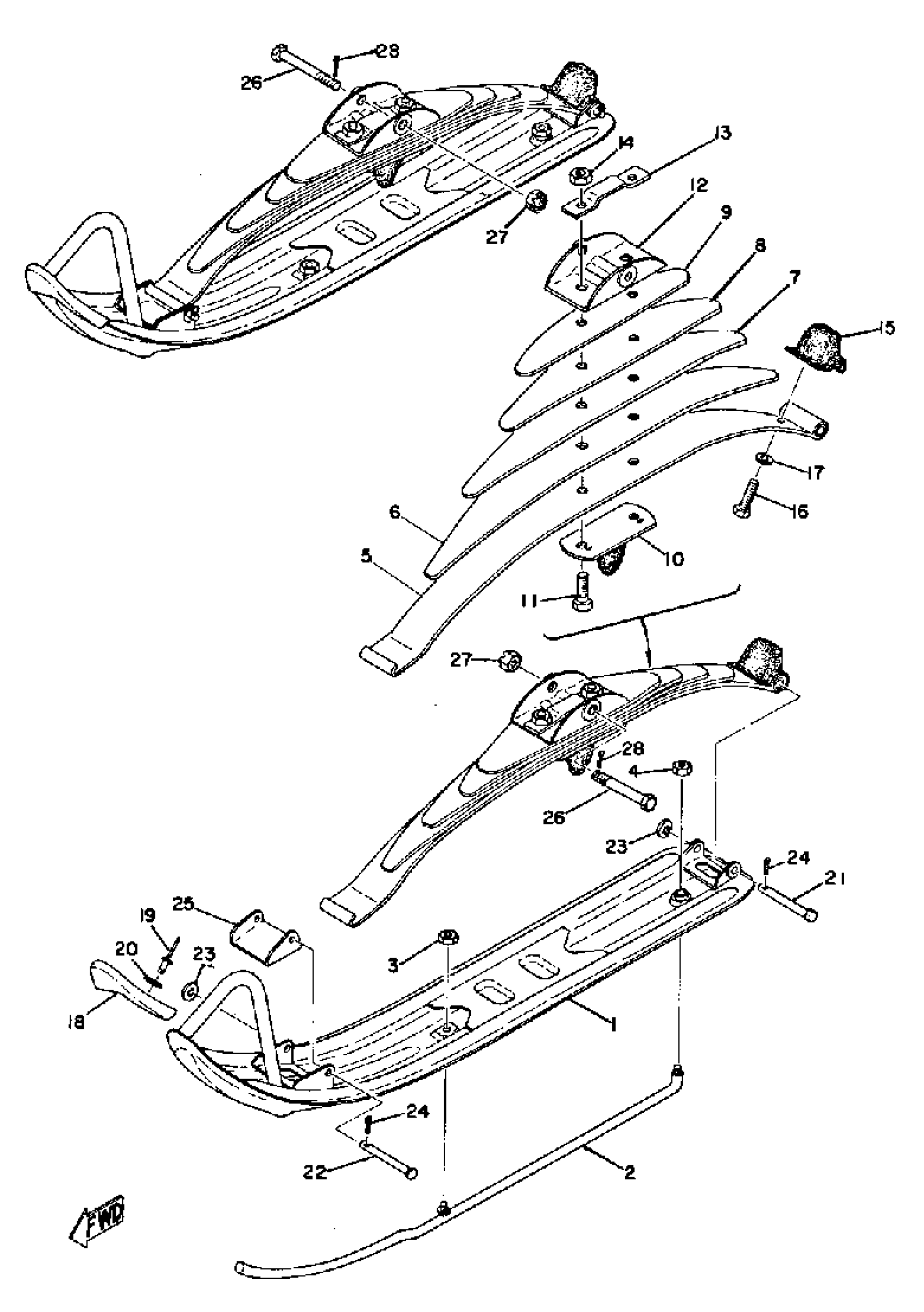

Yamaha SM292F 1974 SKI Diagram
#
1
SKI 1
(853-23710-01-00)
Unavailable
1
SPRING ASSEMBLY 1
(853-23760-00-00)
Unavailable
2
SKI RUNNER, (SV80)
853-23731-00-XX
Unavailable
2
SPRING ASSEMBLY 2
(853-23770-00-00)
Unavailable
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
NUT
90185-08055-00
$9.49
5
. LEAF 1
841-23761-02-00
Unavailable
6
LEAF 2
(841-23762-02-00)
Unavailable
7
LEAF 3
(841-23763-01-00)
Unavailable
8
. LEAF 4
841-23764-01-00
Unavailable
9
. LEAF 5
841-23771-01-00
Unavailable
10
. SEAT, SPRING 1
878-23768-00-00
Unavailable
11
. BOLT
90101-10060-00
Unavailable
12
. SADDLE 1
806-23766-00-00
Unavailable
13
WASHER, SPEC''L SHAP
(90209-10037-00)
Unavailable
14
NUT(6TD)
95337-10600-00
Unavailable
15
STOPPER 1
(841-23743-01-00)
Unavailable
16
BOLT (11T)
90101-06576-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
PROTECTOR, SKI
867-23747-00-00
Unavailable
19
RIVET, BLIND
90267-40029-00
Unavailable
20
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
21
PIN, CLEVIS
90240-08018-00
Unavailable
22
PIN, CLEVIS
90240-08019-00
Unavailable
23
WASHER(6TC)
92907-08200-00
Unavailable
24
PIN COTTER
91490-30025-00
Unavailable
25
PLATE, WEAR 1
853-23735-00-00
Unavailable
26
BOLT, WITH HOLE
90102-10023-00
Unavailable
27
NUT, SLOTTED
95306-10900-00
Unavailable
28
PIN, COTTER
91490-20025-00
Unavailable
