Description

Price

1

TANK, OIL

867-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

7

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

8

CLIP, PIPE 1

810-24356-00-00

Unavailable

9

CLAMP, HOSE

90460-09001-00

Unavailable

10

HOSE (806-24319-00)

90446-09051-00

Unavailable

11

STRAINER HOUSING ASSEMBLY

J10-13410-00-00

Unavailable

12

HOSE

90446-09052-00

Unavailable

13

CLIP, PIPE 1

810-24356-00-00

Unavailable

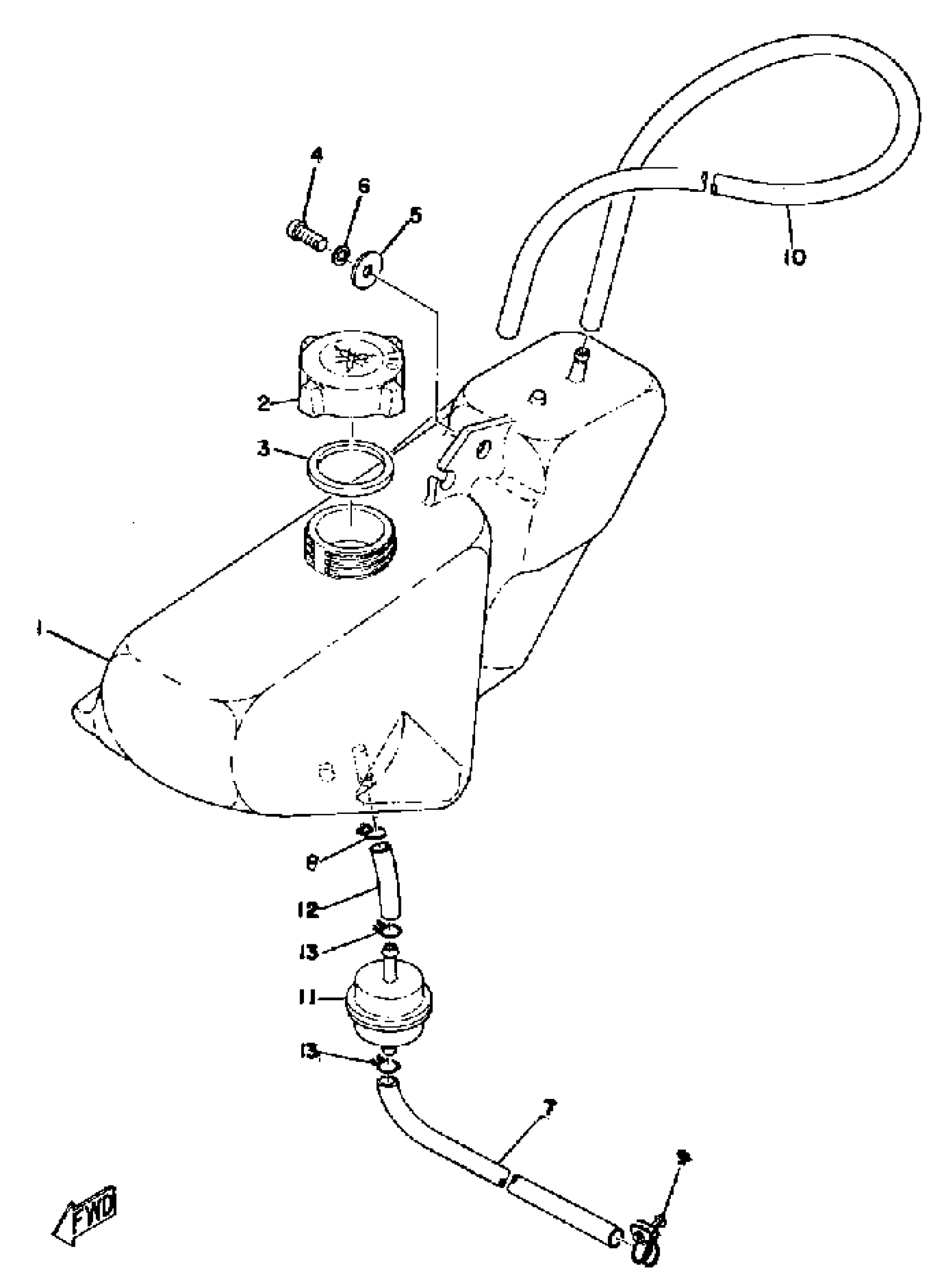

Yamaha SM292F 1974 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

WASHER, PLATE (4H7)

TUBE, FLEXIBLE VINYL(8AK)

CLIP, PIPE 1

CLAMP, HOSE

HOSE (806-24319-00)

STRAINER HOUSING ASSEMBLY

HOSE

CLIP, PIPE 1
