OIL PUMP

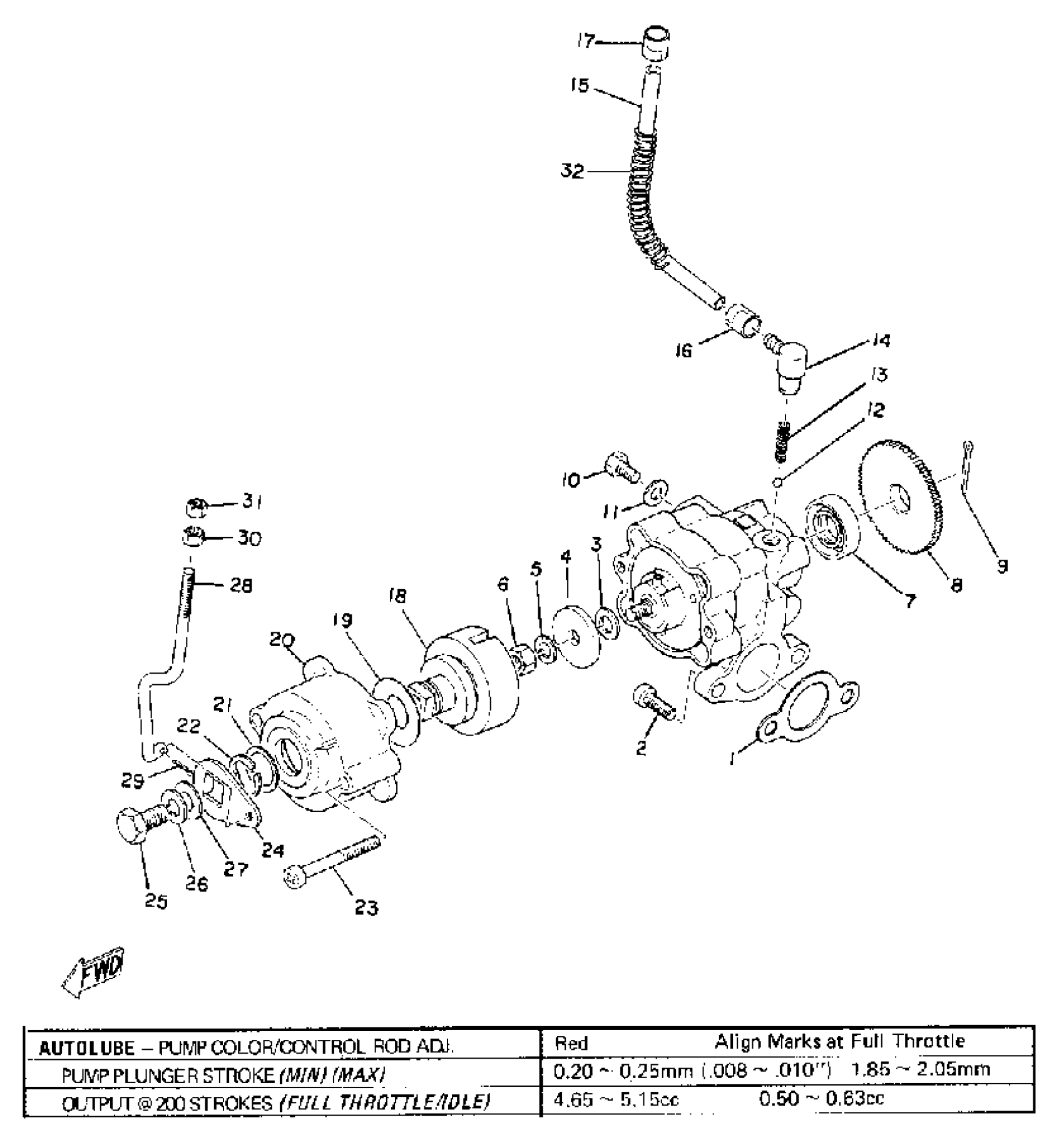

Yamaha SM292F 1974 OIL PUMP Diagram
#
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
1
OIL PUMP ASSEMBLY
(867-13101-00-00)
Unavailable
2
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
3
SHIM,PLUNGER
137-13137-00-10
$7.99
3
SHIM, PLUNGER
(137-13137-00-30)
Unavailable
4
PLATE, ADJUSTING
137-13138-01-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
NUT, HEXAGON (663)
95380-05600-00
$8.49
7
OIL SEAL (J10)
93101-10090-00
$8.49
8
PLATE, STARTER
(137-13128-00-00)
Unavailable
9
. PIN, COTTER
91401-12018-00
Unavailable
10
BOLT
(90109-04178-00)
Unavailable
11
GASKET 137131870000
90430-04004-00
$9.49
12
BALL
93505-32002-00
$2.92
13
SPRING (278-13169-00)
90501-02018-00
$9.49
14
NOZZLE
353-13552-01-00
Unavailable
15
HOSE (L700)
90445-05M07-00
Unavailable
16
CLIP (214-13164-00)
90468-02033-00
Unavailable
17
CLIP (214-13164-00)
90468-02033-00
Unavailable
18
SHAFT, PUMP CONTROL
860-13153-00-00
Unavailable
19
SEAL, GREASE
860-13119-00-00
Unavailable
20
COVER, AJST PULLEY
(812-13146-00-00)
Unavailable
21
SHIM
(812-13147-00-00)
Unavailable
22
CIRCLIP(J51)
99080-09600-00
Unavailable
23
SCREW, PAN
98507-04030-00
Unavailable
24
LEVER, PUMP CONTROL
(812-13156-00-00)
Unavailable
25
BOLT (661)
97013-06012-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
ROD, PUMP CONTROL
839-13157-01-00
Unavailable
29
. PIN, COTTER
91490-12012-00
Unavailable
30
NUT, HEXAGON (807-13139-00)
90170-03008-00
Unavailable
31
NUT, SELF-LOCKING (838-13139-00)
90185-03007-00
Unavailable
32
SPRING, COMPRESSION
(90501-04019-00)
Unavailable
