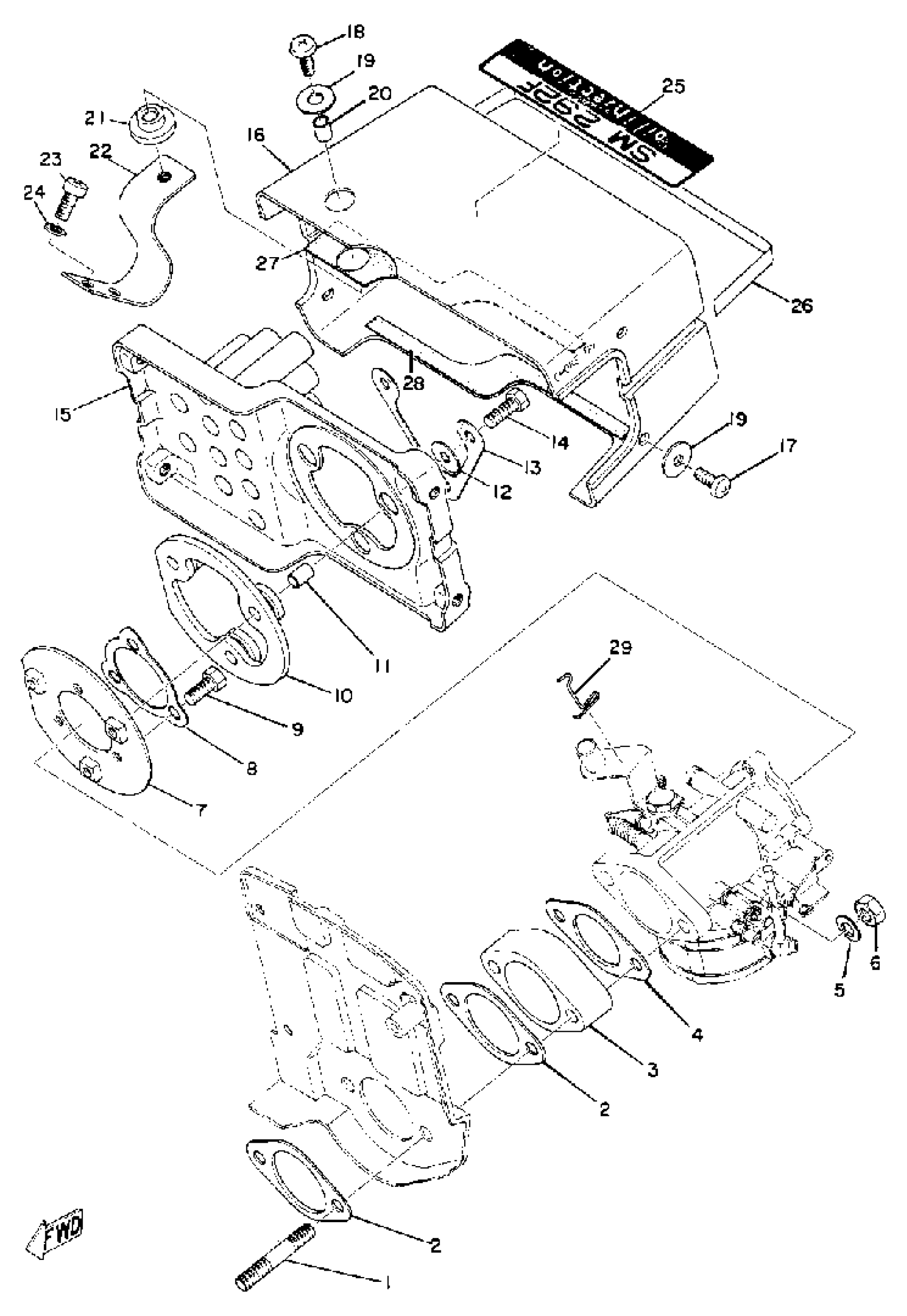

Yamaha SM292F 1974 INTAKE Diagram

#

Description
Price

1

BOLT, STUD

90116-08057-00

Unavailable

2

GASKET, MANIFOLD

839-13556-09-00

Unavailable

3

MANIFOLD, INTAKE

853-13555-00-00

Unavailable

4

GASKET, MANIFOLD

810-13556-09-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

. NUT

95380-08700-00

Unavailable

7

PLATE

(867-14477-00-00)

Unavailable

8

WASHER

(853-14475-00-00)

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

GROMMET

(864-14435-00-00)

Unavailable

11

COLLAR

(90387-06244-00)

Unavailable

12

WASHER, PLATE

90201-06380-00

$0.60

13

WASHER, LOCK

(864-14599-00-00)

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

SILENCER, INTAKE 1

(867-14431-00-00)

Unavailable

16

SILENCER, INTAKE 2

(867-14441-00-00)

Unavailable

17

SCREW, BINDING

98907-06016-00

Unavailable

18

SCREW, BIND

(91906-06018-00)

Unavailable

19

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

20

COLLAR

(90387-06244-00)

Unavailable

21

GROMMET

90480-15060-00

Unavailable

22

STAY 1

(867-14493-00-00)

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

EMBLEM 1

(867-77451-00-00)

Unavailable

26

EMBLEM 2

853-77452-00-00

Unavailable

27

SEAL

(864-14457-00-00)

Unavailable

28

SEAL

(864-14467-00-00)

Unavailable

29

CLAMP, THROTTLE

822-41222-00-00

Unavailable
