Description

Price

1

GASKET, EXHAUST PIPE

214-14613-09-00

$18.49

1

GASKET, EXHAUST

834-14613-09-00

Unavailable

2

NUT, RING

(853-14612-00-00)

Unavailable

3

BOLT (682)

97013-08025-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

GASKET, EXST PIPE

(812-14623-00-00)

Unavailable

6

SPRING, HOOK (864)

90506-20074-00

$9.49

7

EXHAUST PIPE ASSEMBLY L

(853-14610-00-00)

Unavailable

8

SPRING, MUFFLER

821-14773-00-00

$18.49

9

MUFFLER ASSEMBLY L

(853-14710-02-00)

Unavailable

10

BOLT

90109-08293-00

Unavailable

11

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

12

SPRING, MUFFLER

853-14773-02-00

Unavailable

13

SPACER

(90560-08065-00)

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

WASHER, PLATE

(90201-07080-00)

Unavailable

16

PROTECTOR, MUFF 1

(853-14718-00-00)

Unavailable

17

SPRING, COMPRESSION

(90504-30004-00)

Unavailable

18

BOLT(JA9)

90101-08691-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

20

WASHER, PLAIN

92990-08200-00

Unavailable

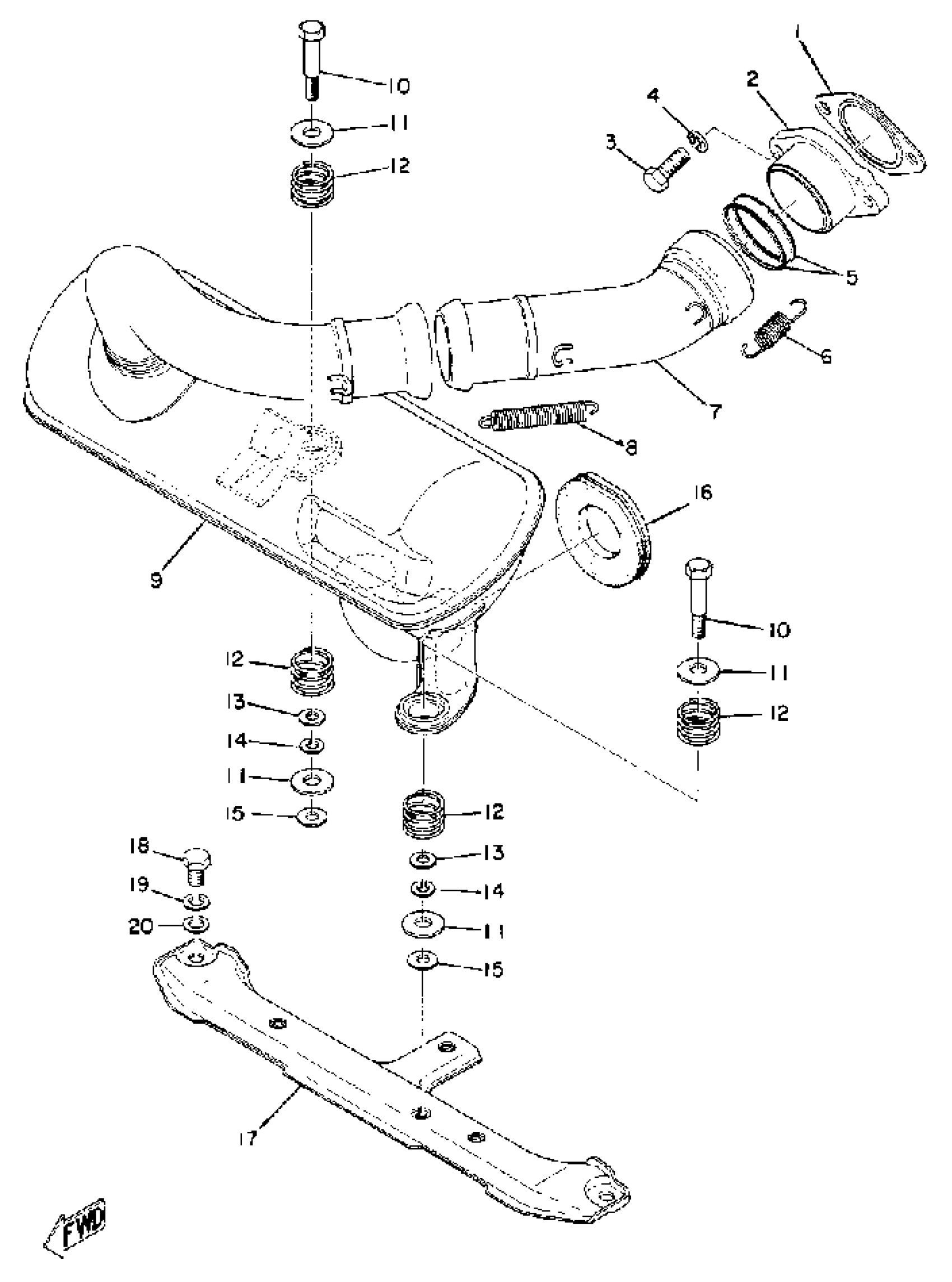

Yamaha SM292F 1974 EXHAUST Diagram

GASKET, EXHAUST PIPE

GASKET, EXHAUST

NUT, RING

BOLT (682)

YBS67-8 WASHER, SPRING

GASKET, EXST PIPE

SPRING, HOOK (864)

EXHAUST PIPE ASSEMBLY L

SPRING, MUFFLER

MUFFLER ASSEMBLY L

BOLT

WASHER, PLATE(3BM)

SPRING, MUFFLER

SPACER

YBS67-8 WASHER, SPRING

WASHER, PLATE

PROTECTOR, MUFF 1

SPRING, COMPRESSION

BOLT(JA9)

YBS67-8 WASHER, SPRING

WASHER, PLAIN
