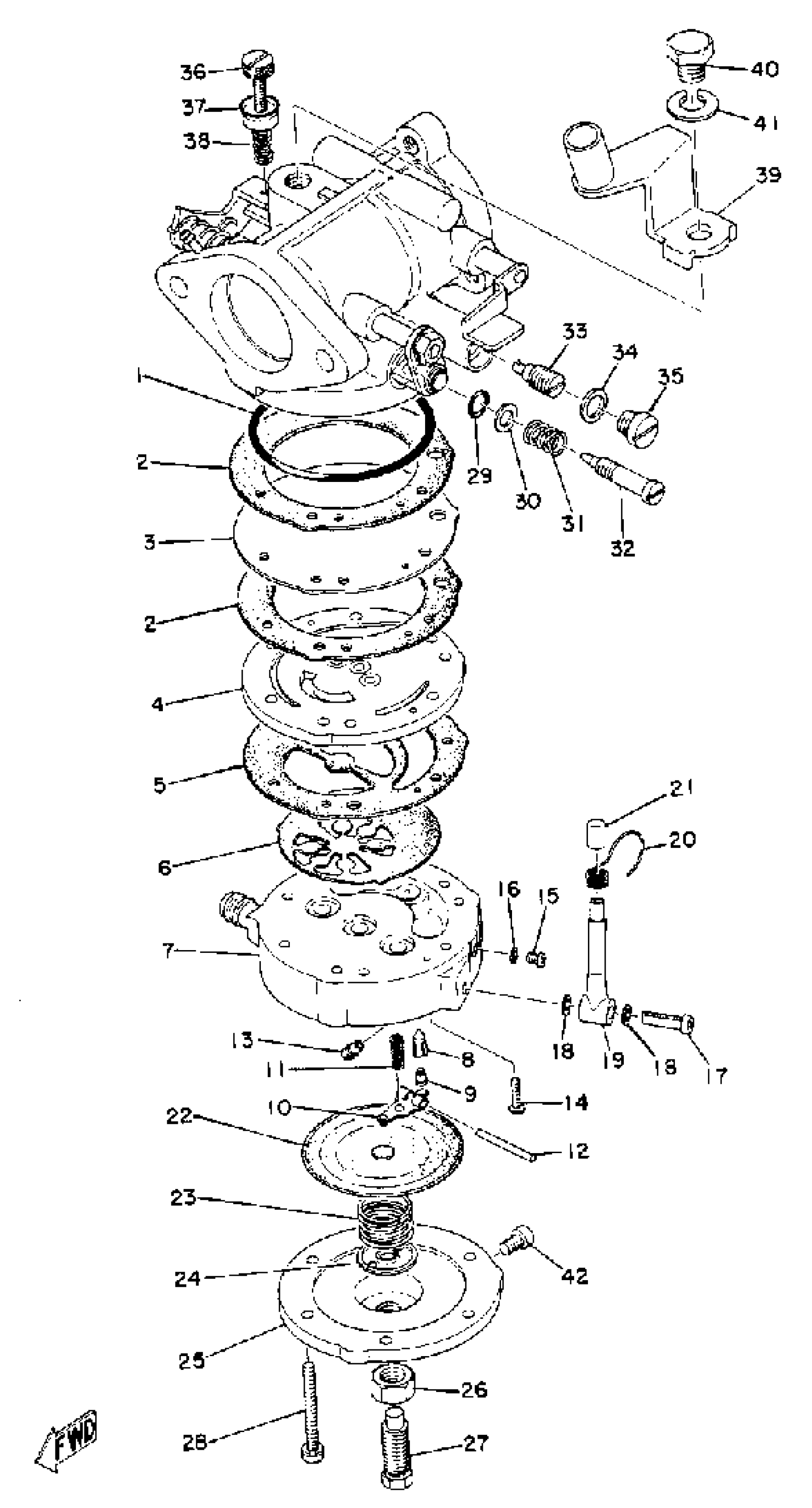

Yamaha SM292F 1974 CARBURETOR Diagram

#

Description
Price

1

. O-RING

806-14562-00-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(867-14501-00-00)

Unavailable

2

GASKET

838-14536-09-00

Unavailable

3

. DIAPHRAGM, PUMP

834-14541-00-00

Unavailable

4

BODY, PUMP 1

(838-14542-00-00)

Unavailable

5

GASKET

834-14553-09-00

Unavailable

6

VALVE,CHECK

806-14552-01-00

$56.99

7

BODY, PUMP 2

(853-14543-01-00)

Unavailable

8

VALVE

838-14546-00-00

$43.99

9

. PIN, FLOAT

676-14186-00-00

Unavailable

10

BODY, PUMP 3

(810-14544-01-00)

Unavailable

11

. SPRING

810-14556-00-00

Unavailable

12

PIN, FLOAT ARM

(806-14548-00-00)

Unavailable

13

. JET #80

853-14515-80-00

Unavailable

14

SCREW, FLAT

98707-03008-00

$7.49

15

SCREW

(806-14567-01-00)

Unavailable

16

. WASHER

810-14597-00-00

Unavailable

17

. SCREW

8A1-14592-00-00

Unavailable

18

. WASHER

806-14559-00-00

Unavailable

19

PIPE, AIRVENT

(853-14197-00-00)

Unavailable

20

CLIP

(824-14159-00-00)

Unavailable

21

. CAP, BLIND

853-24462-00-00

Unavailable

22

DIAPHRAGM

810-14545-00-00

Unavailable

23

SPRING

(810-14555-00-00)

Unavailable

24

. PIN, FLOAT

676-14186-00-00

Unavailable

25

BODY, PUMP 3

(810-14544-00-00)

Unavailable

26

. NUT

95380-08700-00

Unavailable

27

. SCREW, STOP

824-14565-00-00

Unavailable

28

SCREW

(824-14567-00-00)

Unavailable

29

. O-RING

824-14563-00-00

Unavailable

30

. WASHER

838-14596-00-00

Unavailable

31

SPRING, AJST SCREW

(824-14531-00-00)

Unavailable

32

SCREW, ADJUST

(853-14522-00-00)

Unavailable

33

. JET, MAIN #120

845-14516-20-00

Unavailable

33

. JET, MAIN #125 (125)

845-14516-25-00

Unavailable

33

. JET, MAIN #130 (130)

845-14516-30-00

Unavailable

34

WASHER

(810-14558-00-00)

Unavailable

35

SCREW

(845-14567-00-00)

Unavailable

36

SCREW, STOP

(867-14523-00-00)

Unavailable

37

COLLAR

(867-14578-00-00)

Unavailable

38

SPRING, AJST SCREW

(806-14533-00-00)

Unavailable

39

BRACKET, THROTTLE

(867-14571-00-00)

Unavailable

40

BOLT(62E)

97013-08012-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable
