Description

Price

1

SEC FXD SHV

(853-17660-00-00)

Unavailable

2

SEC SLIDING SHEAVE

(853-17670-00-00)

Unavailable

3

SHAFT, SECONDARY

(810-17681-00-00)

Unavailable

4

PIN, SPRING

91609-80040-00

Unavailable

5

SPRING, SECONDARY (805-17683-00)

805-17683-00-00

Unavailable

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

7

SHOE, RAMP

801-17688-10-00

Unavailable

8

COLLAR (812-17685-00)

90387-19149-00

Unavailable

9

SPROCKET, CHAIN DRIVE (11T)

812-17682-10-00

Unavailable

9

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

$14.49

9

SPROCKET,CHAIN DRIVE(13T)

812-17682-30-00

Unavailable

9

SPROCKET, CHAIN DRIVE (14T)

812-17682-40-00

Unavailable

9

SPRKT, CHAIN DR 15T

(812-17682-50-00)

Unavailable

10

COLLAR

(90387-17371-00)

Unavailable

11

COLLAR (818-17686-00)

90387-17130-00

Unavailable

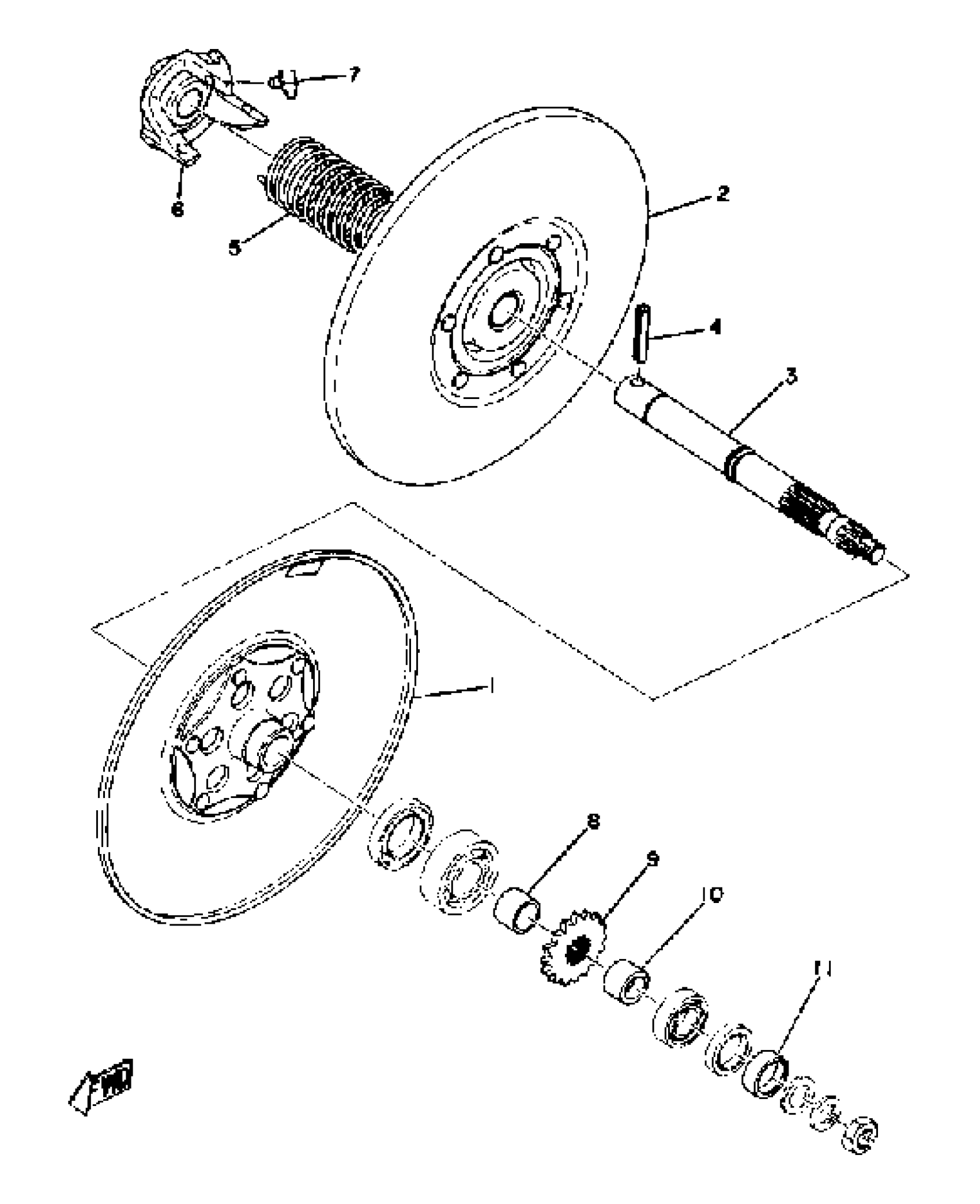

Yamaha SM292 1973 SECONDARY SHEAVE Diagram

SEC FXD SHV

SEC SLIDING SHEAVE

SHAFT, SECONDARY

PIN, SPRING

SPRING, SECONDARY (805-17683-00)

SEAT, SEC SPRINGSPRING

SHOE, RAMP

COLLAR (812-17685-00)

SPROCKET, CHAIN DRIVE (11T)

SPROCKET, CHAIN DRIVE(12T)

SPROCKET,CHAIN DRIVE(13T)

SPROCKET, CHAIN DRIVE (14T)

SPRKT, CHAIN DR 15T

COLLAR

COLLAR (818-17686-00)
