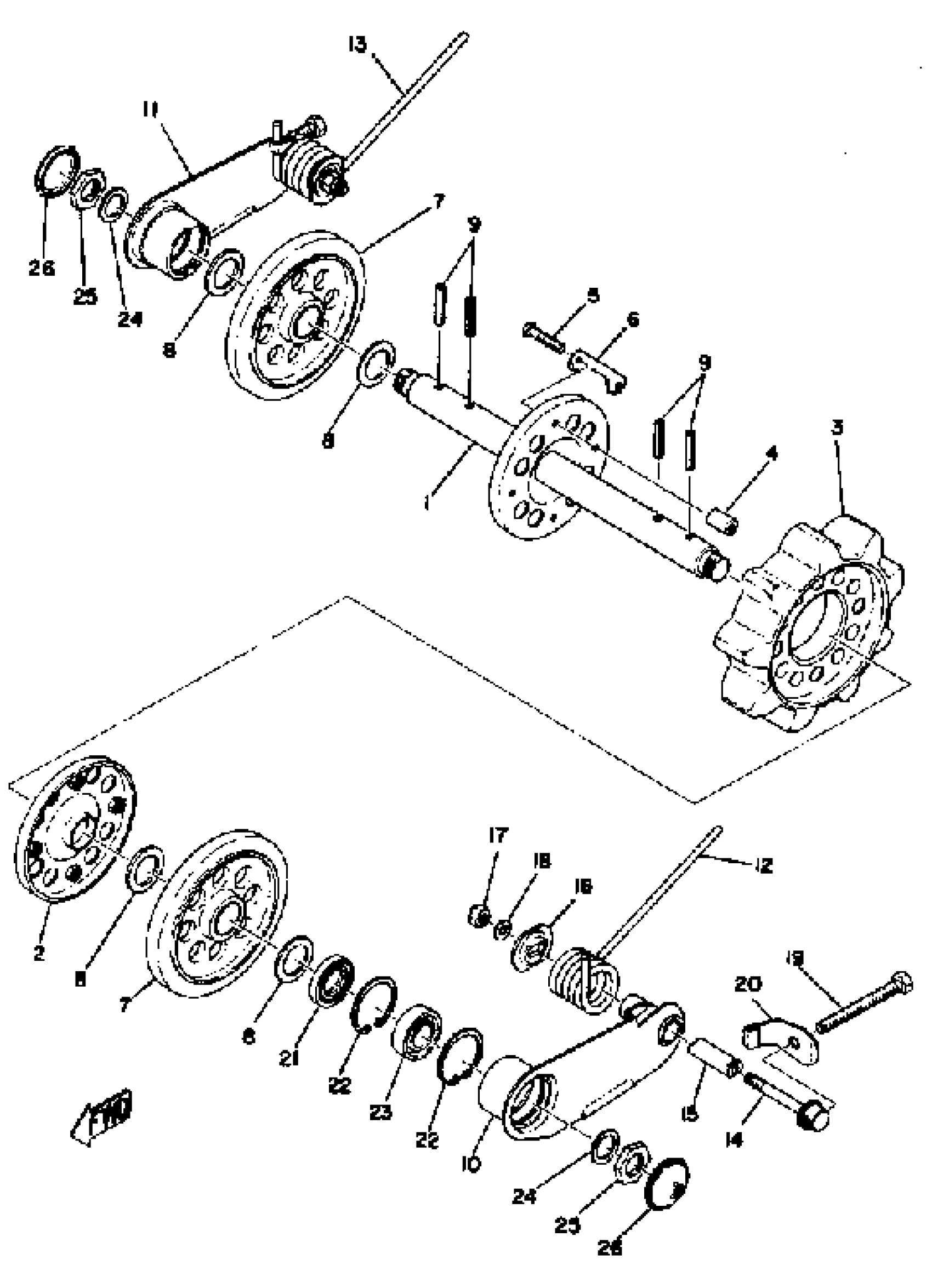

Yamaha SM292 1973 REAR AXLE Diagram

#

Description
Price

1

REAR AXLE

853-47520-01-00

Unavailable

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

RIM, SPROCKET WHL 2

853-47522-00-00

Unavailable

3

WHEEL, SPROCKET 2

810-47532-00-00

Unavailable

4

COLLAR

(90387-06021-00)

Unavailable

5

BOLT(3RV)

97014-06035-00

$2.75

6

WASHER, LOCK

90215-06100-00

Unavailable

7

GUIDE WHEEL

810-47530-00-00

Unavailable

8

WASHER, PLATE

90201-25499-00

Unavailable

9

PIN, SPRING

91609-60036-00

Unavailable

10

ARM PIVOT, REAR (L.H)

853-47361-00-00

Unavailable

12

SPRING, TORSION

90508-70104-00

Unavailable

13

SPRING, TORSION

90508-70123-00

Unavailable

14

SCREW, SPEC''L SHAPE (853-47367-01)

90149-08021-00

Unavailable

15

COLLAR

853-47369-00-00

Unavailable

16

WASHER, SPEC''L SHAP

90209-22027-00

Unavailable

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

Unavailable

20

WASHER, LOCK

90215-08069-00

Unavailable

21

OIL SEAL, SD-TYPE

93102-25110-00

Unavailable

22

CIRCLIP(5U8)

99009-42500-00

Unavailable

23

BEARING (5Y1)

93306-00426-00

Unavailable

24

WASHER (853)

90208-20008-00

Unavailable

25

CAP, WHEEL

818-47317-01-00

Unavailable

25

NUT, HEXAGON

90170-20102-00

Unavailable
