Description

Price

1

BOLT, STUD

(90116-08049-00)

Unavailable

2

GASKET, MANIFOLD

839-13556-09-00

Unavailable

3

MANIFOLD, INTAKE

853-13555-00-00

Unavailable

4

GASKET, MANIFOLD

810-13556-09-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

. NUT

95380-08700-00

Unavailable

7

PLATE

(853-14477-00-00)

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

BOLT (661)

97013-06012-00

$5.60

12

SILENCER, INTAKE 1

(867-14431-00-00)

Unavailable

13

SILENCER, INTAKE 2

(867-14441-00-00)

Unavailable

14

SCREW, BINDING

98907-06016-00

$9.49

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

EMBLEM 1

(853-77451-00-00)

Unavailable

17

EMBLEM 2

853-77452-00-00

Unavailable

18

CLAMP, THROTTLE

822-41222-00-00

Unavailable

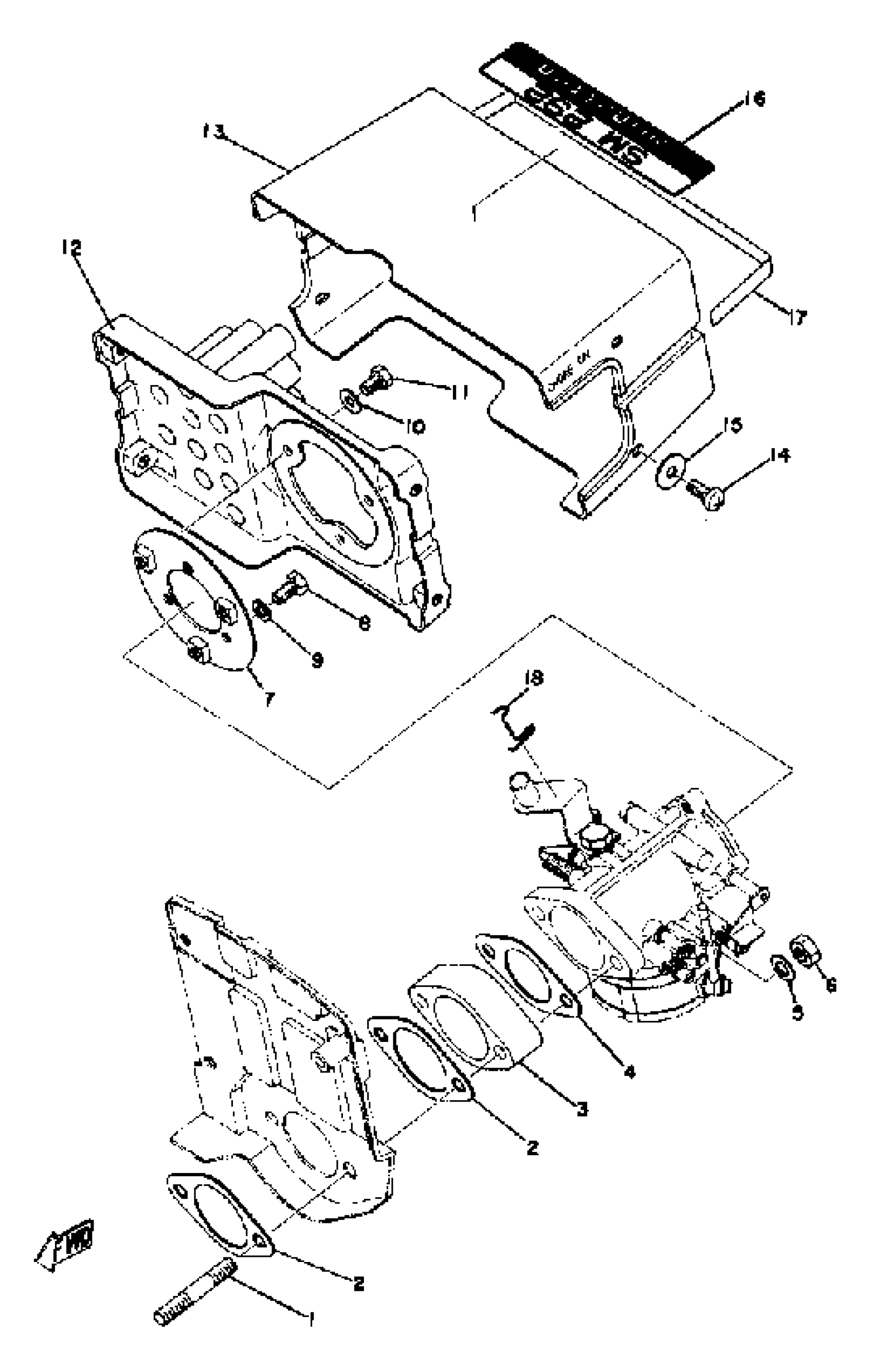

Yamaha SM292 1973 INTAKE Diagram

BOLT, STUD

GASKET, MANIFOLD

MANIFOLD, INTAKE

GASKET, MANIFOLD

YBS67-8 WASHER, SPRING

. NUT

PLATE

BOLT (661)

WASHER, SPRING

YBS66-6 WASHER, PLAIN

BOLT (661)

SILENCER, INTAKE 1

SILENCER, INTAKE 2

SCREW, BINDING

WASHER, PLATE 8221447500

EMBLEM 1

EMBLEM 2

CLAMP, THROTTLE
