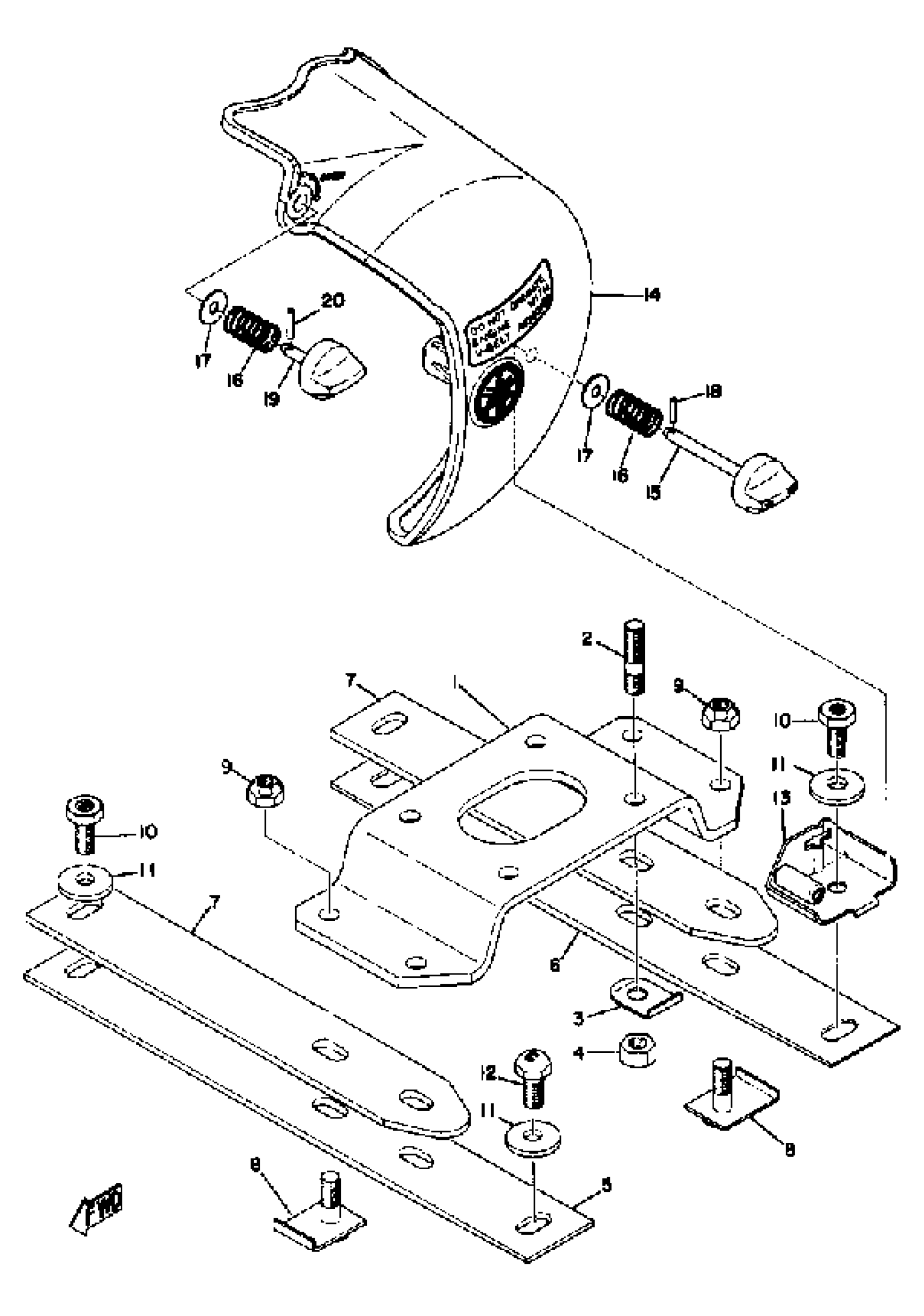

Yamaha SM292 1973 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(839-21411-01-00)

Unavailable

2

BOLT, STUD

(90116-10084-00)

Unavailable

3

WASHER, LOCK

(839-21493-00-00)

Unavailable

4

NUT, SELF LOCKING

90185-10031-00

Unavailable

5

BRACKET, ENGINE 2

(839-21419-01-00)

Unavailable

6

BRACKET, ENGINE 3

839-21429-01-00

Unavailable

7

BRACKET, ENG LOWER

(839-21489-00-00)

Unavailable

8

BOLT, ENG MNTNG 2

(839-21482-00-00)

Unavailable

9

NUT, SELF-LOCKING

90185-10030-00

Unavailable

10

BOLT

90101-10513-00

Unavailable

11

WASHER, CONICAL SPR

90208-10013-00

Unavailable

12

BOLT, DOME HEAD

(90106-10015-00)

Unavailable

13

BRACKET 1

844-77315-00-00

Unavailable

14

GUARD, DRIVE

(841-77311-00-00)

Unavailable

15

KNOB

(853-77324-00-00)

Unavailable

16

SPRING 1

806-77325-00-00

Unavailable

17

WASHER, PLATE

90201-06095-00

Unavailable

18

PIN, SPRING

91690-25016-00

Unavailable

19

KNOB

(806-77324-00-00)

Unavailable

20

PIN SPRING(664)

91690-40018-00

Unavailable
