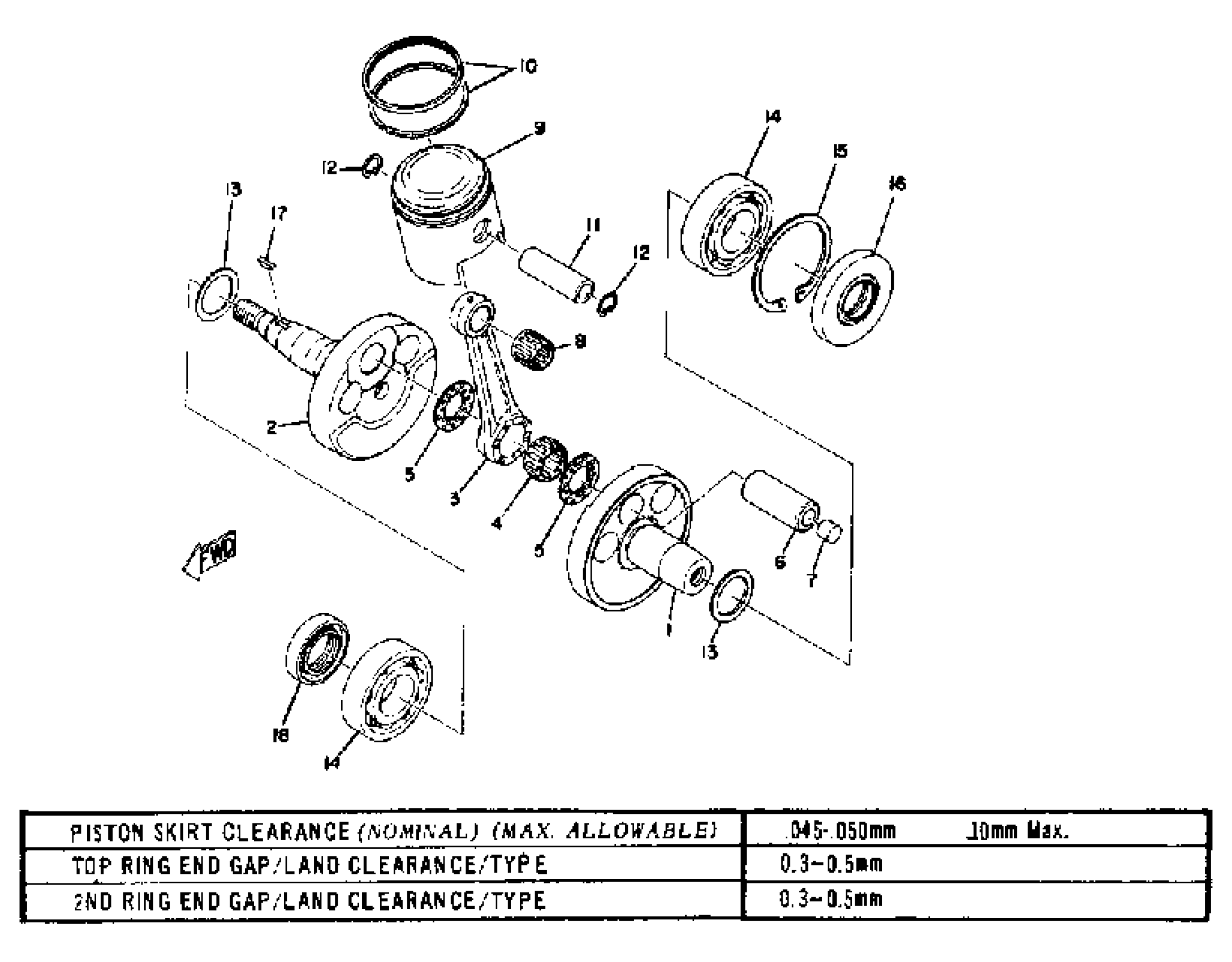

Yamaha SM292 1973 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(853-11400-00-00)

Unavailable

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

CRANK 2

(853-11422-00-00)

Unavailable

3

. ROD, CONNECTING

839-11651-00-00

Unavailable

4

BEARING

93310-424E8-00

Unavailable

5

WASHER (152-11685-00)

90209-24073-00

$14.99

6

PIN, CRANK 1

(822-11681-00-00)

Unavailable

7

BUSH, CRANK PIN

(822-11682-00-00)

Unavailable

8

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

9

PISTON STD

839-11631-00-96

Unavailable

9

PISTON 1 O/S 0.25

839-11635-00-00

Unavailable

9

PISTON 2 O/S 0.50

839-11636-00-00

Unavailable

9

PISTON 3 O/S 0.75

(839-11637-00-00)

Unavailable

9

PISTON 4 O/S 1.00

(839-11638-00-00)

Unavailable

10

PISTON RINGSET STD

839-11610-00-00

Unavailable

10

PISTON RINGSET 1ST

839-11610-10-00

Unavailable

10

PISTON RINGSET 2ND

839-11610-20-00

Unavailable

10

PISTON RINGSET 3RD

(839-11610-30-00)

Unavailable

10

PISTON RINGSET 4TH

839-11610-40-00

Unavailable

11

PIN, PISTON

214-11633-00-00

Unavailable

12

CLIP 6041163400

93450-20026-00

Unavailable

13

SHIM, CRANK 1

(812-11561-00-02)

Unavailable

13

SHIM, CRANK 1

(812-11561-00-03)

Unavailable

14

BEARING(3KW)

93306-30630-00

Unavailable

15

CIRCLIP, R-TYPE

(93420-72023-00)

Unavailable

16

OIL SEAL, SD-TYPE

(93102-30111-00)

Unavailable

17

KEY, WOODRUFF

90280-05001-00

Unavailable

18

OIL SEAL, SD-TYPE

93102-30112-00

Unavailable
