STARTING MOTOR - I984690 (4945114511c008)

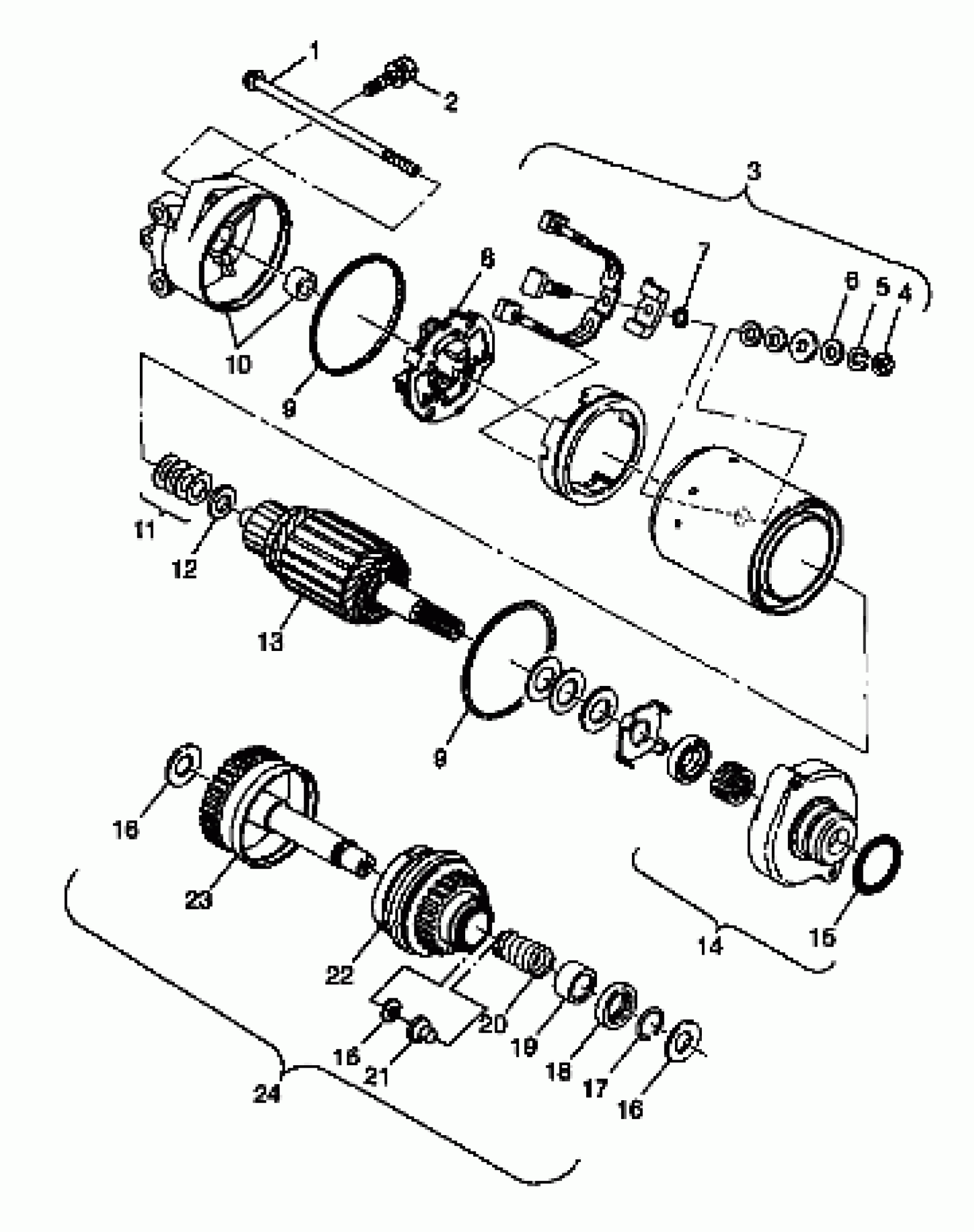

Polaris SLXH - B984690 STARTING MOTOR - I984690 (4945114511c008) Diagram
#
Description
Price
-
STARTER (Incl. 1,3-15)
4060118
Unavailable
-
SHAFT COMPL.
3240121
Unavailable
1
Bolt, Through
3240113
Unavailable
2
BOLT(10)
7516807
Unavailable
3
BRUSH, COMPL. (Incl. 4-8)
3240115
Unavailable
4
NUT(10)
3240116
Unavailable
5
WASHER, SPRING(10)
3240117
Unavailable
6
WASHER(10)
3240119
Unavailable
7
O-RING
3084408
Unavailable
8
Spring, Brush
3240111
Unavailable
9
RING, RUBBER
3084405
Unavailable
9
RING, RUBBER
3084405
Unavailable
10
BRACKET ASM,REAR
3240207
Unavailable
11
WASHER, THRUST(10)
3240118
Unavailable
12
Washer, Thrust
3240112
Unavailable
13
ARMATURE ASM.
3240205
Unavailable
14
BRACKET ASM,FRONT
3240206
Unavailable
15
O-Ring
3240114
$5.59
16
WASHER(10)
7555908
$3.17
16
WASHER(10)
7555908
$3.17
16
WASHER(10)
7555908
$3.17
17
SNAP RING
3240126
Unavailable
18
Stopper
3240125
Unavailable
19
Cover
3240123
Unavailable
20
Spring
7041457
Unavailable
21
BUSHING,PLASTIC
3574214
Unavailable
22
GEAR ASM. Substituted by 3240120
3240122
Unavailable
23
GEAR ASM. Substituted by 4060119 (Incl. 16-22)
3240120
Unavailable
24
BENDIX (Incl. 16-23)
4060119
Unavailable
