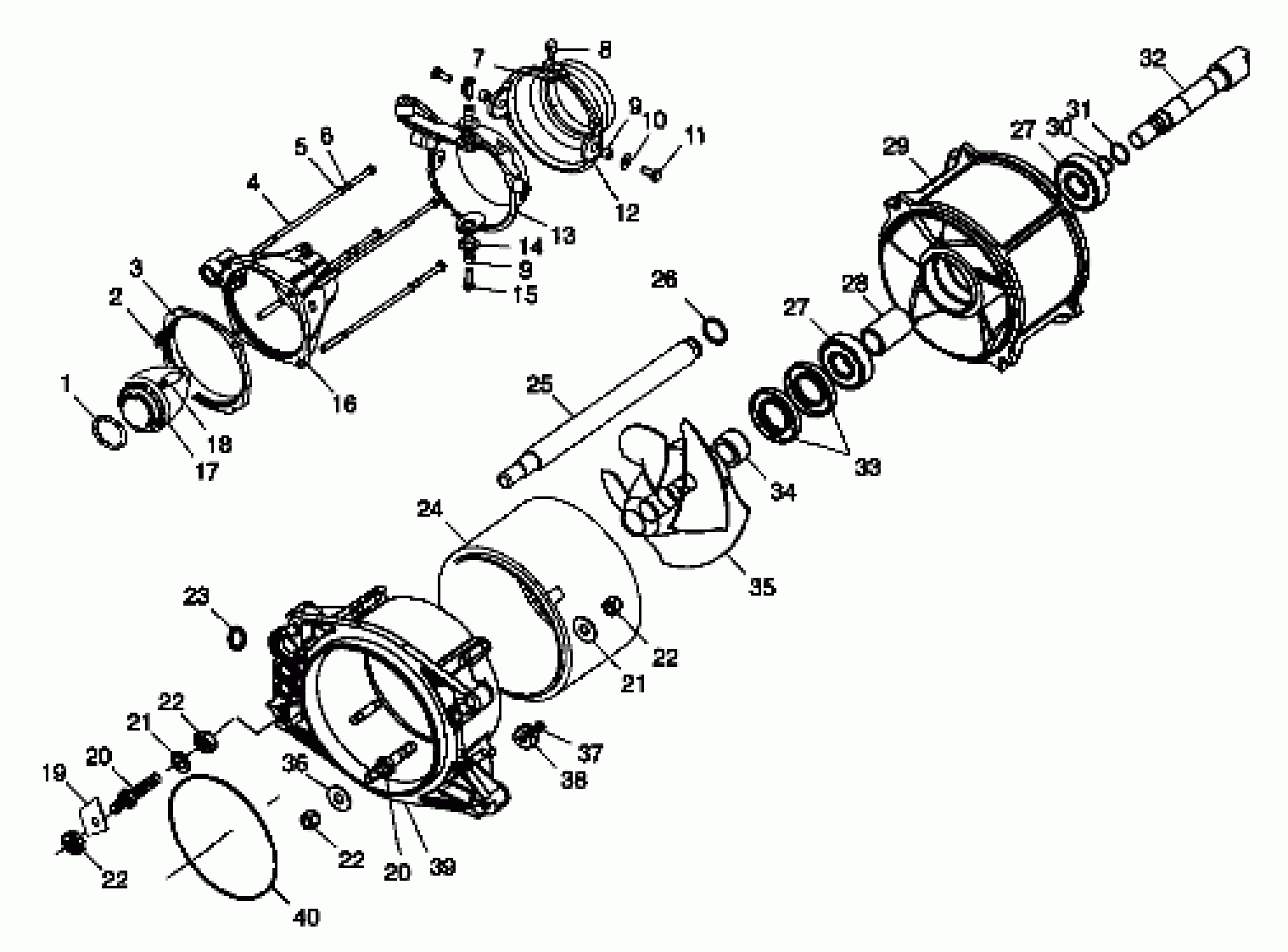

Polaris SLXH - B984690 PROPULSION - B984690 (4945114511b004) Diagram

#

Description
Price

1

O-RING(10)

5410819

$0.79

2

SCREEN,ENG.INLET

5431523

Unavailable

3

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841

5630662

Unavailable

4

Bolt

7515389

Unavailable

5

WASHER, FLAT, S.S.,(10)

7555835

$0.69

6

WASHER, LOCK, S.S.(10)

7552610

Unavailable

7

WASHER(10)

7555866

Unavailable

8

Swivel, Rod End (See Footnote) (See Trim Package Pg. B5, Ref. 16)

----

Unavailable

9

Collar

5130938

Unavailable

9

Collar

5130938

Unavailable

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

11

BOLT, S.S.(10)

7515361

$2.19

12

NOZZLE,TRIM

5431765

Unavailable

13

NOZZLE,STRG.REVERSE

5130960

Unavailable

14

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

15

BOLT, S.S.(10)

7515366

Unavailable

16

NOZZLE,STAT.,0X4 WEDGE

5131569

Unavailable

17

SCREW(10)

7512064

Unavailable

18

Cone, Pump

5431519

Unavailable

19

BRKT,STRG.CABLE

5241741

Unavailable

20

STUD,MTG,PUMP

5020877

$4.37

20

STUD,MTG,PUMP

5020877

$4.37

21

WASHER, FLAT(10)

7555841

Unavailable

21

WASHER, FLAT(10)

7555841

Unavailable

22

NUT,HEX,S.S.(10)

7542455

Unavailable

22

NUT,HEX,S.S.(10)

7542455

Unavailable

22

NUT,HEX,S.S.(10)

7542455

Unavailable

22

NUT,HEX,S.S.(10)

7542455

Unavailable

23

SEAL,WATER PIPE

5411107

Unavailable

24

EXTENSION,PUMP

5131196

$204.99

25

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

26

O RING,(10)

5410735

$0.79

27

Bearing

3514008

Unavailable

27

Bearing

3514008

Unavailable

28

Spacer

5010294

Unavailable

29

STATOR,PUMP

5130983

Unavailable

30

O-RING,(10)

5410817

Unavailable

31

O-RING(10)

5410818

$0.79

32

SHAFT, STUB Substituted by 5132674

5020697

$47.62

33

SEAL,BRG,STATOR

3610043

Unavailable

34

Spacer, Impeller

5010295

Unavailable

35

IMPELLER,17-25,3BLADE,SS

5131554

Unavailable

36

Washer

7555966

$2.62

37

SCREW(10)

7522019

$0.95

38

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

39

HOUSING,PUMP,W/RING Substituted by 2873081

5131815

Unavailable

40

O-RING,PUMP HSG/HULL

5410652

Unavailable
