HULL and BODY - B984690 (4945114511a005)

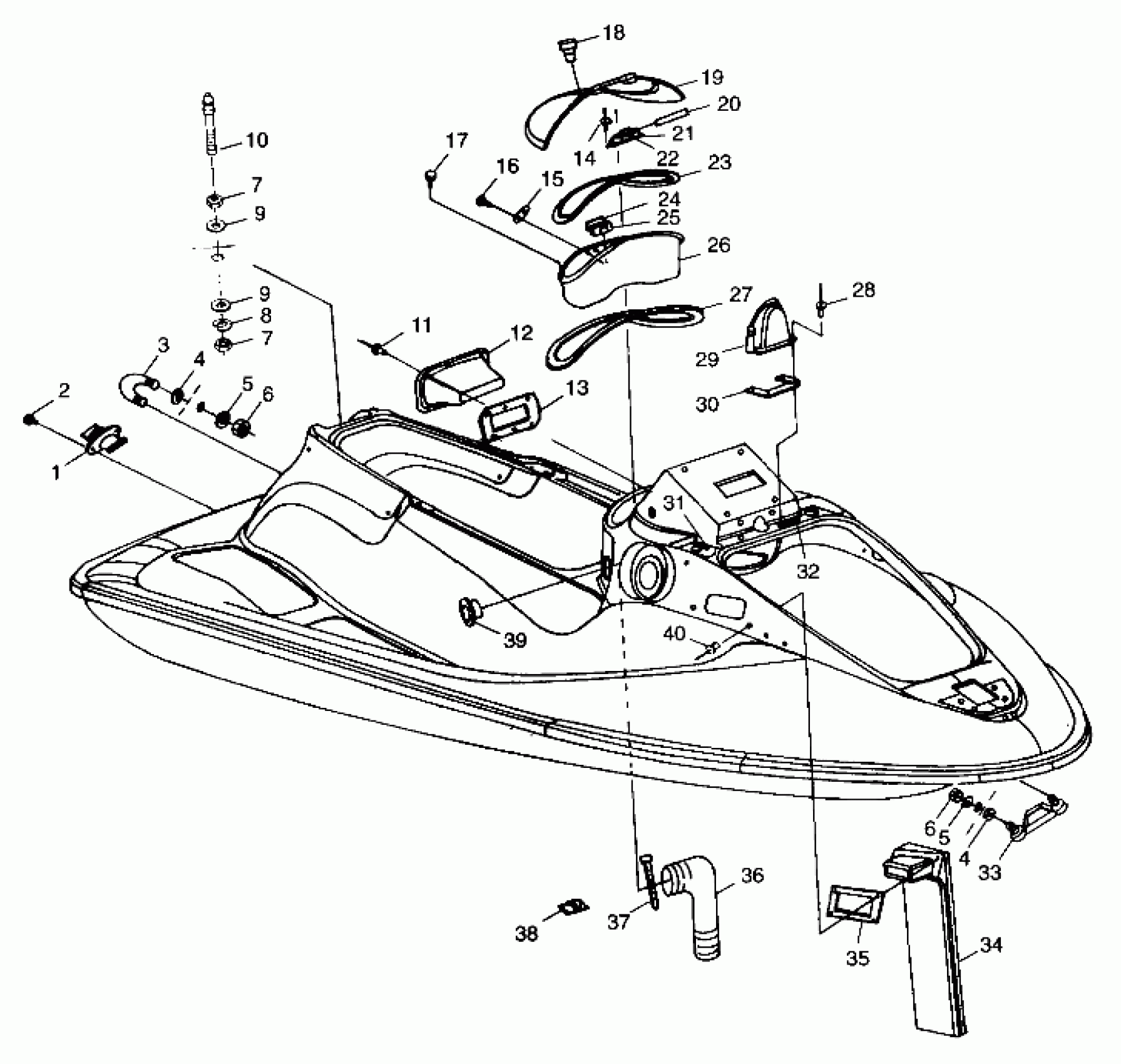

Polaris SLXH - B984690 HULL and BODY - B984690 (4945114511a005) Diagram
#
1
PLUG ASM,BILGE
1060125
Unavailable
2
SCREW, S.S.(10)
7511882
Unavailable
3
U-BOLT ASM.
1060126
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
8
WASHER, LOCK, S.S.(10)
7552607
Unavailable
9
WASHER, FLAT(10)
7555846
$5.59
9
WASHER, FLAT(10)
7555846
$5.59
10
PLUNGER,LATCH
5020753
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
12
BASE,RECEPTICAL,SEAT,SL2
5432718
Unavailable
13
GASKET,RECEPT.SEATBASE
5811555
Unavailable
14
RIVET-POP (10)
7661039
Unavailable
15
PLATE,HOOK,CONSOLE
5211865
Unavailable
16
SCREW,SS.
7516609
Unavailable
17
CLIP,XMAS TREE
5432949
Unavailable
18
LATCH ASM,CONSOLE
2653011
Unavailable
19
LID,CONSOLE
5432660-1079
Unavailable
20
PIN,HINGE,(CONSOLE)
5333612
Unavailable
21
HINGE,CONSOLE(SL2)
5432645
Unavailable
22
SPRING,TORS.CONSOLE,SS
7041660
Unavailable
23
SEAL,CONSOLE
5521430
Unavailable
24
GASKET,HOOK,CONSOLE
5811552
Unavailable
25
HOOK,LATCH
5432661
Unavailable
26
BOX,GLOVE,BRT.WHI.
5432829-133
Unavailable
27
SEAL,GLOVE BOX
5811565
Unavailable
28
RIVET-POP (10)
7661038
Unavailable
29
SHROUD,WIRE
5432838
Unavailable
30
GASKET,WIRE,SHROUD
5811584
Unavailable
31
DECAL,FUEL,OFF/ON,(SL2)
7077479
Unavailable
32
DECAL,RECOM.OIL,PREMIUM
7077480
Unavailable
33
STRAP, BOW
2670150
Unavailable
34
DUCT,AIR,LH,MIRROR
5432815
Unavailable
34
DUCT,AIR,RH,MIRROR
5432816
Unavailable
35
SEAL,DUCT,INTAKE,AIR
5411388
Unavailable
36
DUCT,FLEX,2.0 DIA
5411087
Unavailable
37
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
38
ANCHOR, CABLE TIE(10)
7080464
Unavailable
39
FLANGE,R.AIR-OUTLET
5432191
Unavailable
40
RIVET-POP 3/16 (.523-.750)AL-B [No Longer Available]
7661044
Unavailable
