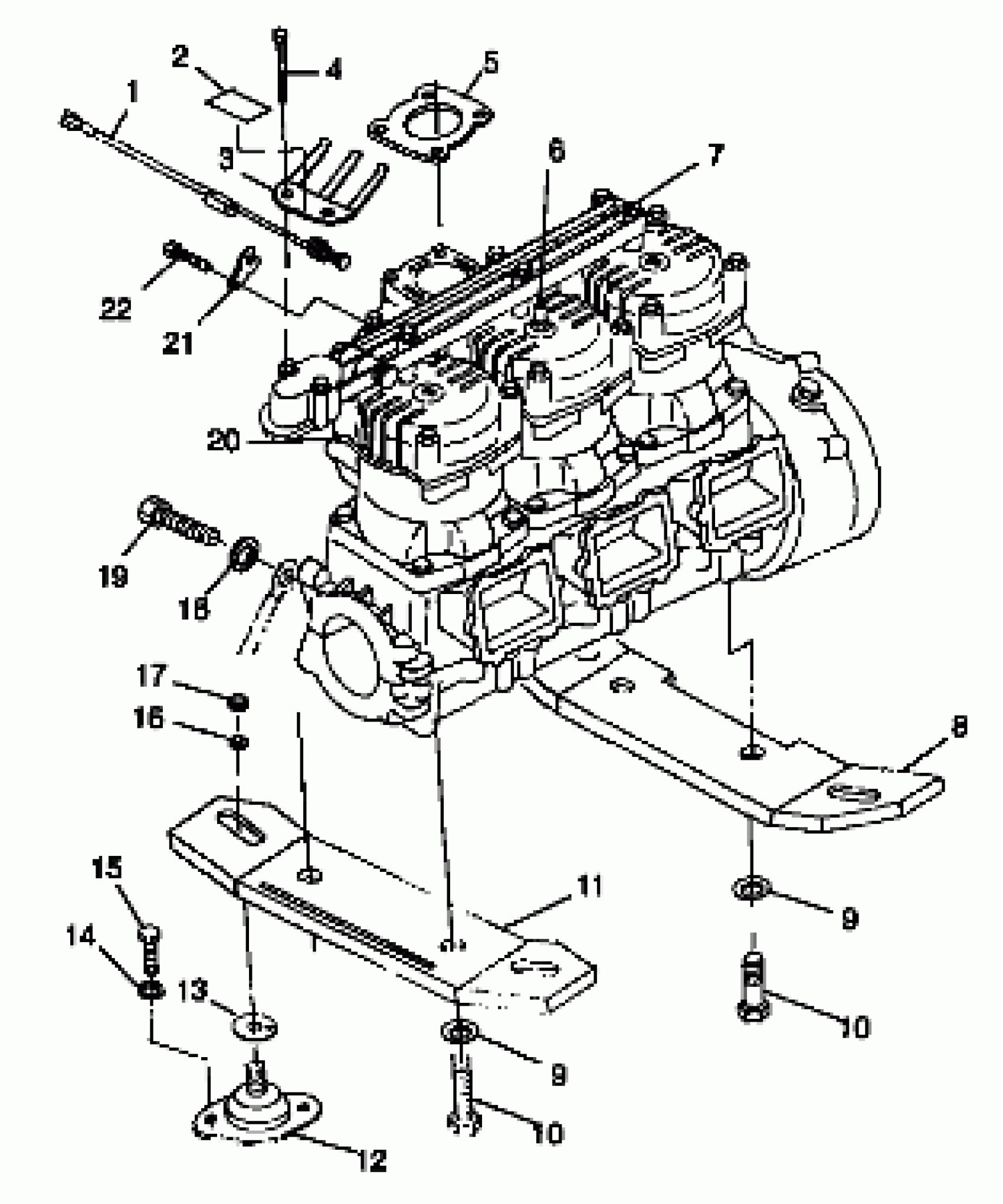

Polaris SLXH - B984690 ENGINE MOUNTING - B984690 (4945114511b002) Diagram

#

Description
Price

1

SWITCH ASM,TEMP(NO GROMMET)

2410075

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.95

3

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

4

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

5

GASKET,EXH.PIPE

5830051

Unavailable

6

Spark Plug, NGK BPR8ES (See Footnote) (See Cyl. and Manifold Pg. C2, Ref. 5)

-------

Unavailable

7

Decal - Warning (See Footnote) (See Cylinder and Manifold Pg. C2, Ref. 2)

-------

Unavailable

8

PLATE,F.MOUNT Substituted by 5631128

5630585

Unavailable

9

WASHER,LOCK,S.S.

7552609

Unavailable

9

WASHER,LOCK,S.S.

7552609

Unavailable

10

SCREW, SS.

7517330

Unavailable

10

SCREW, SS.

7517330

Unavailable

11

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

12

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

Unavailable

13

SHIM,ENG.MT.(PWC)

5211727

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

BOLT, S.S.(10)

7515361

Unavailable

16

WASHER, FLAT, S.S.(10)

7555848

Unavailable

17

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

18

WASHER,LOCK,SS.

7556055

Unavailable

19

BOLT,SS.

7517497

$3.97

20

KIT,S.B.UPDATE(1050TRIPLE) [Cannot Purchase as Assembly] (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft as

2201212

Unavailable

21

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

22

BOLT,(1)

7516603

$10.39
