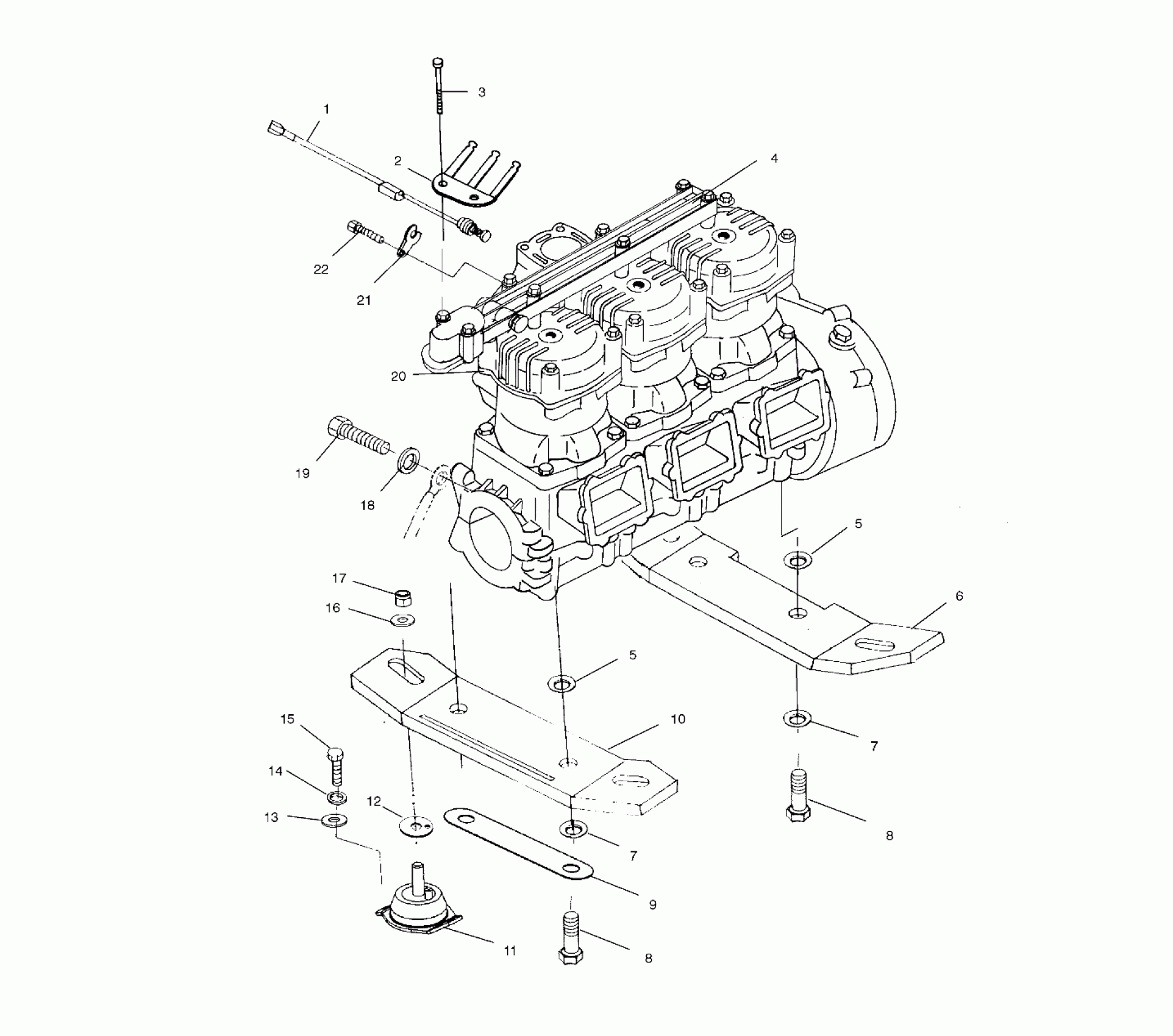

Polaris SLX - W014699D ENGINE MOUNTING - W014699D (4964816481A014) Diagram

#

Description
Price

1

SWITCH,TEMP,160 W/GROMMET

2410188

Unavailable

2

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

3

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

4

Decal - Warning (See Cylinder and Manifold Pg. C1, Ref. 2)

-------

Unavailable

5

WASHER-FLAT,.44X1.25X.10,SS

7556184

Unavailable

5

WASHER-FLAT,.44X1.25X.10,SS

7556184

Unavailable

6

PLATE-FRONT MOUNT W/WASHER

5631166

Unavailable

7

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

7

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

8

SCREW, SS.

7517330

Unavailable

8

SCREW, SS.

7517330

Unavailable

9

LOCK-MOUNT PLATE

5245460

Unavailable

10

PLATE-REAR MOUNT W/WASHER

5631167

Unavailable

11

MOUNT-ENGINE,LORD,BENT,50-520

3021254

Unavailable

12

SHIM,ENG.MT.(PWC)

5211727

Unavailable

13

WASHER(10)

7555866

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

SCREW(10)

7517627

Unavailable

16

WASHER, FLAT, S.S.(10)

7555848

Unavailable

17

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

18

WASHER,LOCK,SS.

7556055

Unavailable

19

BOLT,SS.

7517497

$3.97

20

SHORTBLOCK,W120-TCSP-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

21

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

22

BOLT,(1)

7516603

$10.39
