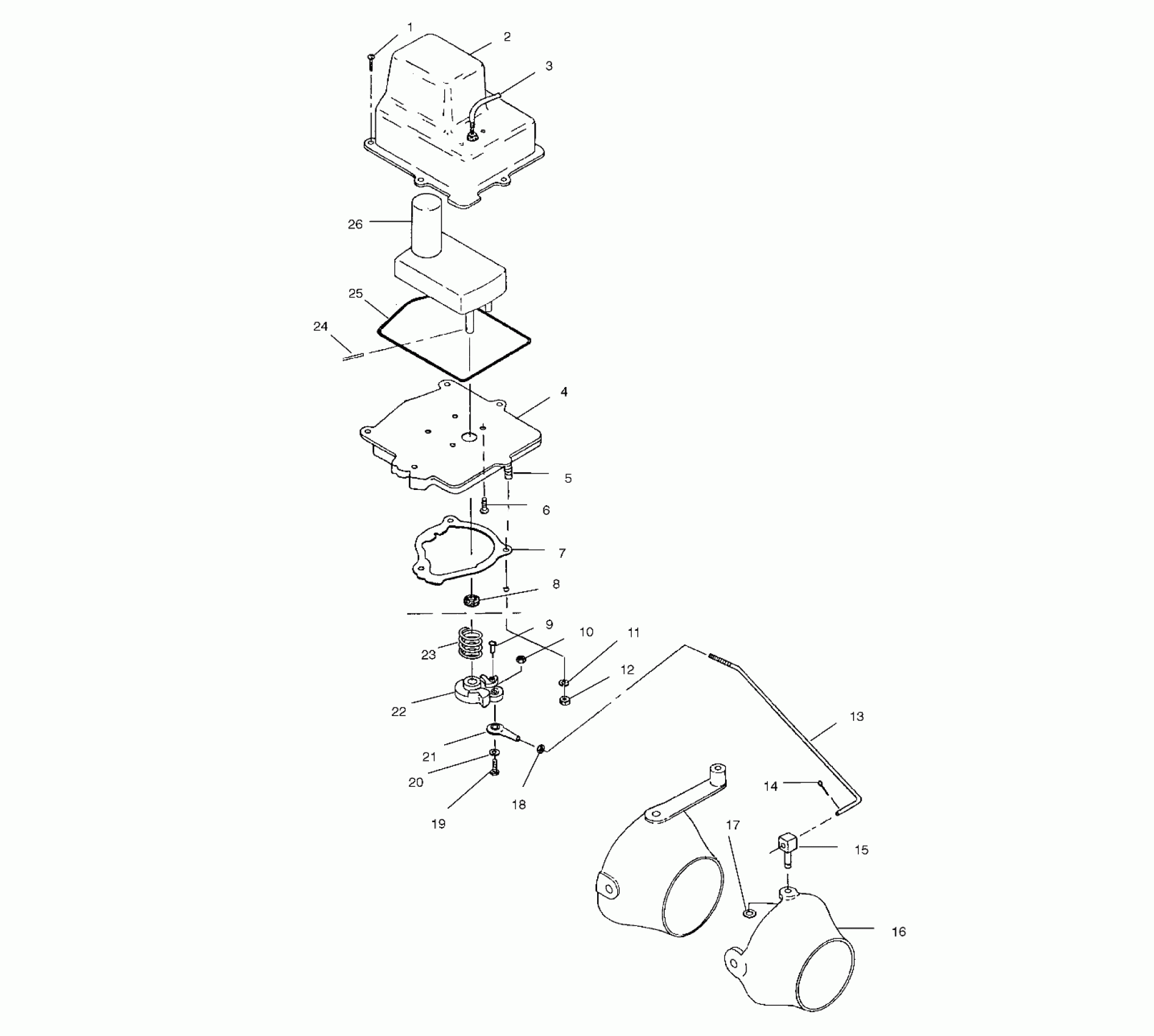

Polaris SLX - W004699D TRIM PACKAGE - W004699D (4955765576B005) Diagram

#

Description

Price

1

SCREW(10)

7512052

Unavailable

2

COVER,TRIM MTR.

5431551

Unavailable

3

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

4

BASE,MOTOR

5630798

Unavailable

5

STUD,S.S.(10)

5131050

Unavailable

6

SCREW(10)

7511872

Unavailable

7

GASKET, MOTOR BASE

5810818

Unavailable

8

SEAL, OIL

3610042

Unavailable

9

SCREW(10)

7511873

Unavailable

10

NUT, HEX, S.S.(10)

7541931

$4.79

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

LINKAGE,THREADED

5224670

Unavailable

14

PIN, COTTER(10)

7661010

$1.49

15

SWIVEL,ROD END

5131463

Unavailable

16

Nozzle, Trim (See Propulsion Pg. B4, Ref. 39)

-------

Unavailable

17

WASHER(10)

7555866

Unavailable

18

NUT (10)

1860102

Unavailable

19

BOLT, S.S.(10)

7512041

Unavailable

20

WASHER, FLAT, S.S.(10)

7555837

Unavailable

21

ROD END, S.S.

7060154

Unavailable

22

LEVER,TRIM,HD

5432551

Unavailable

23

SPRING,TRIM,HVY.

7041469

Unavailable

24

PIN,DRIVE

7661646

Unavailable

25

O RING,MTR.COVER

5410756

Unavailable

26

GEARMOTOR ASM,6 RPM

4170018

Unavailable
