PROPULSION - W004699D (4955765576B004)

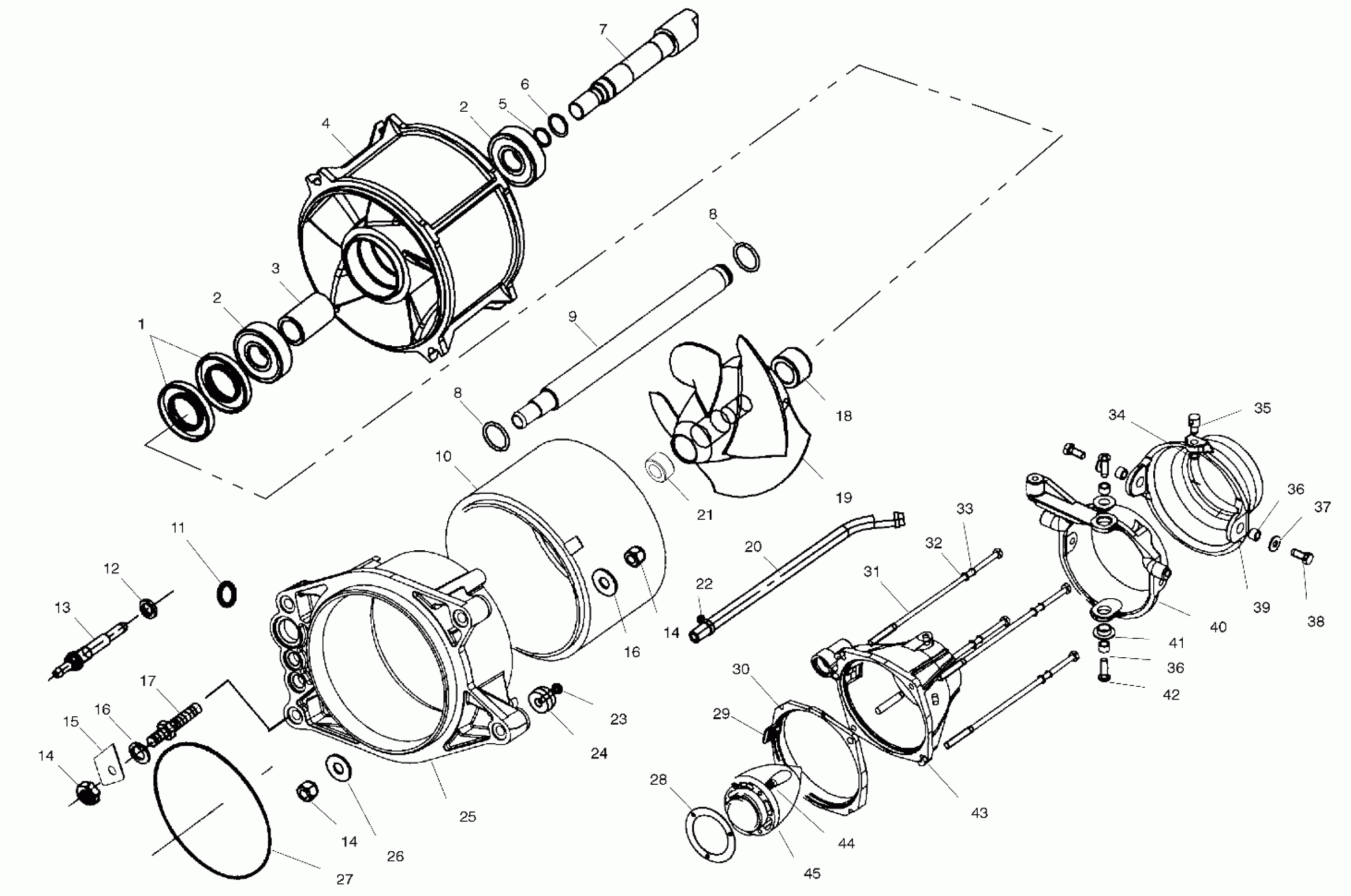

Polaris SLX - W004699D PROPULSION - W004699D (4955765576B004) Diagram
#
1
SEAL,BRG,STATOR
3610043
Unavailable
2
Bearing
3514008
Unavailable
2
Bearing
3514008
Unavailable
3
Spacer
5010294
Unavailable
4
STATOR,SS,ASIA TREND
5132088
Unavailable
5
O-RING,(10)
5410817
Unavailable
6
O-RING(10)
5410818
Unavailable
7
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
8
O RING,(10)
5410735
Unavailable
8
O RING,(10)
5410735
Unavailable
9
PIPE,WATER,ENG.(X-PUMP)
5432269
Unavailable
10
EXTENSION,PUMP
5131196
Unavailable
11
SEAL,WATER PIPE
5411107
Unavailable
12
SEAL,SIPHON TUBE
5411016
Unavailable
13
PIPE,WATER,BILGE Substituted by 5020835
5431990
Unavailable
14
NUT,HEX,S.S.(10)
7542455
Unavailable
14
NUT,HEX,S.S.(10)
7542455
Unavailable
14
NUT,HEX,S.S.(10)
7542455
Unavailable
15
BRKT,STRG.CABLE
5241741
Unavailable
16
WASHER,PUMPSTUD,SEAL
7555941
Unavailable
16
WASHER,PUMPSTUD,SEAL
7555941
Unavailable
17
STUD,MOUNT,PUMP,LONG INT.
5132111
Unavailable
18
Spacer, Impeller
5010295
Unavailable
19
IMPELLER-7.0,.550 CLEARANCE
5132202
Unavailable
20
HOSE,WATER
8450054-100
Unavailable
21
SEAL-IMPELLER/SHAFT
5411644
Unavailable
22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
SCREW(10)
7522019
Unavailable
24
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
25
HSG,PUMP,W/O RING,INT STUD
5131573
Unavailable
26
Washer
7555966
$2.63
27
O-RING,PUMP HSG/HULL
5410652
Unavailable
28
SEAL,TAILCONE
5811984
Unavailable
29
SCREEN,ENG.INLET
5431523
Unavailable
30
WEDGE,PUMP,0X4,MOLDED
5432841
Unavailable
31
Bolt
7515389
Unavailable
32
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
33
WASHER, LOCK, S.S.(10)
7552610
Unavailable
34
WASHER(10)
7555866
Unavailable
35
Swivel, Rod End (See Trim Package Pg. B5, Ref. 15)
-------
Unavailable
36
Collar
5130938
Unavailable
36
Collar
5130938
Unavailable
37
WASHER,FLAT,S.S.(10)
7555874
$2.39
38
BOLT, S.S.(10)
7515361
Unavailable
39
NOZZLE,TRIM
5431765
Unavailable
40
NOZZLE,STRG.REVERSE
5130960
Unavailable
41
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
42
BOLT, S.S.(10)
7515366
Unavailable
43
NOZZLE ASM,0X4 WEDGE
1350038
Unavailable
44
SCREW(10)
7512064
Unavailable
45
Cone, Pump
5431519
Unavailable
