HULL and BODY - W004699D (4955765576A005)

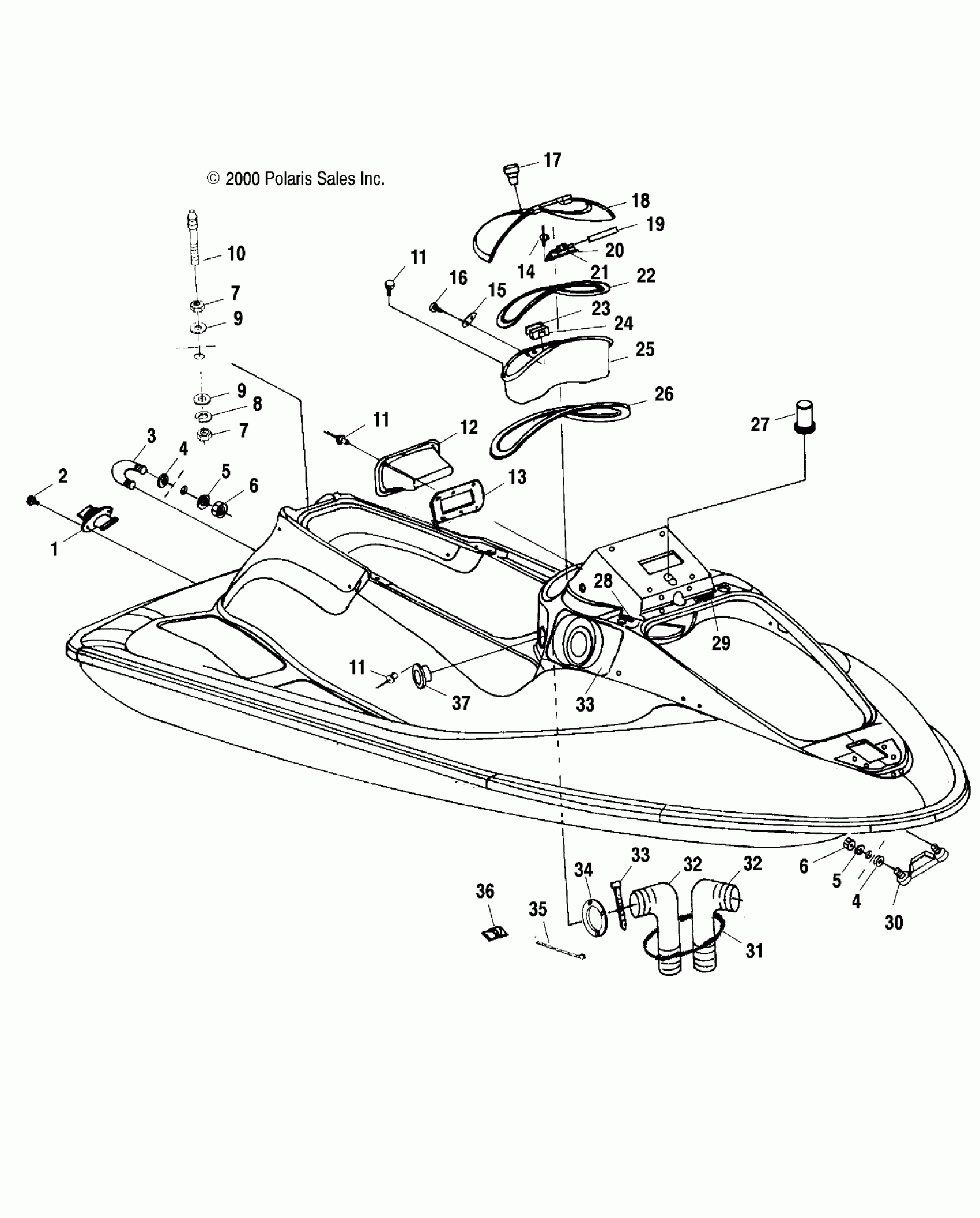

Polaris SLX - W004699D HULL and BODY - W004699D (4955765576A005) Diagram
#
1
PLUG ASM,BILGE
1060125
Unavailable
2
SCREW, S.S.(10)
7511882
Unavailable
3
U-BOLT ASM.
1060126
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
8
WASHER, LOCK, S.S.(10)
7552607
Unavailable
9
WASHER, FLAT(10)
7555846
$5.59
9
WASHER, FLAT(10)
7555846
$5.59
10
PLUNGER,LATCH
5020753
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
12
BASE,RECEPTICAL,SEAT,SL2
5432718
Unavailable
13
GASKET,RECEPT.SEATBASE
5811555
Unavailable
14
RIVET-POP (10)
7661039
Unavailable
15
PLATE,HOOK,CONSOLE
5211865
Unavailable
16
SCREW,SS.
7516609
Unavailable
17
LATCH ASM,CONSOLE
2653011
Unavailable
18
LID-CONSOLE,PWC,PEARLSTONE
5432660-1095
Unavailable
19
PIN,HINGE,(CONSOLE)
5333612
Unavailable
20
HINGE,CONSOLE(SL2)
5432645
Unavailable
21
SPRING,TORS.CONSOLE,SS
7041660
Unavailable
22
SEAL,CONSOLE
5521430
Unavailable
23
GASKET,HOOK,CONSOLE
5811552
Unavailable
24
HOOK,LATCH
5432661
Unavailable
25
BOX,GLOVE,BRT.WHI.
5432829-133
Unavailable
26
SEAL,GLOVE BOX
5811565
Unavailable
27
GROMMET-DECK,WIRE HARNESS
5411664
Unavailable
28
DECAL,FUEL,OFF/ON,(SL2)
7077479
Unavailable
29
DECAL,RECOM.OIL,PREMIUM
7077480
Unavailable
30
STRAP, BOW
2670150
Unavailable
31
STRAP, CABLE(10)
7080598
Unavailable
32
DUCT,INLET,AIR,23 INCH
5433496
Unavailable
32
DUCT,INLET,AIR,23 INCH
5433496
Unavailable
33
CLAMP,HOSE,SS.
7080766
Unavailable
33
CLAMP,HOSE,SS.
7080766
Unavailable
34
GASKET-INLET,AIR
5411545
Unavailable
35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
36
ANCHOR, CABLE TIE(10)
7080464
Unavailable
37
FLANGE-INLET,AIR
5433220
Unavailable
