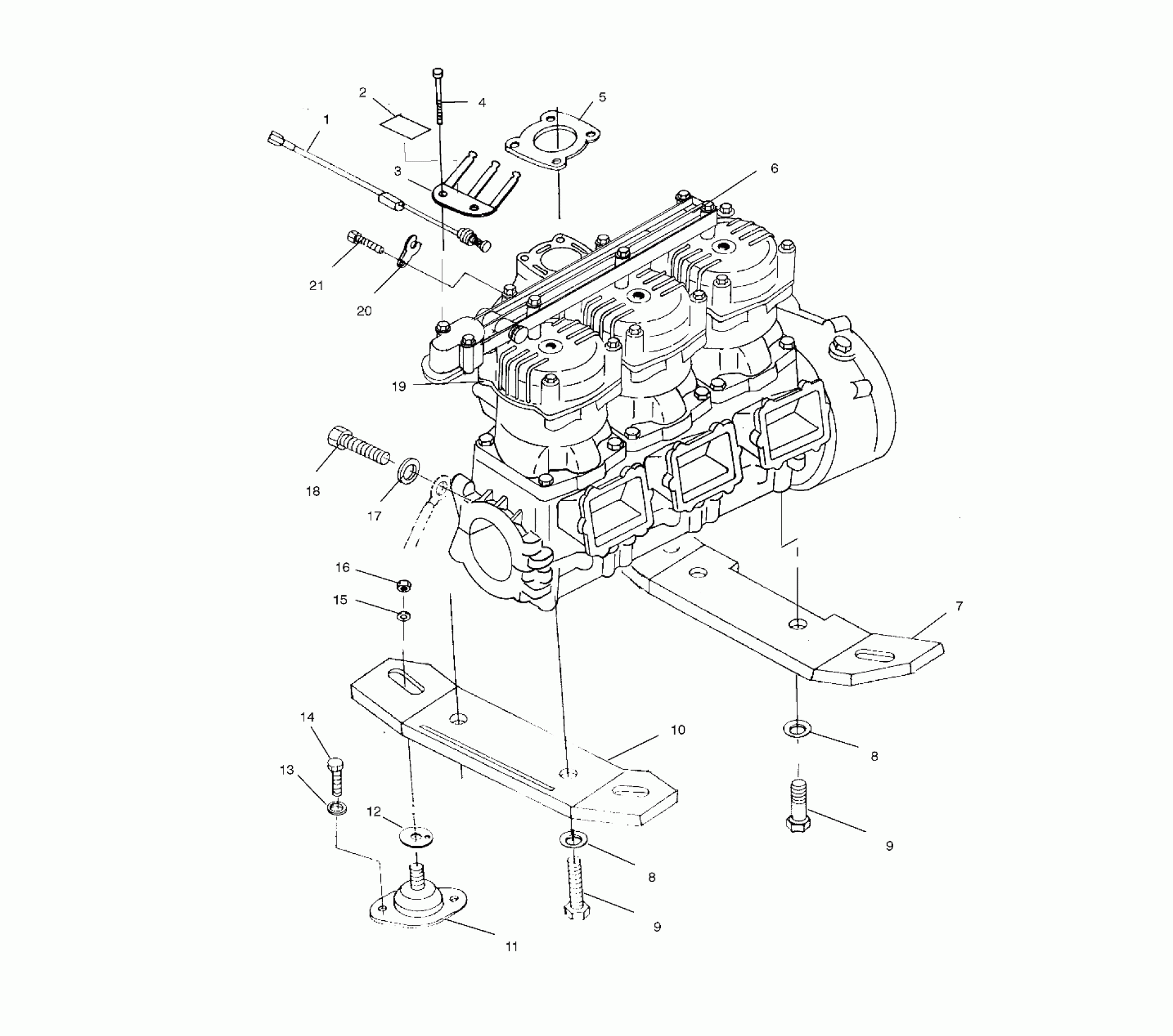

Polaris SLX - W004699D ENGINE MOUNTING - W004699D (4955765576B002) Diagram

#

Description
Price

1

SWITCH,TEMP,160 W/GROMMET

2410188

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.95

3

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

4

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

5

GASKET,EXH.PIPE

5830051

Unavailable

6

DECAL - WARNING (See Cylinder and Manifold Pg. C2, Ref. 2)

-------

Unavailable

7

PLATE,F.MOUNT Substituted by 5631128

5630585

Unavailable

8

WASHER,LOCK,S.S.

7552609

Unavailable

8

WASHER,LOCK,S.S.

7552609

Unavailable

9

SCREW, SS.

7517330

Unavailable

9

SCREW, SS.

7517330

Unavailable

10

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

11

MOUNT-ENGINE,PWC Substituted by 3021208

3021103

Unavailable

12

SHIM,ENG.MT.(PWC)

5211727

Unavailable

13

WASHER, LOCK, S.S.(10)

7552610

Unavailable

14

SCREW(10)

7517627

Unavailable

15

WASHER, FLAT, S.S.(10)

7555848

Unavailable

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

17

WASHER,LOCK,SS.

7556055

Unavailable

18

BOLT,SS.

7517497

$3.97

19

SHORTBLOCK,W120-TCSP-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

20

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

21

BOLT,(1)

7516603

$10.39
