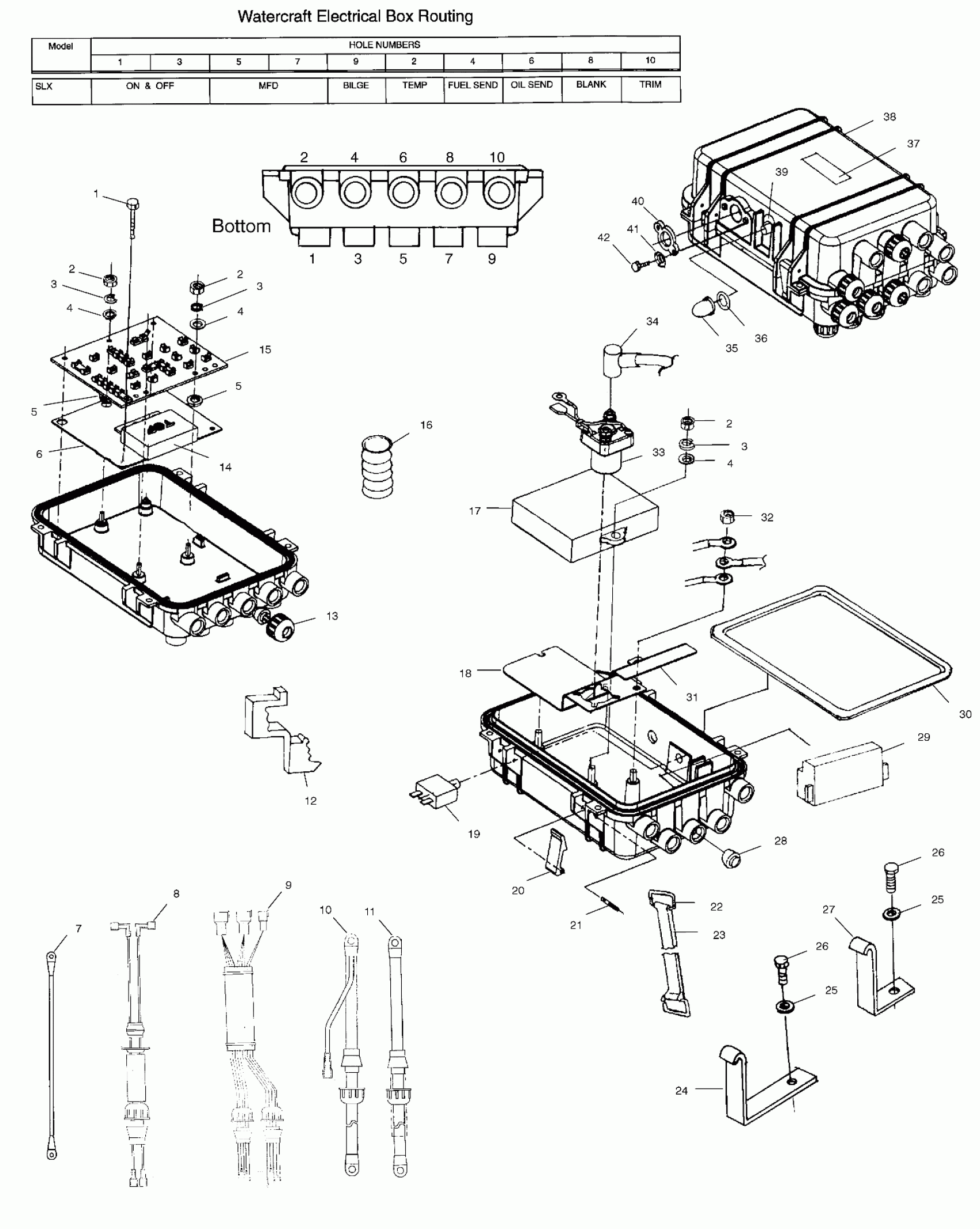

Polaris SLX - W004699D ELECTRICAL BOX - W004699D (4955765576B011) Diagram

#

Description
Price

1

SCREW,S.S.(10)

7512072

$0.40

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

5

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER,RUBBER(10)

7555870

$0.40

6

PLATE,BTM,E-BOX

5211761

$9.05

7

HARNESS,WIRE,GRND,JUMPER

2460831

$4.92

8

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

9

HARNESS,60 IN,10 WIRE

2460675

Unavailable

10

CABLE,RED,BATT/SOL.,CAP

4010122

Unavailable

11

CABLE,RED,SOL./STRTR,CAP

4010123

Unavailable

12

T-CLIP(10)

7080471

$3.57

13

CAP,GROMMET,ELEC.BOX

5432502

$2.62

14

REGULATOR-RECT/CUTOFF-LR31-2

4010302

Unavailable

15

TERM.BOARD ASM,MFD

2434014

Unavailable

16

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

17

Controller, Ignition (See Magneto Pg. C7, Ref. 12)

----

Unavailable

18

PLATE,TOP,E-BOX

5211760

$8.17

19

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

20

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

21

PIN,LATCH,ELEC.BOX

5333544

$10.46

22

HOOK,'D',SST/SS,(10)

5224472

Unavailable

23

STRAP,RUBBER

5410853

$9.84

24

BRKT,BATT.STRAP,IN-BD

5242994

$9.84

25

WASHER, LOCK(10)

7552613

Unavailable

25

WASHER, LOCK(10)

7552613

Unavailable

26

BOLT(10)

7512043

$0.32

26

BOLT(10)

7512043

$0.32

27

BRKT,BATT.STRAP,OUT-BD

5242995

$9.05

28

Grommet

5411235

Unavailable

29

Coil, Ignition (See Magneto Pg. C7, Ref. 13)

----

Unavailable

30

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

31

BRKT,COIL/SOLENOID,.078 THK

5243538

Unavailable

32

NUT,NYLOK,SS

7547061

$0.56

33

Solenoid, Starter (See Magneto Pg. C7, Ref. 14)

----

Unavailable

34

INSULATOR-CABLE

5410346

$7.73

35

BOOT,THREADED,RED

7080461

$13.99

36

O-Ring

5411491

$1.03

37

DECAL,WARN,HI.VOLT.

7073713

Unavailable

38

ELECTRICAL BOX,PLASTIC,ASM. (Incl. 20,21,30)

2632136

$102.38

39

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

40

PLATE,STATOR,1 HOLE

5432574

$6.59

41

WASHER(10)

7555836

$3.99

42

BOLT,SS,(10)

7515113

Unavailable
