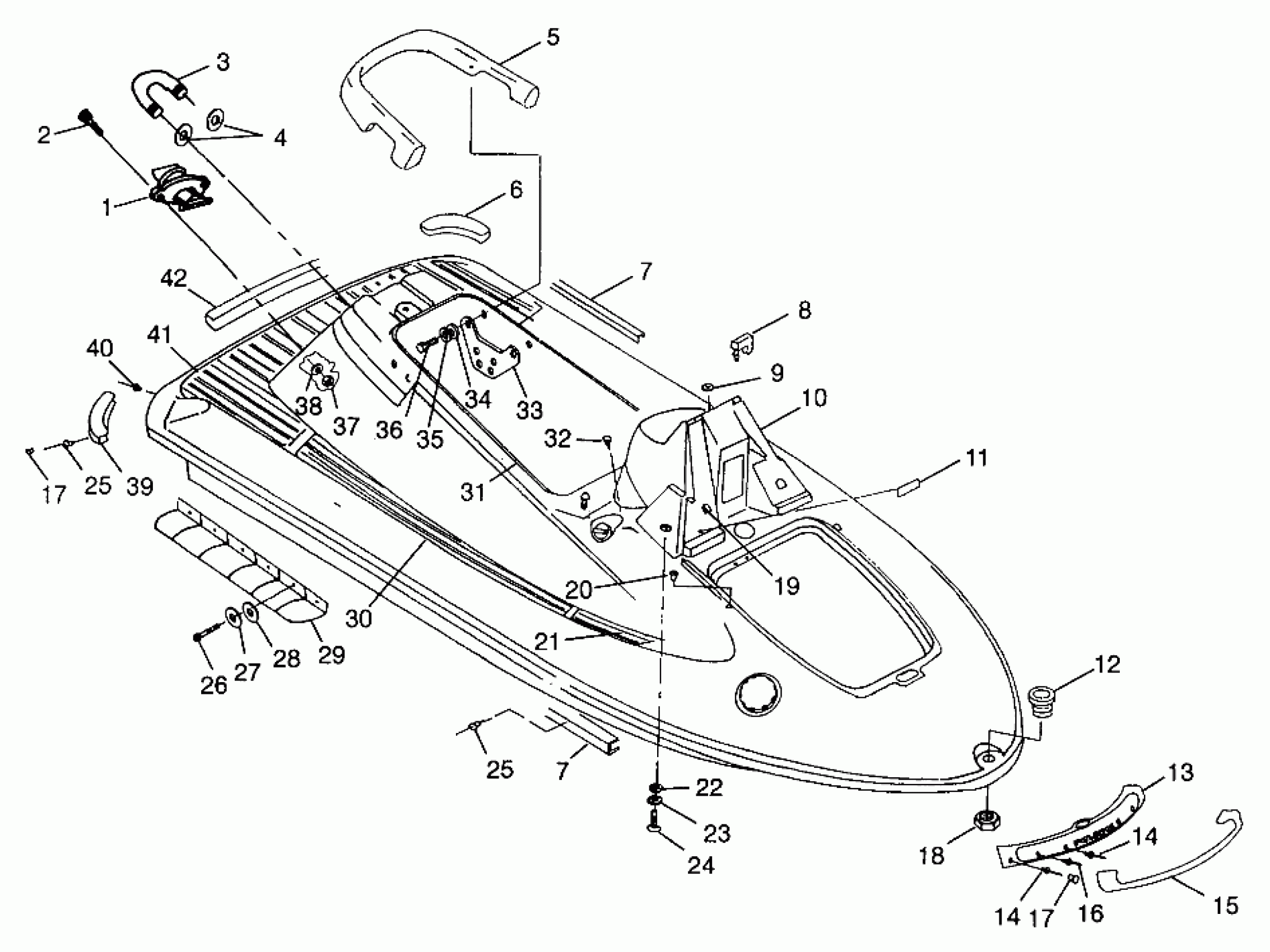

Polaris SLX PRO 785 - B984978 HULL and BODY - B984978 (4945834583a005) Diagram

#

Description
Price

1

PLUG ASM,BILGE

1060125

Unavailable

2

BOLT, SS.(10)

7512045

$4.99

3

U-BOLT ASM.

1060126

$7.94

4

WASHER,RUBBER(10)

7555870

$0.40

5

HANDLE,GRAB,BLK.

5431392-070

Unavailable

6

BUMPER,LH,CORNER,BLK

5432582-070

Unavailable

7

RAIL,RUB,RH,SIDE,BLK.

5521474-070

Unavailable

7

RAIL,RUB,LH,SIDE,BLK.

5521473-070

Unavailable

7

RAIL,RUB,RH,SIDE,BLK.

5521474-070

Unavailable

7

RAIL,RUB,LH,SIDE,BLK.

5521473-070

Unavailable

8

BUMPER,CORNER

5431740

$11.39

9

GROMMET

5410720

$5.71

10

POD,STRG,NOTCHED,BLK.MET.

5433124-177

Unavailable

11

DECAL,RECOM.OIL,PREMIUM

7077480

Unavailable

12

GROMMET,BOW EYE,BLK.

5431950-070

Unavailable

13

BUMPER,FR,SHORT,W/BRA,BLK

5411386-070

Unavailable

14

RIVET,(50)

7621488

Unavailable

14

RIVET,(50)

7621488

Unavailable

15

BRA,SPLASH

2690148

Unavailable

16

RIVET(50)

7621462

$1.19

17

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

17

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

18

NUT,BOW EYE,BLK.

5431951-070

$15.99

19

Grommet, Vent

5410682

Unavailable

20

BUMPER,DECK

5431741

Unavailable

21

PAD,F.F'WELL,GRV,BLK/WHT,SL Substituted by 5811477-070

5811477-1083

$9.84

22

WASHER,S.S.(10)

7555891

$1.50

23

WASHER, LOCK, S.S.(10)

7555838

Unavailable

24

SCREW,DRILOCK

7517439

$1.90

25

RIVET(50)

7621480

Unavailable

25

RIVET(50)

7621480

Unavailable

26

SCREW,(10)

7515198

Unavailable

27

WASHER, FLAT, S.S.(10)

7555839

Unavailable

28

WASHER,(10)

5811440

$2.06

29

SPONSON,LH,BLK.

5432467-070

$41.27

29

SPONSON,RH,BLK.

5432468-070

$49.21

30

PAD,CTR.F'WELL,GRV,BLK/WHT,SL Substituted by 5811478-070

5811478-1083

Unavailable

31

SEAL, SEAT

5521371

Unavailable

32

CLIP, XMASTREE(10)

7080514

$1.19

33

BRKT,VALVE ACT.SS,FLAT (See Pg. C10 For Details)

5242318

$18.19

34

WASHER, LOCK, S.S.(10)

7552610

Unavailable

35

WASHER, FLAT, S.S.(10)

7555831

Unavailable

36

BOLT, S.S.(10)

7515357

Unavailable

37

NUT, HEX, S.S.(10)

7541931

$5.99

38

WASHER, FLAT, S.S.(10)

7555837

$1.59

39

BUMPER,RH,CORNER,BLK

5432583-070

Unavailable

40

RIVET(50)

7621479

$1.98

41

PAD,R.F'WELL,W/O TOW,BLK/WHT Substituted by 5811453-070

5811453-1083

Unavailable

42

RAIL,RUB,R.SMOOTH,BLK

5521412-070

Unavailable
