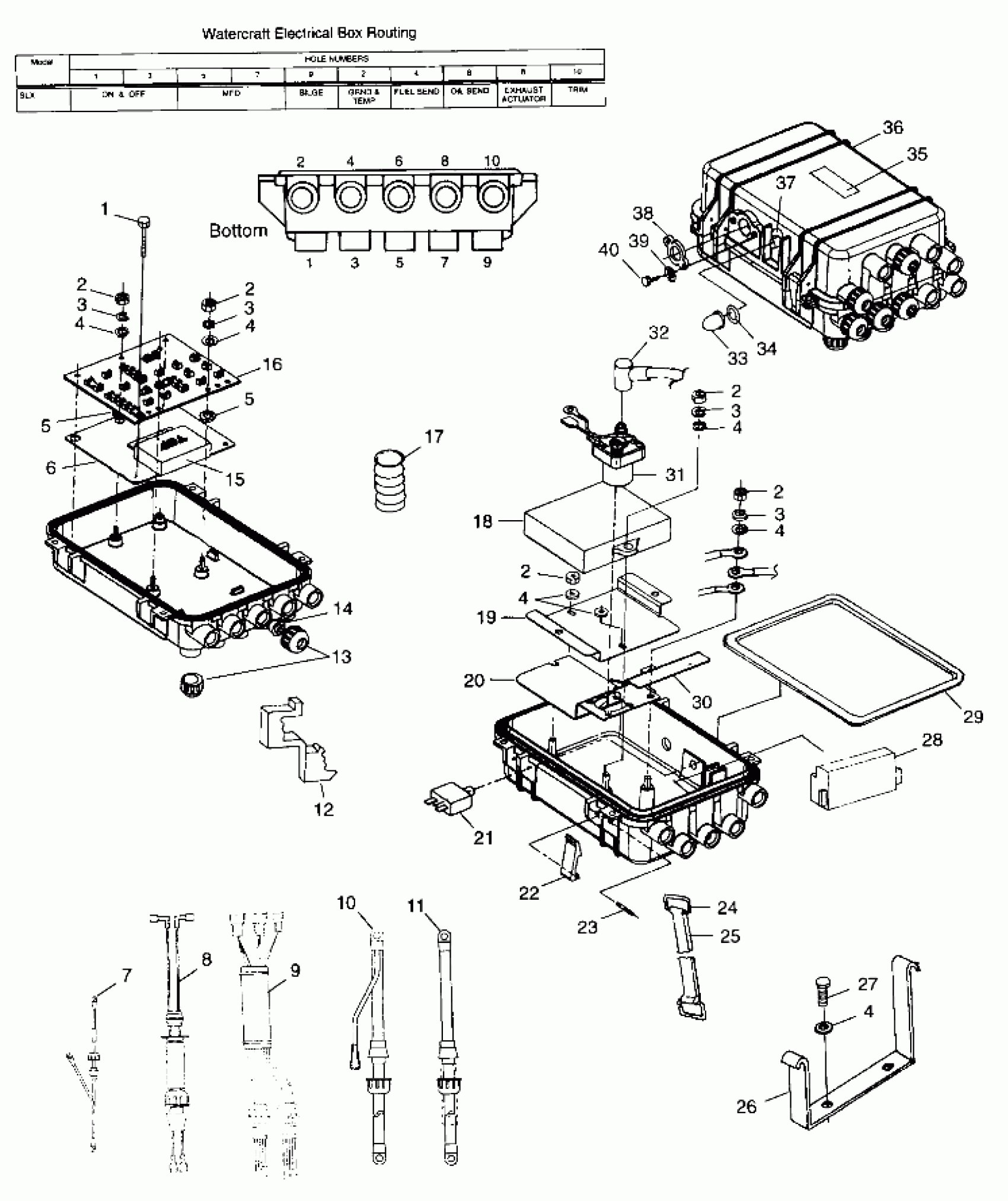

Polaris SLX PRO 785 - B984978 ELECTRICAL BOX - B984978 (4945834583b011) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7512042

$2.62

2

NUT, SS.(10)

7547036

Unavailable

2

NUT, SS.(10)

7547036

Unavailable

2

NUT, SS.(10)

7547036

Unavailable

2

NUT, SS.(10)

7547036

Unavailable

2

NUT, SS.(10)

7547036

Unavailable

3

WASHER, LOCK(10)

7552615

$4.99

3

WASHER, LOCK(10)

7552615

$4.99

3

WASHER, LOCK(10)

7552615

$4.99

3

WASHER, LOCK(10)

7552615

$4.99

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

WASHER,RUBBER(10)

7555870

Unavailable

5

WASHER,RUBBER(10)

7555870

Unavailable

6

PLATE,BTM,E-BOX

5211761

Unavailable

7

HARNESS,WIRE,GND,EL.BOX

2460621

Unavailable

8

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

9

HARNESS,10 WIRE

2460616

Unavailable

10

CABLE,BATT/SOL,RED

4010126

Unavailable

11

CABLE,GND,BATT/ENG.

4010125

Unavailable

12

T-CLIP(10)

7080471

$3.59

13

CAP,GROMMET,ELEC.BOX

5432502

Unavailable

14

GROMMET,1 HOLE,LARGE

5411213

Unavailable

15

REG.RECT/CUTOFF,LR31 Substituted by 4010302

4060192

Unavailable

16

TERM.BOARD ASM,MFD

2434014

Unavailable

17

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

18

C.D.I. System (See Magneto Pg. C8, Ref. 8)

-------

Unavailable

19

BRKT,RETAINER,CDI

1060137

Unavailable

20

PLATE,TOP,E-BOX

5211760

Unavailable

21

CKT.BREAKER,15A.(WATER.)

2434011

Unavailable

22

LATCH,ELEC.BOX Substituted by 2620120

5432503

Unavailable

23

PIN,LATCH,ELEC.BOX

5333544

Unavailable

24

HOOK,'D',SST/SS,(10)

5224472

$2.19

25

STRAP,RUBBER

5410853

Unavailable

26

CRADLE,ELECT,PWC,AGR

5241845

Unavailable

27

BOLT(10)

7515127

Unavailable

28

Ignition Coil (See Magneto Pg. C8, Ref. 7)

-------

Unavailable

29

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

30

BRKT,COIL/SOL.(780ENG)

5242471

Unavailable

31

Switch, Magnetic (See Magneto Pg. C8, Ref. 9)

-------

Unavailable

32

INSULATOR-CABLE

5410346

$6.39

33

BOOT,THREADED,RED

7080461

Unavailable

34

O-Ring

5411491

Unavailable

35

DECAL,WARN,HI.VOLT.

7073713

Unavailable

36

BOX ASM,ELEC(PLASTIC),780 Substituted by 2632138 (Incl. 22,23,29)

2620121

Unavailable

37

DECAL,ELECT.BOX RESET

7073734

Unavailable

38

PLATE,STATOR,1 HOLE

5432574

Unavailable

39

WASHER(10)

7555836

$3.99
