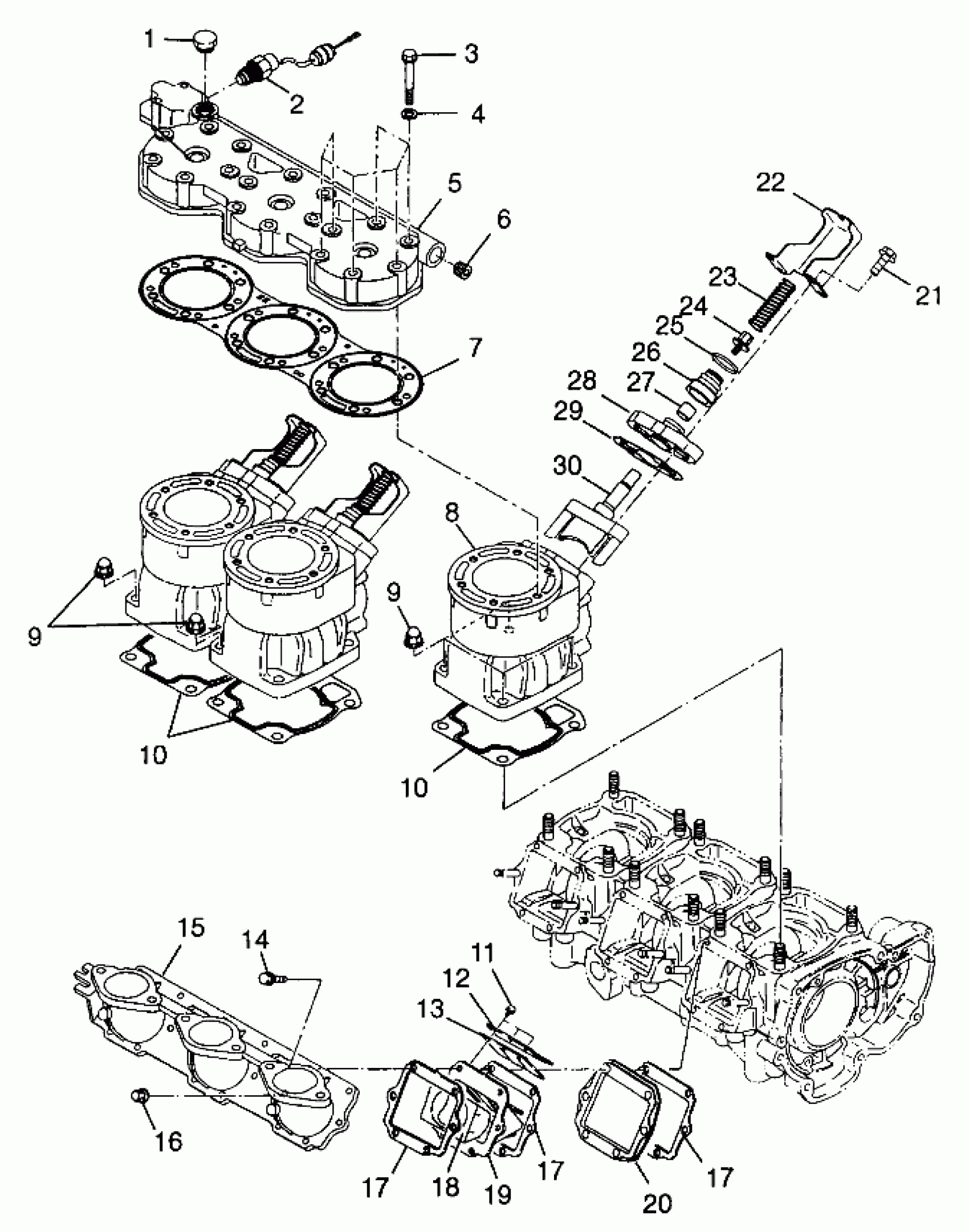

Polaris SLX PRO 785 - B984978 CYLINDER, HEAD & EXHAUST VALVES - B984978 (4945834583c003) Diagram

#

Description
Price

1

PLUG

3240219

$12.21

2

SWITCH,THERMO

3240223

Unavailable

3

BOLT,FLANGE

3240303

Unavailable

4

GASKET,ALUMINUM

3240304

Unavailable

5

HEAD,CYLINDER Substituted by 3240370

3240302

Unavailable

6

PLUG

3240306

Unavailable

7

GASKET,HEAD Substituted by 3240371

3240305

Unavailable

8

CYLINDER

3240301

Unavailable

9

NUT,FLANGE CAP

3240253

$6.35

9

NUT,FLANGE CAP

3240253

$6.35

10

GASKET, CYL.

3240249

Unavailable

10

GASKET, CYL.

3240249

Unavailable

11

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

12

Stopper

3240065

Unavailable

13

VALVE, REED(10)

3240064

Unavailable

14

BOLT

3240255

$3.33

15

PIPE,INTAKE

3240307

$710.88

16

NUT,FLANGE CAP

3240256

$3.97

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

18

STUFFER

3240310

Unavailable

19

REEDVALVE ASM. (Incl. 11-13)

3240308

Unavailable

20

SPACER,REED VALVE Substituted by 3240257

3240309

$26.19

21

BOLT,FLANGE

3240318

$1.59

22

BRACKET,ADJUSTER

3240314

Unavailable

23

SPRING

3240319

Unavailable

24

BOLT,WIRE END

3240312

Unavailable

25

CLAMP, HOSE

3240028

Unavailable

26

BOOT

3240315

Unavailable

27

BUSH

3240317

Unavailable

28

COVER,VALVE * (Incl. 27)

3240316

$145.60

29

GASKET,VALVE COVER

3240313

Unavailable

30

VALVE,EXHAUST

3240349

$119.05
