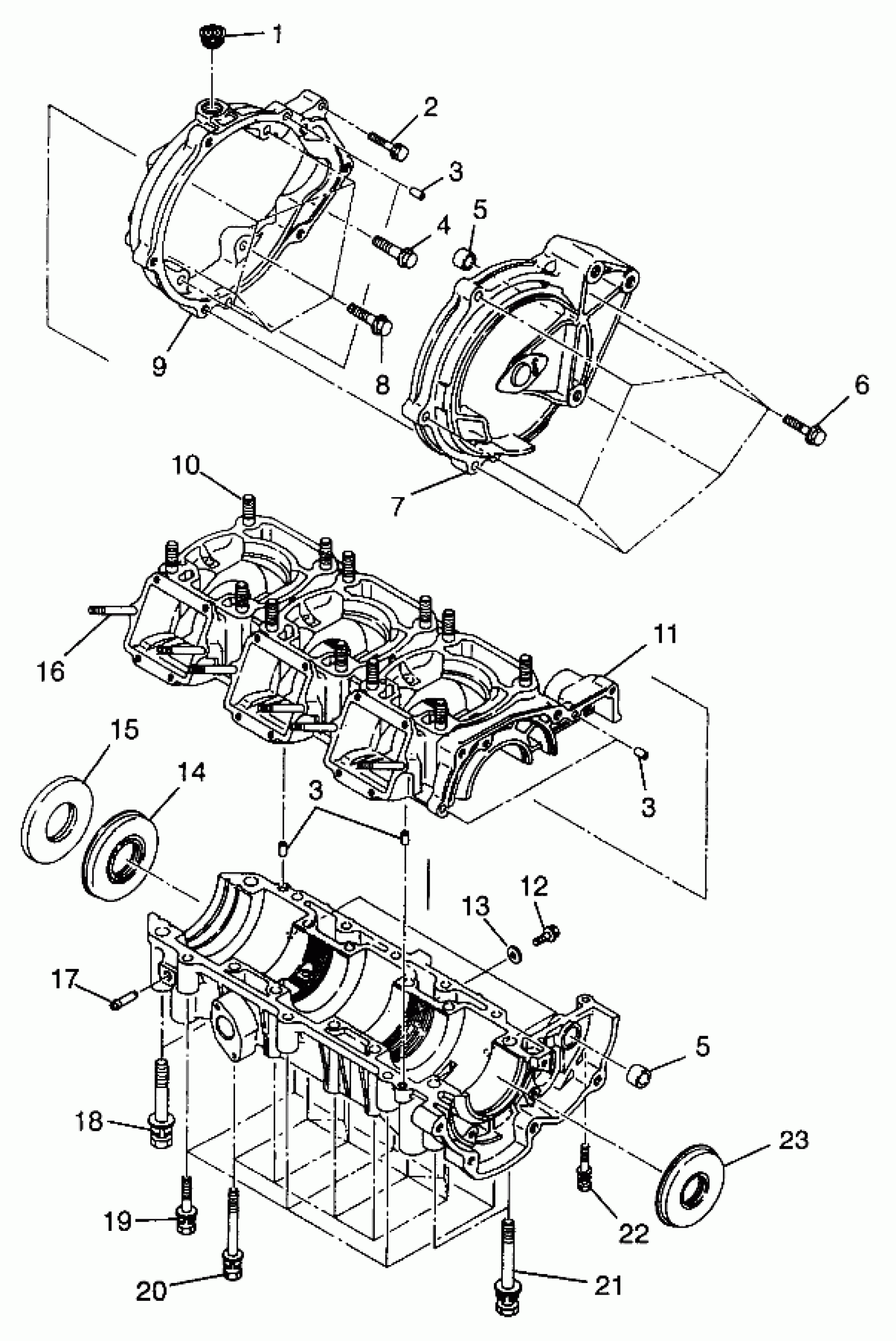

Polaris SLX PRO 785 - B984978 CRANKCASE - I984978 (4945834583c002) Diagram

#

Description
Price

1

PLUG

3240046

Unavailable

2

BOLT, FLANGE

3240047

$2.54

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

BOLT, FLANGE

3240048

$3.33

5

BUSHING, STARTER

3083669

Unavailable

5

BUSHING, STARTER

3083669

Unavailable

6

BOLT, FLANGE

3240285

$3.15

7

COVER, MAG Substituted by 3240221 (Incl. 5)

3240300

Unavailable

8

Bolt, Flange

3084134

Unavailable

9

CRANKCASE 3 (Incl. 3)

3240299

$139.68

10

STUD

3240032

$11.11

11

CRANKCASE ASM (Incl. 3,5,10,11,16-22)

3240297

$760.71

12

BOLT, FLANGE(10)

3240040

$0.39

13

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

14

SEAL, OIL (PTO Inside)

3240042

Unavailable

15

SEAL, OIL (PTO Outside)

3240043

Unavailable

16

STUD

3240298

Unavailable

17

PIPE, PULSE

3083798

$9.52

18

BOLT&WASHER ASM.

3240035

$7.29

19

BOLT&WASHER ASM.

3240038

$4.37

20

BOLT&WASHER ASM.

3240037

Unavailable

21

BOLT&WASHER ASM.

3240036

Unavailable

22

BOLT&WASHER ASM.

3240039

$2.38

23

SEAL, OIL (MAG Side)

3240041

Unavailable
