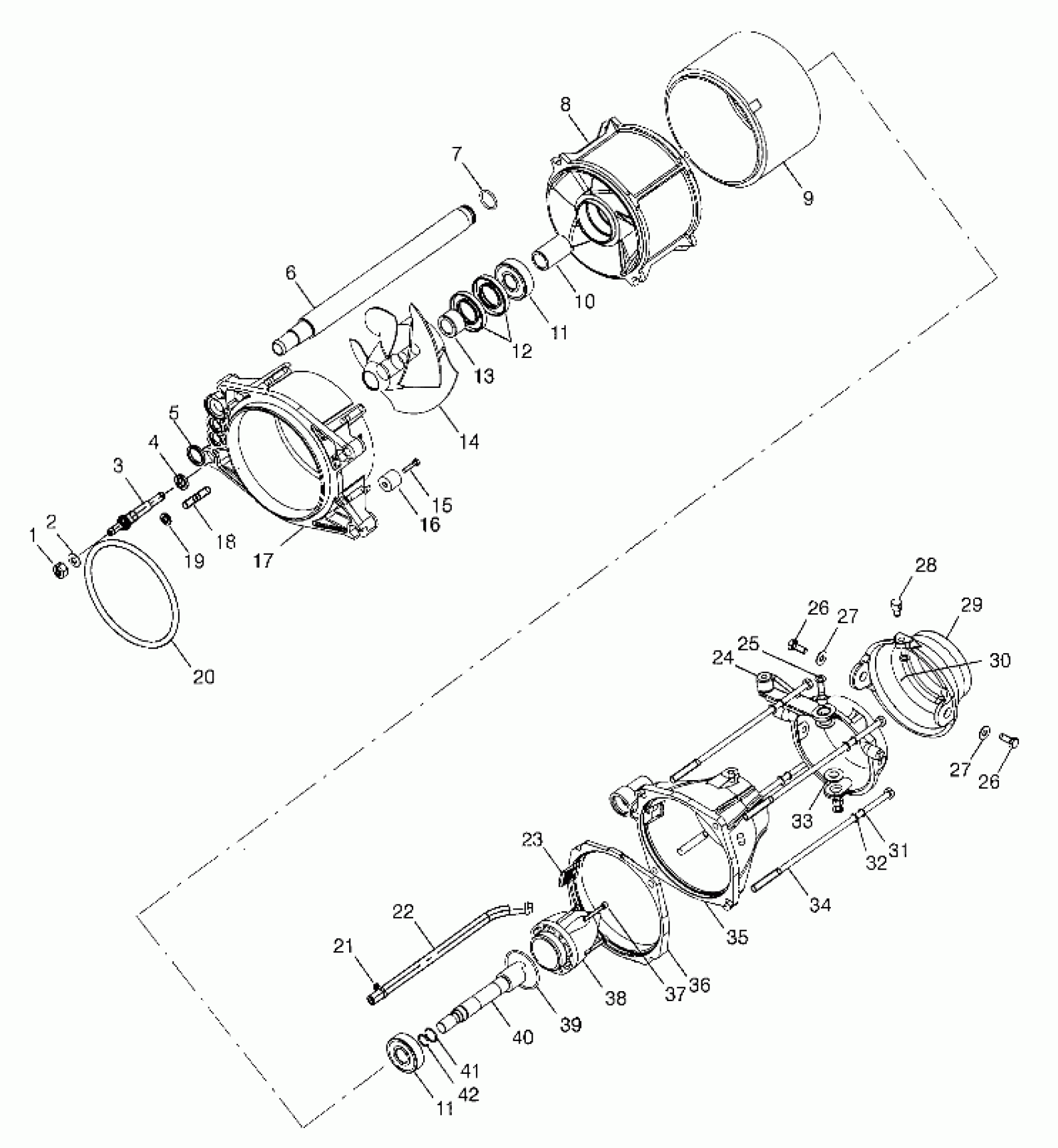

Polaris SLX PRO 785 - B974978 PROPULSION - B974978 (4941254125b003) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

Washer

7555966

$2.62

3

PIPE,WATER BILGE

5020835

$49.59

4

SEAL,SIPHON TUBE

5411016

Unavailable

5

SEAL,WATER PIPE

5411107

Unavailable

6

PIPE,WATER,ENG.,RESTRICTED Substituted by 5432269

5131545

$30.71

7

O RING,(10)

5410735

$0.79

8

STATOR,PUMP,HI-PERF. Substituted by 5130983

5131726

Unavailable

9

EXTENSION,PUMP

5131196

$204.99

10

Spacer

5010294

Unavailable

11

Bearing

3514008

Unavailable

11

Bearing

3514008

Unavailable

12

SEAL,BRG,STATOR

3610043

Unavailable

13

Spacer, Impeller

5010295

Unavailable

14

IMPELLER,12-17DEG,SWIRL,3BLADE

5131457

$374.99

15

SCREW(10)

7522019

$0.95

16

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

17

HOUSING,PUMP,W/RING Substituted by 2873081

5131815

Unavailable

18

STUD,MTG,PUMP

5020877

$4.37

19

WASHER,PUMPSTUD,SEAL

7555941

$7.14

20

O-RING,PUMP HSG/HULL

5410652

Unavailable

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

HOSE,WATER

8450054-100

Unavailable

23

SCREEN,ENG.INLET

5431523

Unavailable

24

NOZZLE,STRG.REVERSE

5130960

Unavailable

25

BOLT, S.S.(10)

7515366

Unavailable

26

BOLT, S.S.(10)

7515361

$2.19

26

BOLT, S.S.(10)

7515361

$2.19

27

WASHER,FLAT,S.S.(10)

7555874

$2.38

27

WASHER,FLAT,S.S.(10)

7555874

$2.38

28

SWIVEL,ROD END

5131463

Unavailable

29

Nozzle, Trim (See Pg. B5 Ref. 17)

----

Unavailable

30

PIN, COTTER(10)

7661010

$1.19

31

WASHER, LOCK, S.S.(10)

7552610

Unavailable

32

WASHER, FLAT, S.S.,(10)

7555835

$0.69

33

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

34

Bolt

7515389

Unavailable

35

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

36

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841

5630662

Unavailable

37

SCREW(10)

7512064

Unavailable

38

Cone, Pump

5431519

Unavailable

39

O-RING(10)

5410819

$0.79

40

SHAFT, STUB Substituted by 5132674

5020697

$47.62

41

O-RING(10)

5410818

$0.79

42

O-RING,(10)

5410817

Unavailable
