- SLX PRO 785 - B974978
HULL and BODY - B974978 (4941254125a005)

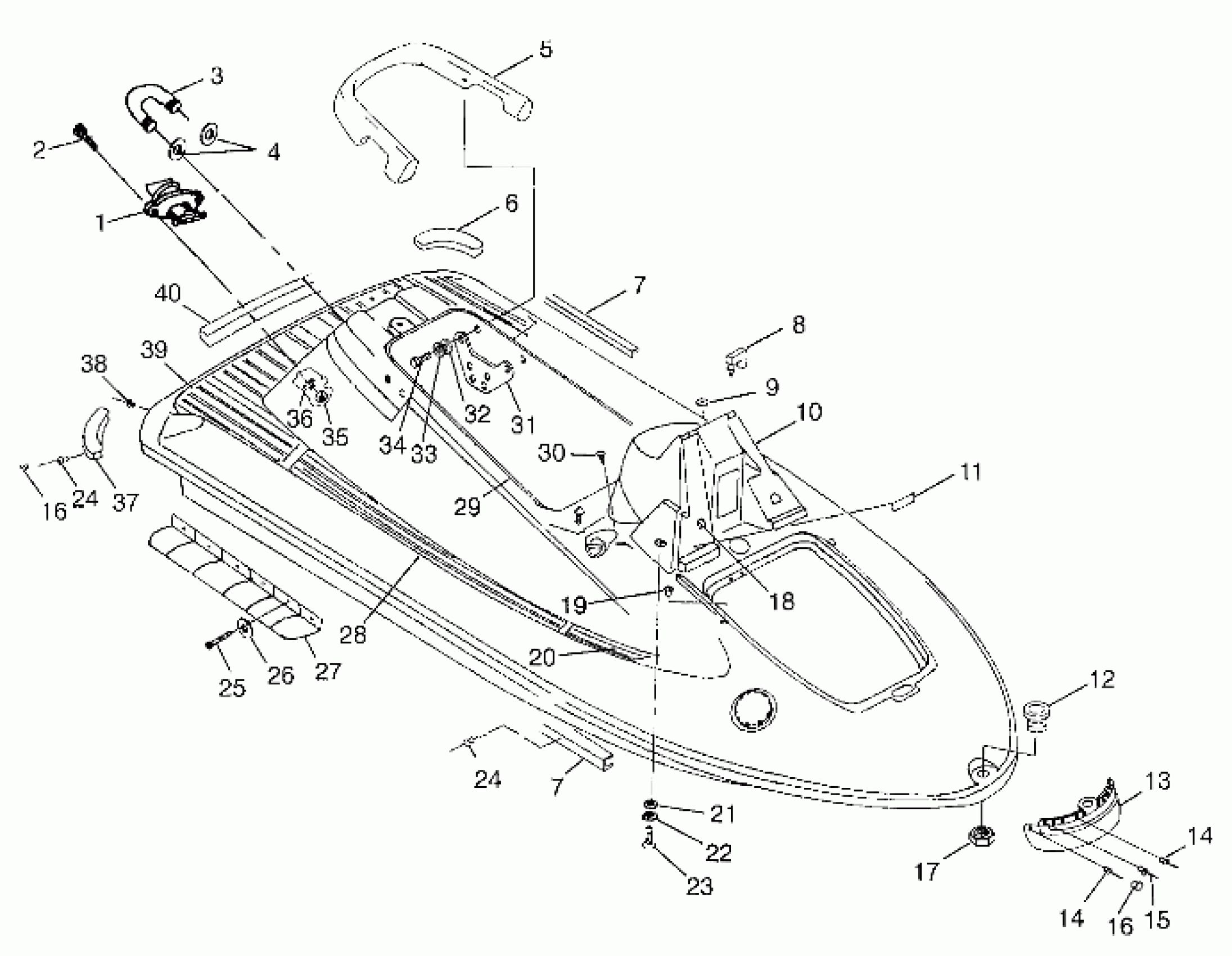

Polaris SLX PRO 785 - B974978 HULL and BODY - B974978 (4941254125a005) Diagram
#
1
PLUG ASM,BILGE
1060125
Unavailable
2
BOLT, SS.(10)
7512045
$4.99
3
U-BOLT ASM.
1060126
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
5
HANDLE,GRAB,BLK.
5431392-070
Unavailable
6
BUMPER,LH,CORNER,BLK
5432582-070
Unavailable
7
RAIL,RUB,SIDE,SMOOTH,BLK
5521413-070
Unavailable
7
RUBRAIL,RH,SMOOTH,BLK
5521416-070
Unavailable
7
RAIL,RUB,SIDE,SMOOTH,BLK
5521413-070
Unavailable
7
RUBRAIL,RH,SMOOTH,BLK
5521416-070
Unavailable
8
BUMPER,CORNER
5431740
Unavailable
9
GROMMET
5410720
$5.75
10
POD,STRG,NOTCH,BLK.MET. Substituted by 5433124-177
5432146-177
Unavailable
11
DECAL,RECOMMENDED OIL
7074959
Unavailable
12
GROMMET,BOW EYE,BLK.
5431950-070
Unavailable
13
BUMPER,FR,SHORT,W/BRA,BLK
5411386-070
Unavailable
14
RIVET,(50)
7621488
$3.99
14
RIVET,(50)
7621488
$3.99
15
RIVET(50)
7621462
$1.49
16
PLUG,(10)R.BUMP,BLK
5431994-070
Unavailable
16
PLUG,(10)R.BUMP,BLK
5431994-070
Unavailable
17
NUT,BOW EYE,BLK.
5431951-070
Unavailable
18
Grommet, Vent
5410682
Unavailable
19
BUMPER,DECK
5431741
Unavailable
20
PAD,F.F'WELL,GRV,BLK.
5811477-070
Unavailable
21
WASHER,S.S.(10)
7555891
Unavailable
22
WASHER, LOCK, S.S.(10)
7555838
Unavailable
23
SCREW,DRILOCK
7517439
Unavailable
24
RIVET(50)
7621480
Unavailable
24
RIVET(50)
7621480
Unavailable
25
SCREW,(10)
7515198
Unavailable
26
WASHER,(10)
5811440
$2.07
27
SPONSON,LH,BLK.
5432467-070
Unavailable
27
SPONSON,RH,BLK.
5432468-070
Unavailable
28
PAD,CTR.F'WELL,GRV,BLK
5811478-070
Unavailable
29
SEAL, SEAT
5521371
Unavailable
30
CLIP, XMASTREE(10)
7080514
Unavailable
31
BRKT,VALVE ACT.SS,FLAT (See Pg. C10 For Details)
5242318
Unavailable
32
WASHER, LOCK, S.S.(10)
7552610
Unavailable
33
WASHER, FLAT, S.S.(10)
7555831
Unavailable
34
BOLT, S.S.(10)
7515357
Unavailable
35
WASHER, FLAT, S.S.(10)
7555837
Unavailable
36
NUT, HEX, S.S.(10)
7541931
$4.79
37
BUMPER,RH,CORNER,BLK
5432583-070
Unavailable
38
RIVET,(50)
7621492
Unavailable
39
PAD,R.F'WELL,W/O TOW,BLK
5811453-070
Unavailable
40
RAIL,RUB,R.SMOOTH,BLK
5521412-070
Unavailable
